Rockwood LV-WS Galvannealed Steel Windstorm Louver

Usually Ships: 20-30 Business Days

18-gauge galvanneal steel, 50% free airflow
For use with 1-3/4″ thick steel and wood doors
Approved for use in the State of Florida

Available Options:

Finish
Size	Clear

Quantity:

Rockwood LV-WS Windstorm Louver for 1-3/4″ Thick Doors, Galvannealed Steel

The LV-WS Windstorm Louver is for use with 1-3/4″ exterior doors and provides 50% free air flow. This model features steel blades that add stiffness and a burr-free exposed edge, as well as a steel mitered frame that provides a clean appearance and secures the grille assembly in place.

Free Flow Area: 50% free
18 gauge inverted “Y” blades add stiffness and a burr-free exposed edge
18 gauge steel mitered frame secures the grille assembly in place giving it a clean appearance
Counter-sunk mounting screw-holes
Fasteners: #8 FH SMS (inside), #8 Threaded Sleeve (outside)

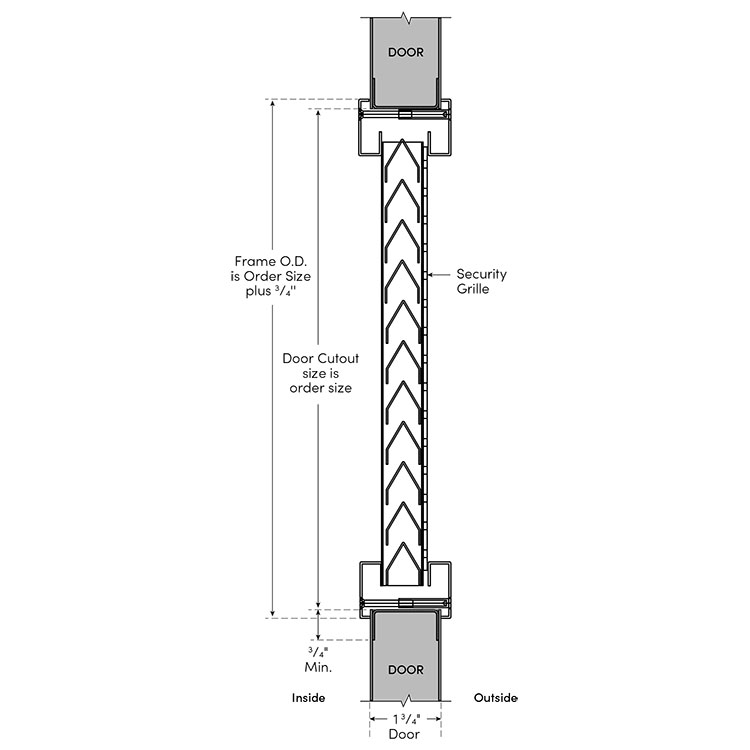

Order size is equal to door cutout size

Certifications

UL Certified. Successfully tested in accordance with ASTM E1886, E1996,TAS 201
Large Missile Impact, 350 Ft. Lbs., +/- 70 psf and ASTM E330, TAS 202,TAS 203, +/- 70 psf
Assembly Approved for Use in the State of Florida, Including the High-Velocity Hurricane Zone (HVHZ)

Brand	Rockwood
Finishes	Beige Powder Coat, BSP Black Suede Powder Coat, Dark Bronze Duranodic Powder Coat, Gray Primer Powder Coat, WSP White Suede Powder Coat
Size	12" x 12", 18" x 12", 18" x 18", 24" x 12", 24" x 18", 24" x 24", 24" x 60", 24" x 64"
Material	Galvannealed Steel
Door Thickness	1-3/4"
Free Flow Area	50% Free Area
Fasteners	#8 FH SMS (inside), #8 Threaded Sleeve (outside)
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
