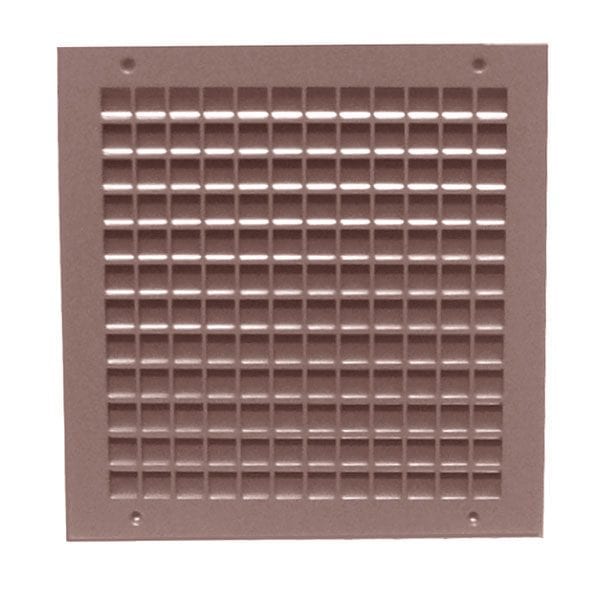

Air Louvers 1500AHR Hurricane-Rated Louver with Inverted Y Blades

Usually Ships: 3-5 Days
  • 18-Gauge Steel Frame w/ 12-Gauge Security Grille
  • Severe Windstorm Approved Louver
  • Standard Electro-Galvanized Finish for Exterior Use

Available Options:

Clear

Inverted “Y” Blades with Security Grille Meets up to 350 ft lb Impact Rating for Severe Windstorm Rating. Includes Weatherproof Electro-Galvanized Finish for Exterior Applications.

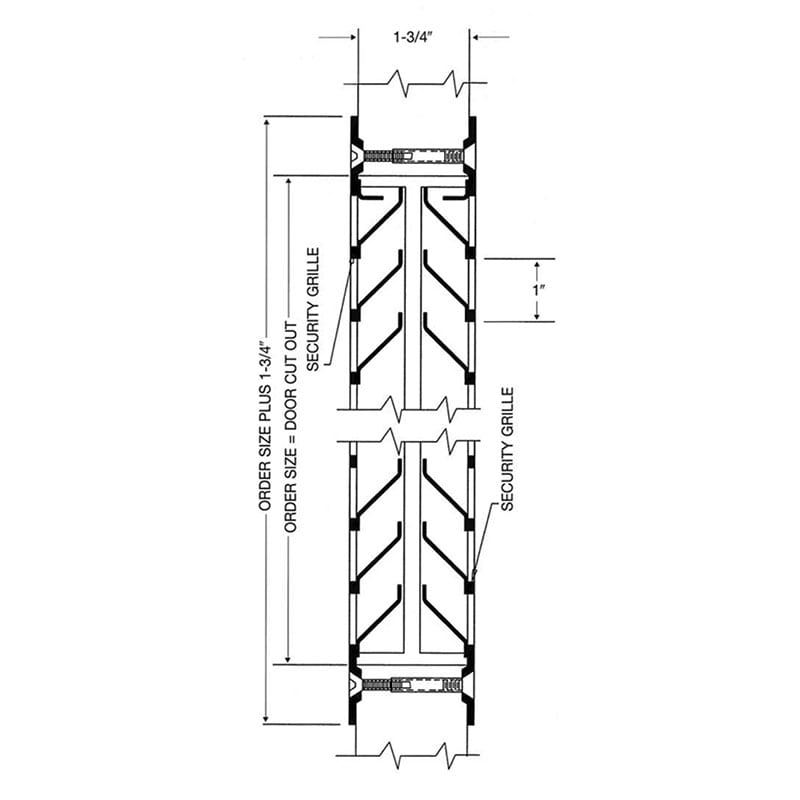

  • 2 rows of inverted, split “Y” blades with 1″ blade spacing are attached to welded frame with interlocking construction
  • Non-Vision Design
  • Security grille is welded to the interior and exterior of louver with 13/16″ square openings 1″ on center, Thru-bolted to door
  • Designed for use with 1-3/4″ doors only
  • Order size is equal to door cutout size
  • Hurricane rated vision lites and Hurricane rated steel doors available





Severe Windstorm Approved Louver Tested in Accordance With:

  • Missile Impact: TAS 201, ASTM E1996 (impact 350 ft lb, Missile Level D, DP Rating 60 psf)
  • Cyclic Wind Pressure Loading: TAS 203, ASTM E1886
  • Air Infiltration, Water Resistance, Structural Loading, Uniform Static Air Pressure, Forced Entry: TAS 202, ASTM E283, ASTM E330, ASTM E331, FBC 2411 3.2.1
  • Windstorm Resistance, Door Components: ANSI A250.13
  • Certified by Warnock-Hersey
  • Florida Building Code Approval File #FL13341
  • Florida Building Code 2017 File # FL13341-R3

Custom features at additional cost and lead time (3-5 Weeks): Custom sizes up to 24″ x 64″, Special powder coat colors (White, Black, Beige, Red, Silver).

Please call 1-844-TRUDOOR to order custom louvers

Brand

Size

24" x 24", 24" x 64"

Finishes

Standard Electro-Galvanized base with Mineral Bronze powder coat finish

Door Thickness

1-3/4"

Construction

18 Gauge Steel Frame w/ 12 Gauge Security Grille

Free Flow Area

40% Free Area

Fasteners

#8-32 Phillips head thu-bolts with blank head one side

Florida Building Code Approval File

#FL13341, # FL13341-R3

Warranty

5 Year

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
