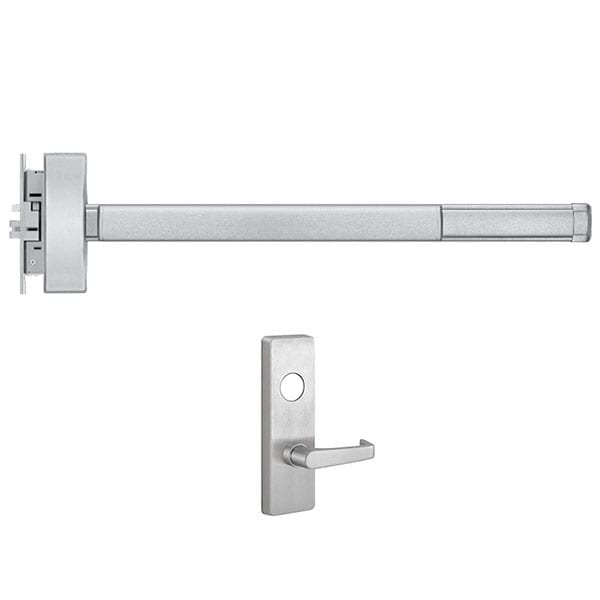

Precision 2308-M4908A Apex Mortise Exit Device with Lever

Usually Ships: 10-20 Days
  • Heavy Duty – Grade-1 – ANSI/BHMA Certified – Made in USA
  • Designed for High Use and Abuse Applications
  • Includes M4908A Lever Trim (Key Locks & Unlocks Lever)

Available Options:

Clear

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering. The chassis is constructed from investment cast steel and the universal mounting holes provide an easier retrofit installation. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

  • 630 Stainless Steel Finish
  • Covers ANSI A115.1 (Type 86) Mortise Lock preparation
  • Deadlocking Latchbolt Standard
  • Touchbar Clearance – Can accommodate doors with vision lites or where the lite frames or moldings project up to 1/4 beyond the face of the door
  • Quiet Operation – Sound dampeners reduce the noise associated with exit device operation on the depression and return stroke of the touchpad
  • Furnished standard for 1-3/4” thick, 3’-0” wide opening

M4908A Lever Trim

  • ANSI Function: 08 (Key locks/unlocks lever)
  • Escutcheon plate size: 2-7/8″ x 9-11/16″ x 7/16″
  • Projection: 2-3/4″
  • Requires mortise cylinder (sold separately)

made-in-usa

Brand

Finishes

630 Stainless Steel

Length

3'0" (2'7" to 3'0" Doors)

ANSI Grade

ANSI Grade 1

Usage

Heavy Duty

Trim

M4908 Lever Trim

Cylinder

1-1/4" Mortise Cylinder (sold separately)

Handing

Handed (LHR – Left Hand Reverse or RHR – Right Hand Reverse)

Dogging Feature

Half turn hex dogging standard

Strike

S982, handed curved lip strike furnished standard

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Fire Rating

Non-Fire-Rated

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
