Detex Advantex 30 Series Mortise Lock Exit Device

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI/BHMA Grade-1 Certified
  • For high-use, high-abuse environments
  • Exit only (trim sold separately)

Available Options:

Clear

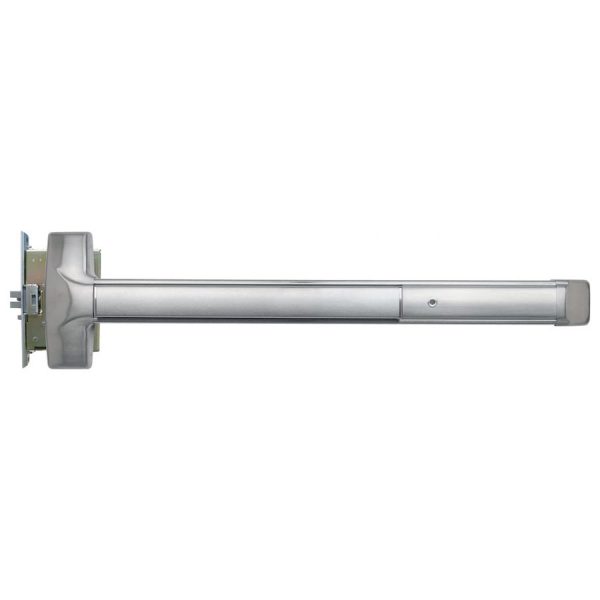

Detex Advantex 30 Series Wide Stile Mortise Exit Device, Hex Dogging, 90 Non-Handed Curved Lip Strike

The 30 Series mortise lock exit device is super-heavy-duty panic and fire exit hardware for use on all types of single and double doors. The patented mounting plate and strike locator system ensures the easiest and most accurate installation of panic hardware available.

  • Heavy-duty angled end cap deflects damage away from device
  • Tough and durable design for years of trouble-free service in high-use, high-abuse environments
  • Anti-friction, deadlocking, latch bolt
  • All exposed surfaces are finished over stainless steel with PVD, an environmentally-friendly finishing process
  • Non-handed, field sizeable
  • Outside trims are easily changed or re-keyed without removing device from door
  • Fast and easy installation saves time and money

Brand

Finishes

630 Satin Stainless Steel, SP313 (695) Dark Bronze, SPBLK (693) Black

ANSI/BHMA Standard

ANSI/BHMA certified A156.3

Usage

Heavy Duty

Fire Rating

Non-Fire-Rated

Latchbolt

3/4" Projection Stainless Steel latch bolt – Anti-friction, deadlocking

Strike

90 Curved Lip ANSI Strike

Handing

Non-Handed

Stile Type

Wide (Standard)

Minimum Stile Width

4-3/4"

Dogging Feature

Half turn hex dogging standard

Door Thickness

1-3/4" to 2-1/4"

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
