Precision 2103-1703A Apex Rim Exit Device with Nightlatch Pull

$1,055.00

This item ships FREE! Usually Ships: 5-10 Days
  • Heavy Duty – Grade-1 – ANSI/BHMA Certified – Made in USA
  • Designed for High Use and Abuse Applications
  • 3 ft., 630 Finish, Includes 1703A Pull (Night Latch – Key Retracts Latchbolt)

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering. The chassis is constructed from investment cast steel and the universal mounting holes provide an easier retrofit installation. All Apex 2000 Series Exit Devices are UL listed for panic  hardware and are certified to ANSI A156.3 Grade 1.

  • 630 Stainless Steel Finish
  • Deadlocking Latchbolt Standard
  • Touchbar Clearance – Can accommodate doors with vision lites or where the lite frames or moldings project up to 1/4 beyond the face of the door
  • Quiet Operation – Sound dampeners reduce the noise associated with exit device operation on the depression and return stroke of the touchpad
  • Stock Sizes: 3′ (2’7″ to 3’0″ Doors)

1703A Night Latch Pull Trim – Furnished with wrought plates and extruded or cast solid grips

  • ANSI Function: 03 – (Entrance by lever when latchbolt is retracted by key – Key is removable only when it’s locked)

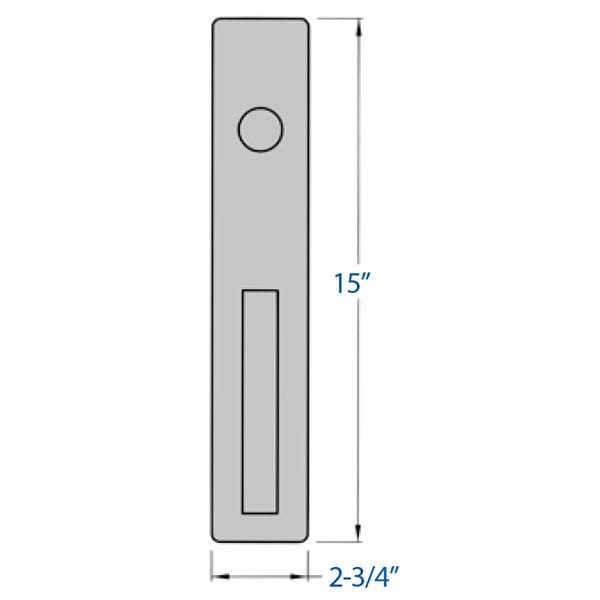

  • Escutcheon plate size: 15″ x 2-3/4″
  • Projection: 2-1/8″
  • Pull center to center: 6″
  • Rim cylinder must be ordered separately

made-in-usa

Brand

Length

3'0" (2'7" to 3'0" Doors)

ANSI Grade

ANSI Grade 1

Usage

Heavy Duty

Fire Rating

Non-Fire-Rated

Trim

1703A Night Latch Pull

Cylinder

1-1/8" Rim Cylinder (Sold Separately)

Stile Type

Wide (Standard)

Handing

Non Handed – Completely Reversible

Dogging Feature

Half turn hex dogging standard

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Strike

S300, stainless steel, black powder coated

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Finishes

630 Stainless Steel

2100 Installation Instructions 1700 Trim Installation
