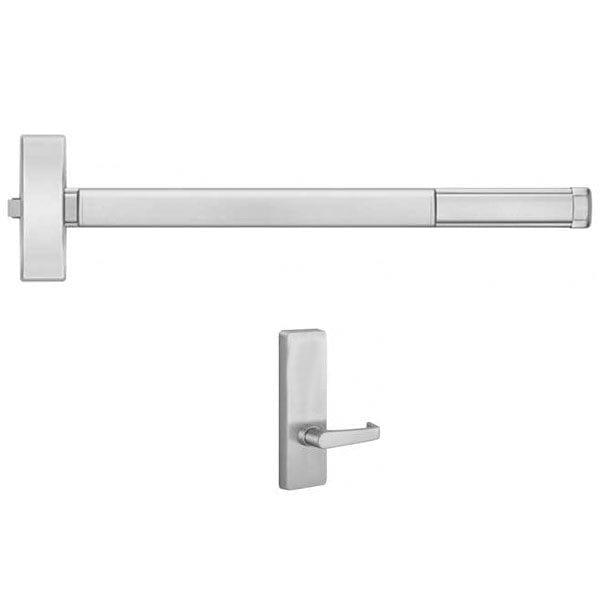

Precision 2114-4914A Apex Rim Exit Device with Passage Lever

Usually Ships: 5-10 Days
  • Heavy Duty – Grade-1 – ANSI/BHMA Certified – Made in USA
  • Designed for High Use and Abuse Applications
  • Includes 4914A Lever Trim (lever always unlocked and operable)

Available Options:

Clear

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering. The chassis is constructed from investment cast steel and the universal mounting holes provide an easier retrofit installation. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

  • 630 Stainless Steel Finish
  • Deadlocking Latchbolt Standard
  • Touchbar Clearance – Can accommodate doors with vision lites or where the lite frames or moldings project up to 1/4 beyond the face of the door
  • Quiet Operation – Sound dampeners reduce the noise associated with exit device operation on the depression and return stroke of the touchpad
  • FL2114 Model UL Listed (3 Hour Fire-rated)
  • Stock Sizes: 3′ and 4′ – Cut to size in field

4914A Passage Lever Trim – A heavy-duty lever trim designed to withstand abuse and vandalism. Composed of extra strength shock-absorbing “overload” springs and heavy-duty investment cast stainless steel internal components. Lever returns to the “home” position eliminating the need to reset the lever.

  • ANSI Function: 14 – Lever always operable (no cylinder)
  • Escutcheon plate size: 2-7/8″ x 9-11/16″ x 7/16″
  • Projection: 2-3/4″
  • Field reversible – ships as RHR

made-in-usa

Brand

Length

3'0" (2'7" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Model

2114-4914A – Non-Fire-Rated (w/ Dogging), FL2114-4914A – Fire-Rated (No Dogging)

ANSI Grade

ANSI Grade 1

Usage

Heavy Duty

Fire Rating

2114: Non-Fire-Rated – FL2114: UL Listed Fire-Rated (3 Hours)

Trim

4914A Passage Lever Trim

Stile Type

Wide (Standard)

Handing

Supplied RHR – Lever is reversible

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Strike

S300, stainless steel, black powder coated

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Finishes

630 Stainless Steel

2100 Installation Instructions 4900 Trim Installation
