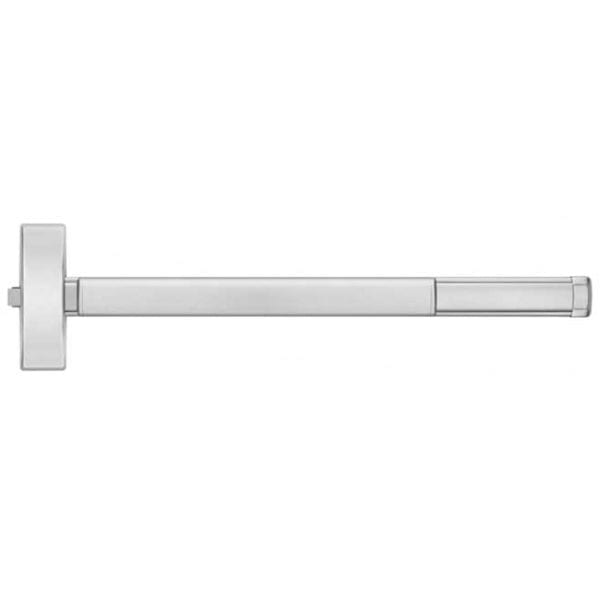

Precision FL2100 (FL2103) Fire-Rated Apex Rim Panic Exit Device, Exit Only

Usually Ships: 5-10 Days
  • Heavy Duty – Grade-1 – ANSI/BHMA Certified – Made in USA
  • Fire Exit Hardware, UL/cUL 10C 3-hour Fire Listed
  • Exit Only – Non-Handed – 630 Stainless Steel Finish

Available Options:

Clear

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering. The chassis is constructed from investment cast steel and the universal mounting holes provide an easier retrofit installation. All Apex 2000 Series Exit Devices are UL listed for panic hardware and are certified to ANSI A156.3 Grade 1.

  • FL2100 Series Model: FL2101,FL2102,FL2103,FL2105,FL2114,FL2115 – Preconfigured to accommodate 01, 02, and 03 functions
  • All 2100 Series exit devices can be field converted to accommodate the following functions: 01, 02, 03, 05, 08, 14, and 15
  • FL2103 Exit Only (Outside Trim Sold Separately)
  • UL/cUL 10C 3-hour Fire Listed
  • 630 Stainless Steel Finish
  • Deadlocking Latchbolt Standard
  • Touchbar Clearance – Can accommodate doors with vision lites or where the lite frames or moldings project up to 1/4 beyond the face of the door
  • Quiet Operation – Sound dampeners reduce the noise associated with exit device operation on the depression and return stroke of the touchpad
  • Stock Sizes: 3′ and 4′ – Cut to size in field

Brand

Finishes

630 Stainless Steel

Length

3'0" (2'7" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

ANSI Grade

ANSI Grade 1

Usage

Heavy Duty

Fire Rating

UL and cUL Listed – up to 3 Hours

Trim

None – Exit Only (Outside Trim Sold Separately)

Stile Type

Wide (Standard)

Handing

Non Handed – Completely Reversible

Dogging Feature

None

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Strike

S300, stainless steel, black powder coated

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

2100 Installation Instructions
