Product Overview
Pemko PEMKOSTCSET-2D Acoustical Seal Set for Frames and Doors

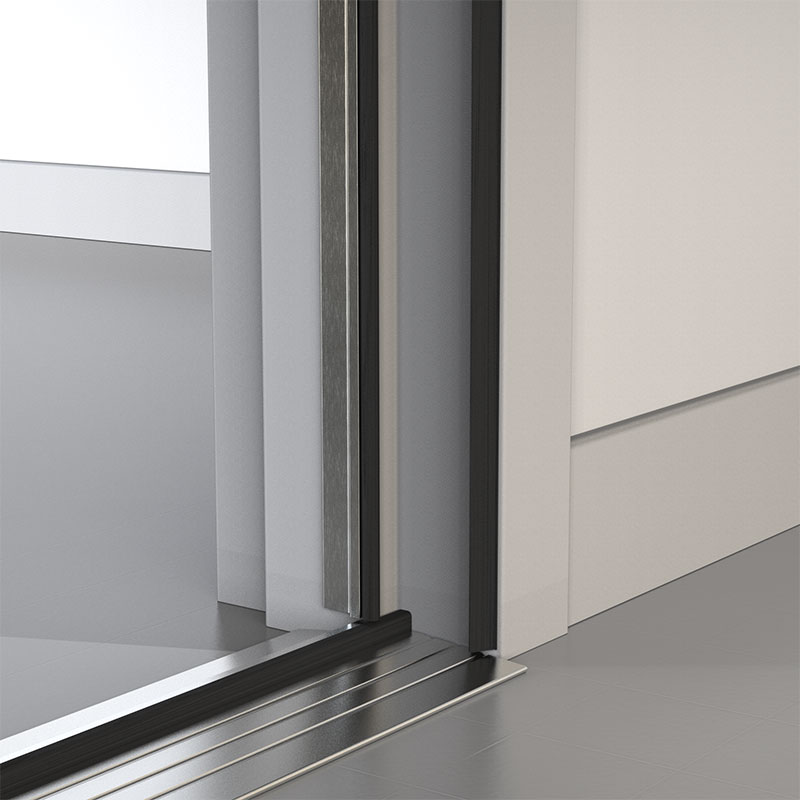

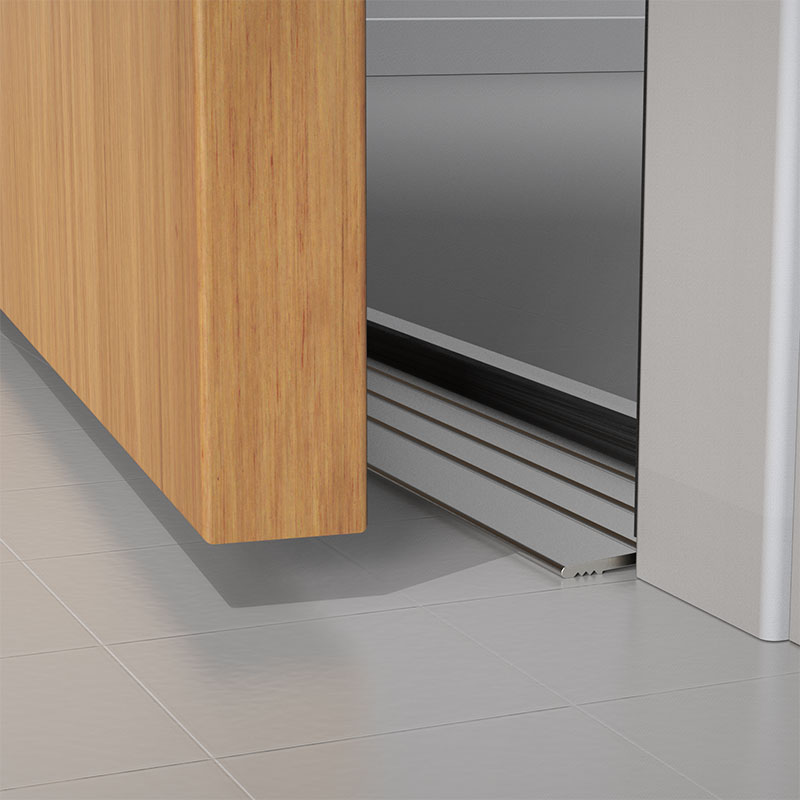

This kit combines our 303AS screw-applied gasket with silicone bulb, S44 adhesive-back style gasket, 2008APK acoustic threshold with integrated stop to provide optimal performance. The 2008APK threshold provides a continuous seal across the width of the opening and seals against the face of the door to aid with dampening and absorption of sound waves.

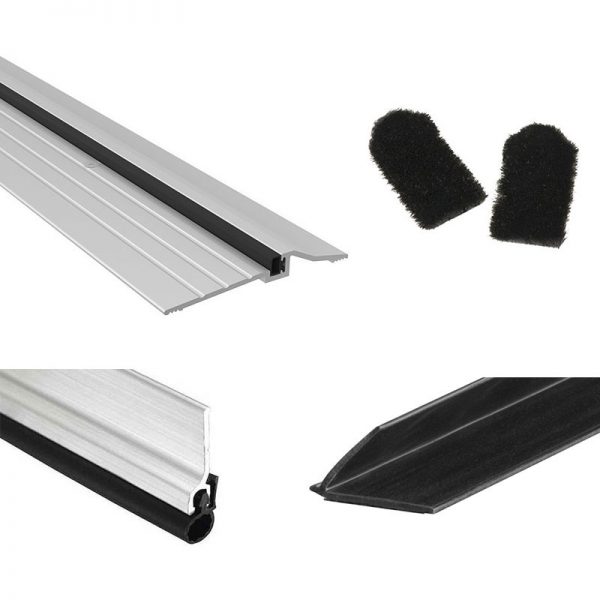

Kit Includes:
- ACP112BL: Black Pile
- 2008APK: A – Mill Finish Aluminum Aluminum with Black PemkoPrene insert
- 303AS: A – Mill Finish Aluminum Aluminum with Black Silicone insert
- S44BL: BL – Black Silicone (One Row)
This kit offers the following demonstrated performance
Doors with inoperable STC Ratings of: | Decible (dB) drop from Operable STC Rating |
Under 42 | 0 dB |
43 to 45 | -1 dB |
46 to 48 | -1 dB |
49 to 53 | -2 dB |
54 to 58 | -3 dB |
Features
- Superior acoustic performance
- Lab-tested sealing solutions
- Meets ANSI Standard S12.60-2002
- Use with any STC Rated Door
- Gasketing and inserts have achieved GREENGUARD Gold Certification
Ratings
- Â Air Infiltration Tested – Air infiltration tested in accordance with ASTM E283-04.
- Â Sound Tested – Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria.
- Â BHMA Certified
- Â Smoke Tested – UL1784
- Â Fire Rated – UL10C – Positive Pressure
- Â Underwriters Laboratory 4L10
- Â GREENGUARD Gold Certified
Brand | |
---|---|
Size | 36" x 80", 36" x 84", 36" x 96", 48" x 80", 48" x 84", 48" x 96", 72" x 84", 72" x 96", 96" x 96" |
