Pemko PEMKOSTCSET-5A Acoustical Door Seal Set

Usually Ships: 10-15 Business Days
  • Complete STC solution in a kit
  • Includes ACP112BL, 2006STC-A, S773BL, and S44BL
  • Sound tested, fire-rated, and smoke tested

Available Options:

Clear

Pemko PEMKOSTCSET-5A Acoustical Seal Set for Frames and Doors

This kit combines our S773 and S44 adhesive-back style gasket with our 2006STC acoustic threshold with integrated stop to provide optimal performance. The 2006STC threshold provides a continuous seal across the width of the opening and seals against the face of the door to aid with dampening and absorption of sound waves.

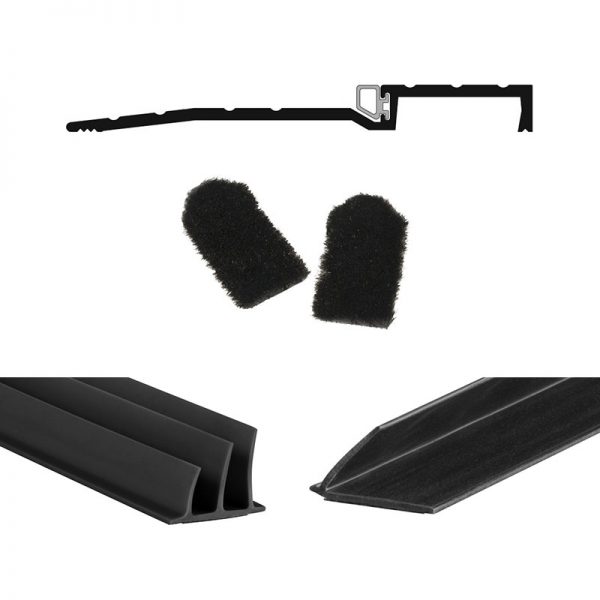

Kit Includes:

  • ACP112BL: Black Pile
  • 2006STC-A: A – Mill Finish Aluminum Aluminum with Black Thermo Seal insert
  • S773BL: BL – Black Silicone (One Row)
  • S44BL: BL – Black Silicone (One Row)

This kit offers the following demonstrated performance

Doors with inoperable STC Ratings of: Decible (dB) drop from Operable STC Rating
Under 42 0 dB
43 to 45 -1 dB
46 to 48 -1 dB

Features

  • Superior acoustic performance
  • Lab-tested sealing solutions
  • Meets ANSI Standard S12.60-2002
  • Use with any STC Rated Door
  • Gasketing and inserts have achieved GREENGUARD Gold Certification

Ratings

  •  Air Infiltration Tested – Air infiltration tested in accordance with ASTM E283-04.
  •  Sound Tested – Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria.
  •  BHMA Certified
  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified

STC

Brand

Size

36" x 80", 36" x 84", 36" x 96", 48" x 80", 48" x 84", 48" x 96", 72" x 84", 72" x 96", 96" x 96"
