Product Overview
Pemko PEMKOSTCSET-4D Acoustical Seal Set for Frames and Doors
This kit combines our 303AS screw-applied gasket with silicone bulb, S44 adhesive-back style gasket, and our 2009APK acoustic threshold with integrated stop to provide optimal performance. The 2009APK threshold provides a continuous seal across the width of the opening and seals against the bottom rail and the face of the door to aid with dampening and absorption of sound waves.

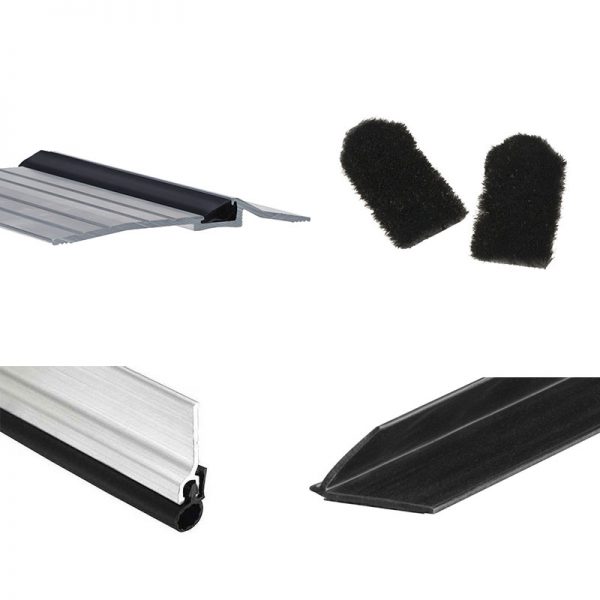

Kit Includes:
- ACP112BL: Black Pile
- 2009APK: A – Mill Finish Aluminum Aluminum with Black PemkoPrene insert
- 303AS: A – Mill Finish Aluminum Aluminum with Black Silicone insert
- S44BL: BL – Black Silicone (One Row)
This kit offers the following demonstrated performance
Doors with inoperable STC Ratings of: | Decible (dB) drop from Operable STC Rating |
Under 42 | 0 dB |
43 to 45 | 0 dB |
46 to 48 | -1 dB |
Features
- Superior acoustic performance
- Lab-tested sealing solutions
- Meets ANSI Standard S12.60-2002
- Use with any STC Rated Door
- Gasketing and inserts have achieved GREENGUARD Gold Certification
Ratings
- Â Air Infiltration Tested – Air infiltration tested in accordance with ASTM E283-04.
- Â Sound Tested – Tested to meet ASTM E 90-2009 Standard. Tested to meet ANSI Standard S12.60-2010, Acoustical Performance Criteria.
- Â BHMA Certified
- Â Smoke Tested – UL1784
- Â Fire Rated – UL10C – Positive Pressure
- Â Underwriters Laboratory 4L10
- Â GREENGUARD Gold Certified
Brand | |
---|---|
Size | 36" x 80", 36" x 84", 36" x 96", 48" x 80", 48" x 84", 48" x 96", 72" x 84", 72" x 96", 96" x 96" |
