Pemko EZgap XG10 Series Adhesive Backed Intumescent Gasket

Usually Ships: 5-10 Business Days
  • Suitable for use on gaps between 3/32″ – 1/4″
  • UL10C approved for 45-minute fire-rated wood doors
  • Helps bring fire doors back into compliance

Available Options:

Clear

Pemko EZgap XG10 Series Adhesive Backed Intumescent Gasket, UL10C Approved for 45 Minute Fire-Rated Wood Doors

The EZgapTM XG10 Series intumescant gasketing is a single piece, flexible solution for excessive gaps ranging from 3/32″ to 1/4″. The EZgap product attaches to the door frame with peel and stick adhesive with no additional hardware, and its small size makes it easy to transport and store.

  • Surface-applied intumescent gasket
  • Graphite and flexible elastomeric base material
  • Melts in the same temperature range as its flexible graphite intumescent core begin to expand
  • Excessive gap solution that fits irregular door gaps between 3/32″ – 1/4″
  • UL10C approved for 45-minute fire-rated wood doors

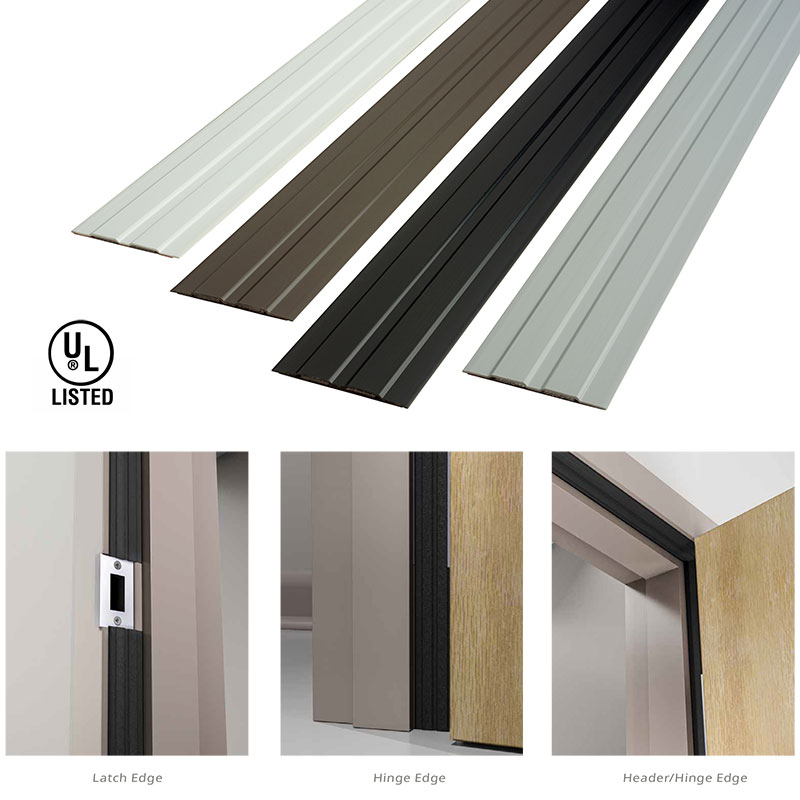

  • Ideal for independent use on latch edge, hinge edge, or header, or, as a full perimeter application
  • Supplied with self-adhesive tape for fast, easy installation
  • Can be cut to desired length in field with heavy scissors
  • Semi-rigid PVC casing
  • Packed in small box that is easy to transport and store
  • No metallic fasteners needed for installation
  • Good resistance to water and humidity
  • UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
Brand

Finishes

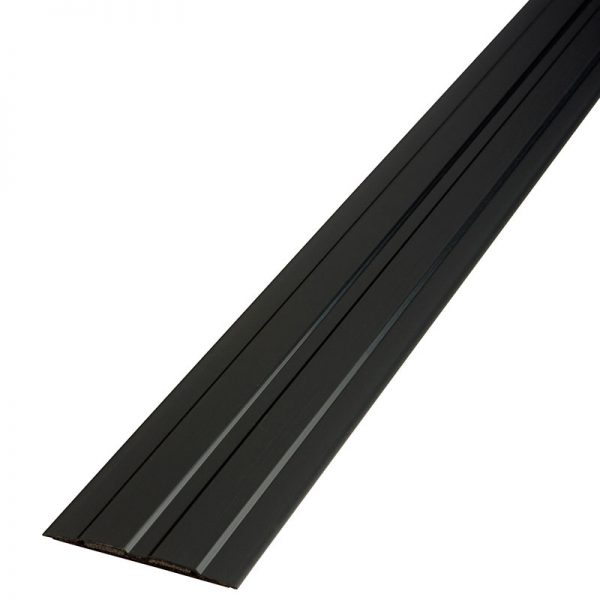

BR – Brown, BL – Black, GR – Gray, W – White

Roll Length

18' Roll, 50' Roll

Fire Rating

UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
