Pemko XG90KIT Perimeter Gasket with Stop Extender, Fire Door Excessive Gap Solution

Usually Ships: 10-15 Business Days

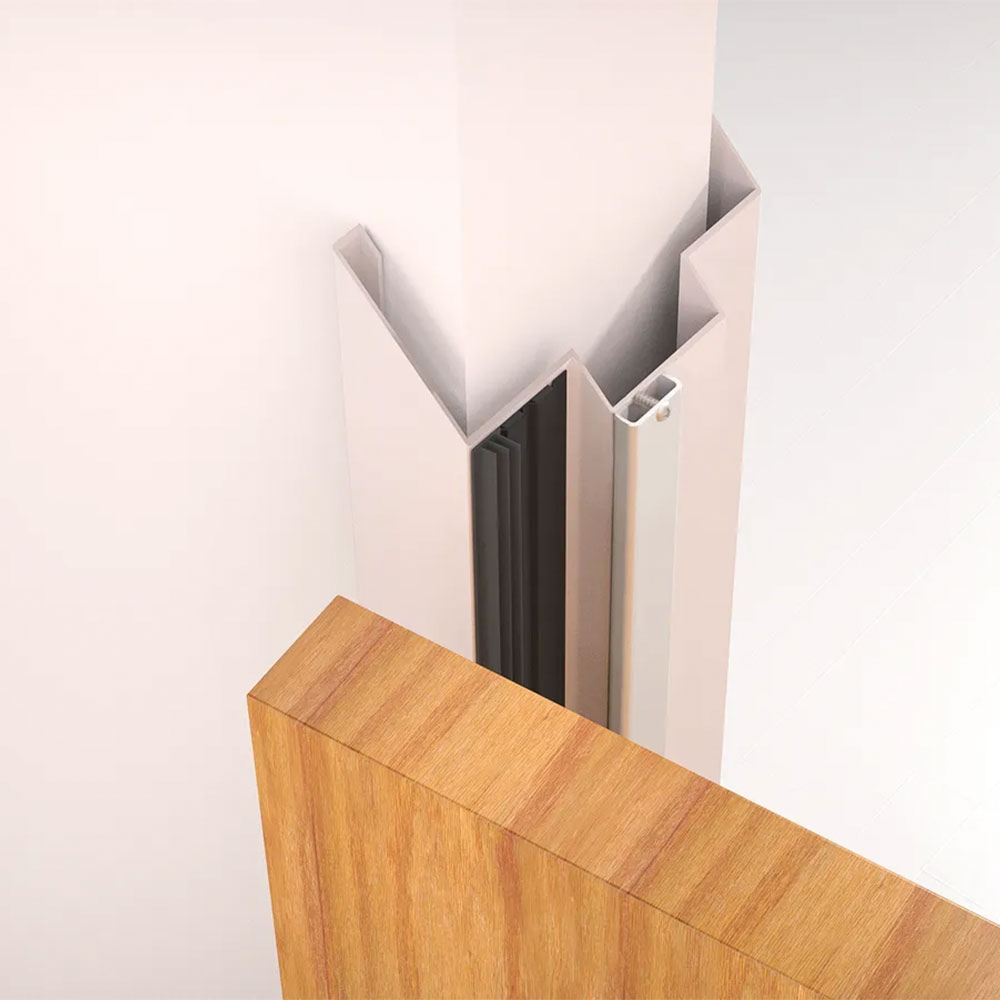

  • Applied to the door frame (head and jambs)
  • Can seal gaps around entire opening
  • Helps bring fire doors back into compliance

Available Options:

Clear

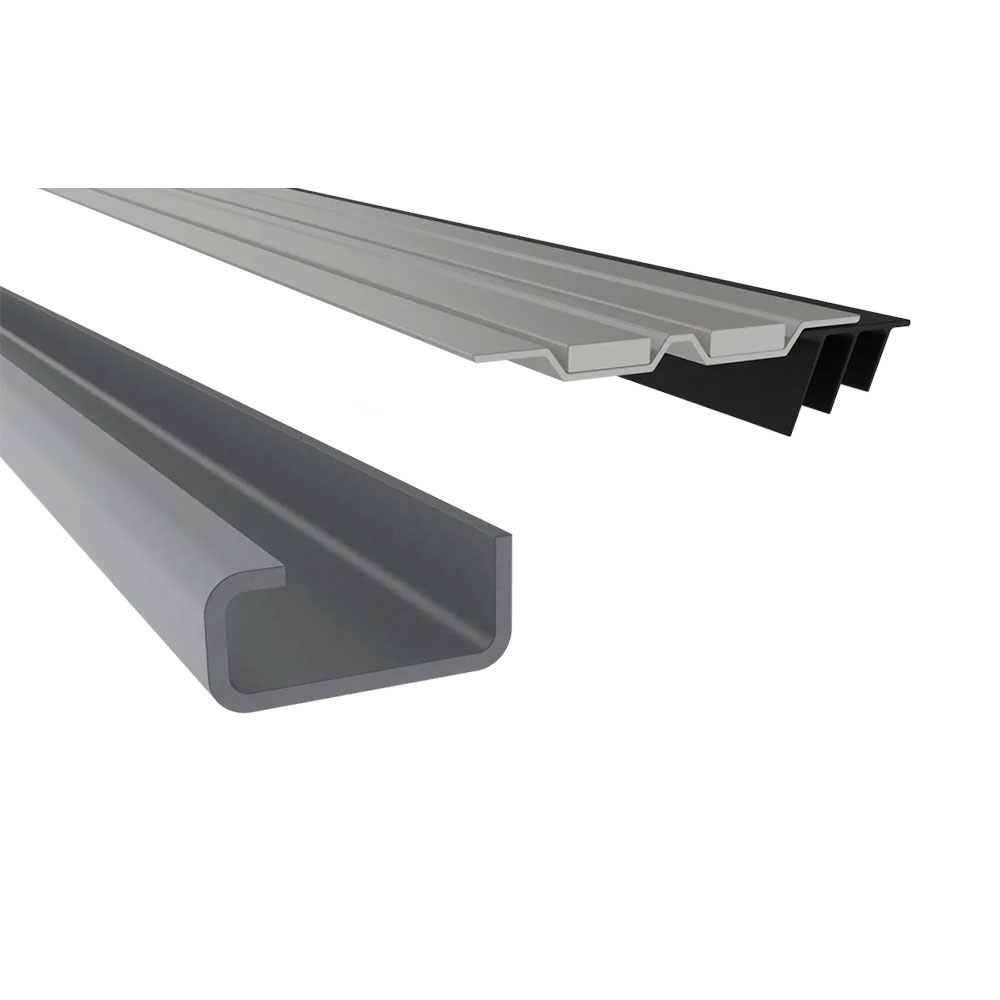

Pemko XG90KIT Perimeter Gasket Solution with Stop Extender

The XG90KIT consists of the HSS20XGxS773 Combination Intumescent and Silicone Gasket and the XG900SP Stop Extender. This kit is UL classified for 90 minutes and brings fire-rated doors with excessive vertical and head gaps back into spec.

  • Brings fire doors into compliance with code
  • Eliminates costly expense of replacing doors
  • Quick and easy resolution to fire door inspection issues
  • HSS20XG is a PVC-encased, high performing intumescent with adhesive backing
  • S773 is Pemko’s triple-fin, high-temperature, silicone fire gasket with adhesive backing
  • XG900SP 16ga galvannealed steel stop extender
  • UL Classified for use on openings with gaps in excess of those outlined in NFPA 80
  • Rated up to 90-minutes and suitable for use on steel composite, hollow metal doors, wood and plastic-covered composite core doors
  • Required to be used on openings with vertical gaps greater than 1/8” and up to 3/8”

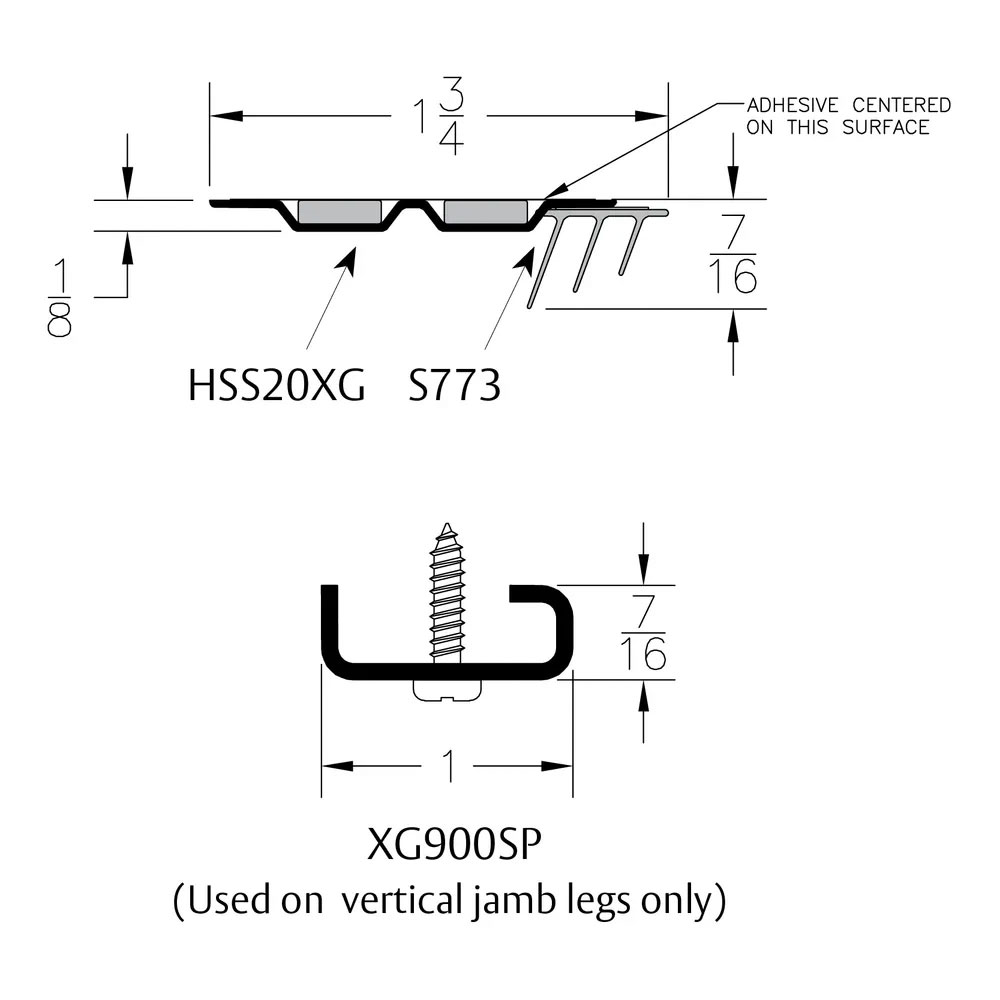

HSS20XGxS773
• Adhesive backed intumescent
• Helps prevent penetration of life threatening hot smoke and hot gasses by expanding and filling the gap around the perimeter of the door.
• Activation takes place without noxious fumes or smoke being given off.
• Carbon dioxide, erosion, and moisture resistant.

HSS20XG
• Can be painted to match door. Do not paint S773 material.
• For use on fire rated openings with clearance between door and frame in excess of those allowed in NFPA 80. Listed for use on clearances up to 3/8″.
NOTE: Frame extender XP900SP is required for 90-minute ratings.

XG900SP
• 16ga galvannealed steel
• Can be painted in the field to match the frame.
• Can be screw applied or welded to a metal frame (order with no holes for clean appearance).

IconUL1S47







FINISHES

  • XG90KIT_BL – Black PVC Encased Intumescent with Black SiliconSeal and Galvannealed Stop Extender
Brand

Size

36" x 84", 42" x 84", 48" x 84"

Finishes

Black

Fire Rating

Rated up to 90-minutes and suitable for use on steel composite, hollow metal doors, wood and plastic-covered composite core doors
