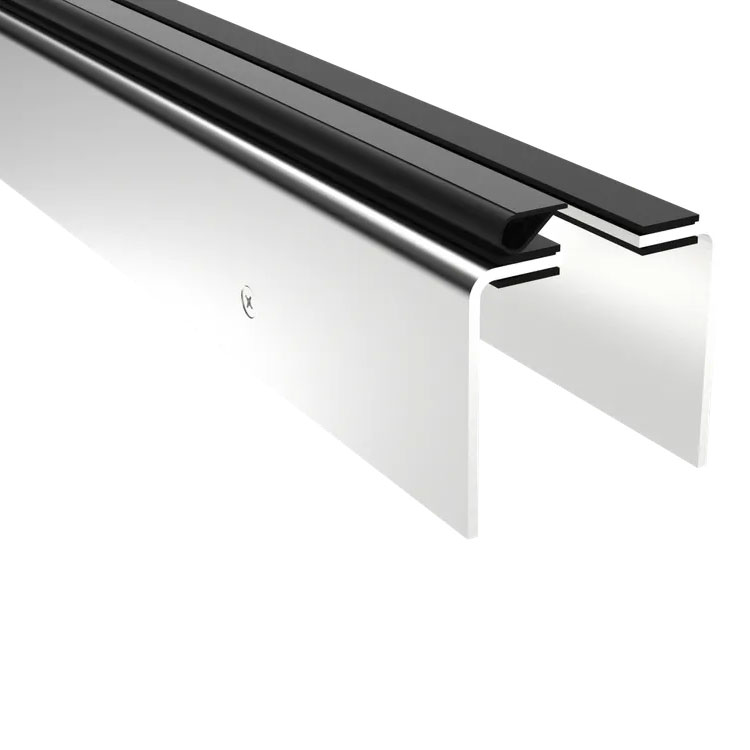

Pemko EGA305XGSS Door Top Weatherstrip, Fire Door Excessive Gap Solution

Usually Ships: 10-15 Days
  • Suitable for use on gaps up to 1-1/2”
  • Installs onto the door to increase size and fill gap
  • Helps bring fire doors back into compliance

Available Options:

Clear

Pemko EGA305XGSS Door Top Weatherstrip

Pemko’s line of Excessive Gap seals help bring fire doors back into compliance.

  • Brings fire doors into compliance with code
  • Eliminates costly expense of replacing doors
  • Quick and easy resolution to fire door inspection issues
  • Incorporates S88 adhesive-backed silicone bulb and HSS2000 high-performing intumescent
  • Clearance between door face and frame should be more than 1/16″
  • UL Classified for use on openings with gaps in excess of those outlined in NFPA 80
  • Suitable for use on gaps at the head of an opening up to 1/2”
  • Rated up to 90-minutes and suitable for use on steel composite, hollow metal doors, wood and plastic-covered composite core doors
  • End plate kit provided to finish off door edge
  • LENGTHS: 36 and 48″
  • WIDTH: 11/16″ (17.46 mm)
  • HEIGHT: 1-3/4″ (44.45 mm)

IconUL1S47







MATERIAL

  • Stainless Steel

FINISHES

  • EGA305XGSS – Stainless Steel, #4 Brushed, Black Neoprene insert
Brand

Finishes

SS – Satin Stainless Steel

Length

36", 42", 48"

Fire Rating

Rated up to 90-minutes and suitable for use on steel composite, hollow metal doors, wood and plastic-covered composite core doors

Related Products

  • PEMKO_325XGSSN

    Pemko - 325XGSSN Door Bottom Sweep, Fire Door Excessive Gap Solution

    Starting at: $293.00
  • Pemko-XG90KIT

    Pemko - XG90KIT Perimeter Gasket with Stop Extender, Fire Door Excessive Gap Solution

    Starting at: $825.00
  • PEMKO_XG2212APK773

    Pemko - XG2212_PK773 Door Bottom Shoe, Fire Door Excessive Gap Solution

    Starting at: $295.00
  • Zero-339FS-Intumescent-Door-Sweep

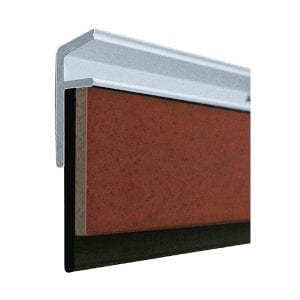

    Zero - 339FS-AA Intumescent Door Sweep w/ Neoprene Insert
