Pemko 355_P T-Shaped Astragal with Pile Brush Insert

Usually Ships: 5-10 Business Days
  • For beveled outswinging doors
  • Restricts smoke, sound, light, drafts, and insects
  • Air infiltration tested, fire-rated

Available Options:

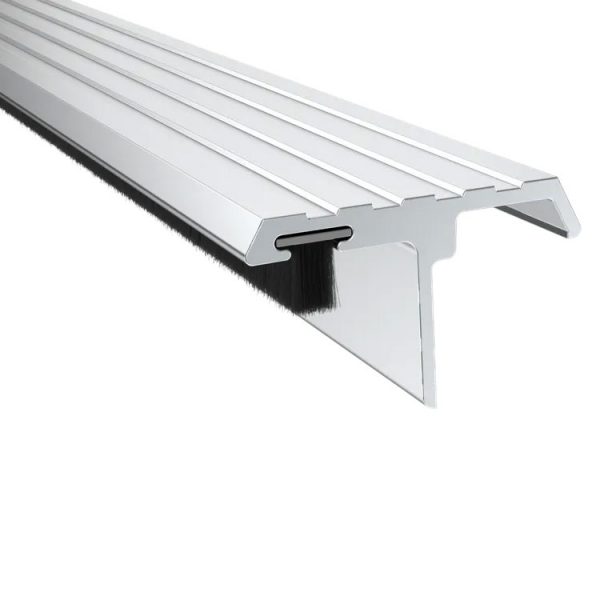

Pemko 355_P Surface-Mounted T-Shaped Astragal with Pile Brush (P) Insert

The 355_P is a surface-mounted, T-shaped Astragal designed for single active double doors with a Pile Brush insert. It effectively seals the gap between the doors, preventing infiltration of smoke, sound, light, drafts, and insects. Made with a high-quality clear anodized aluminum casing, this astragal is durable and resistant to extreme environments.

When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80.

  • Surface mounted
  • Applied to single active door in a pair of double doors
  • Creates a continuous seal
  • Seals the gap between paired doors by compressing the seal
  • Installation on fire doors must meet NFPA 80 requirements
  • Door coordinator needed when both doors are active

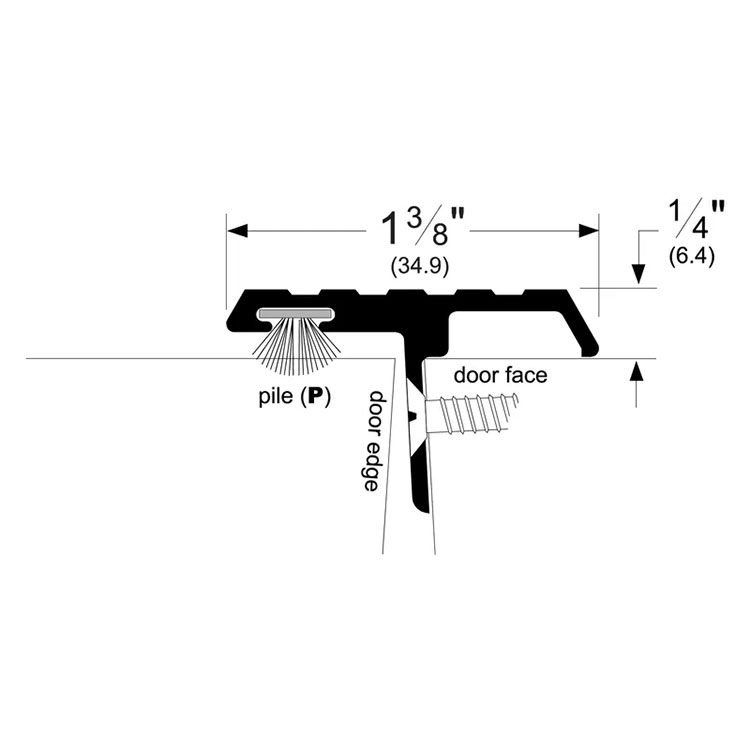

  • Profile Width: 1-3/8” (34.9 mm)
  • Height: 1/4” (6.4 mm)

Finishes

  • 355CP: C – Clear Anodized Aluminum with Pile Brush insert
  • 355BSPP: BSP – Black Suede Powder Coat with Pile Brush insert
  • 355DP: D – Dark Bronze Anodized Aluminum with Pile Brush insert

Ratings

  •  Air Infiltration Tested
  •  Smoke Tested – UL1784
  •  Fire Rated – UL10C – Positive Pressure
  •  Underwriters Laboratory 4L10
  •  GREENGUARD Gold Certified
Brand

Finishes

C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat

Length

84", 96"

Fire Rating

Fire Rated – UL10C – Positive Pressure
