Product Overview

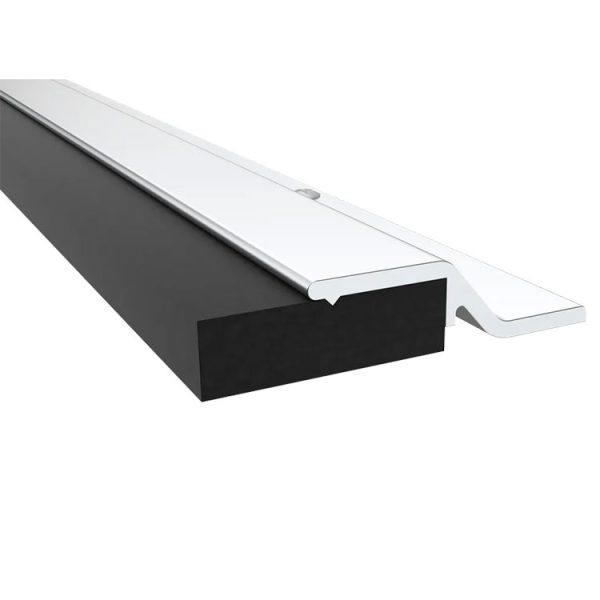

Pemko 375_R Overlapping Astragal with Sponge EPDM Insert

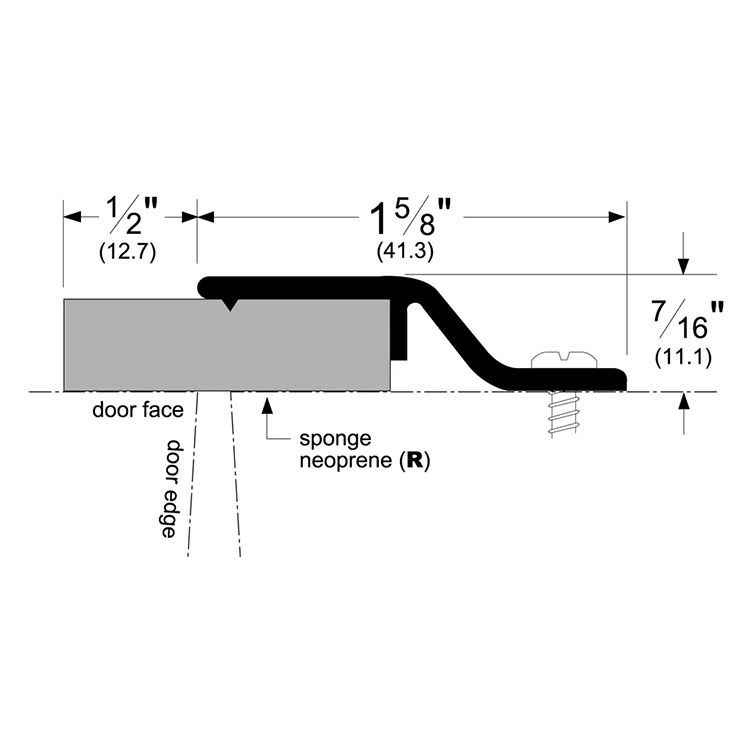

The 375_R Overlapping Astragal is perfect for preventing infiltration of fire, smoke, light, dust, drafts, and sound in double-door entryways. This surface-mounted astragal features a 1.25″ wide casing filled with a Sponge EPDM seal. It is available in various finishes and can be custom cut to size. Easy installation with provided screws.
- Overlaps door with sponge EPDM seal
- Applied to single active door in a pair of double doors
- Installation on fire doors must meet NFPA 80 requirements
- Neoprene seal slightly compressible
- Covers the gap between a pair of double doors
- EPDM seal is eco-friendly
- Flexible at high and low temperatures
- Resists deterioration from oily substances
Finishes
- 375CR: C – Clear Anodized Aluminum with Sponge EPDM insert
- 375BSPR: BSP – Black Suede Powder Coat with Sponge EPDM insert
- 355DR: D – Dark Bronze Anodized Aluminum with Sponge EPDM insert
Ratings
- UL 1784 – Standard for Air Leakage Tests of Door Assemblies and Other Opening Protectives
- UL 10C – Standard for Positive Pressure Fire Tests of Door Assemblies
- ASTM E-283-04 (2012)
- ANSI/BHMA A156.22 Door Gasketing and Edge Seal Systems
Brand | |
---|---|
Finishes | C – Clear Anodized Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat |
Length | 84", 96" |
Fire Rating | Fire Rated – UL10C – Positive Pressure |
