Pemko 2009_PK Latching Panic Saddle Threshold with PemkoPrene Insert – 5″ Wide x 1/2″ High

Usually Ships: 10-15 Business Days
  • 5″ Wide x 1/2″ High
  • ADA compliant and fire-rated
  • High compression seal for excellent sound control

Available Options:
Clear

Product Overview

Pemko 2009_PK Latching Panic Saddle Threshold w/ PemkoPrene Insert

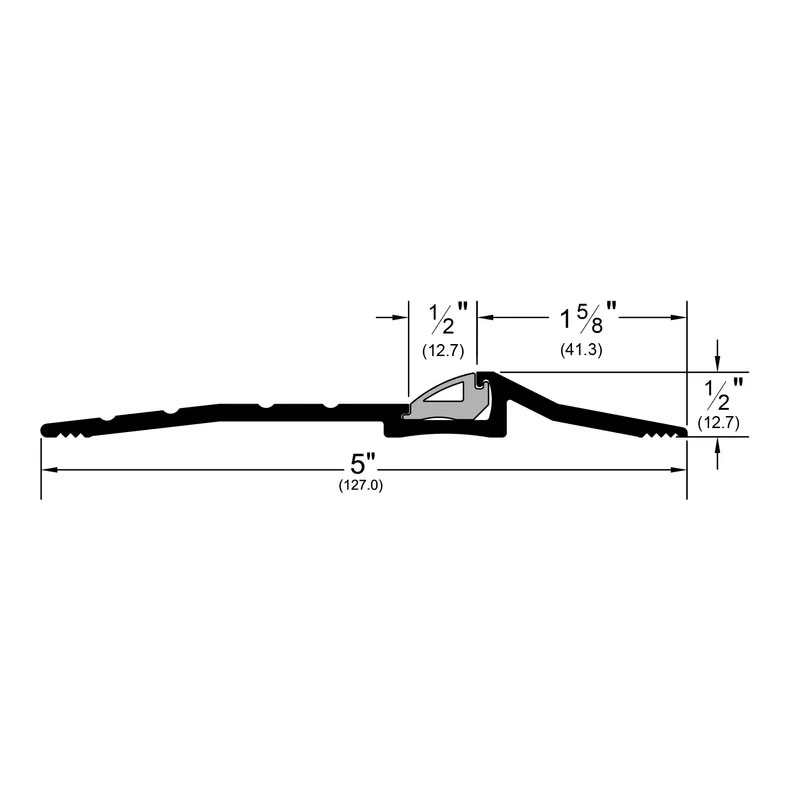

The 2009_PK Latching Panic Saddle Threshold is 5″ in width and a versatile option for acoustic applications allowing for a 3/8″ door clearance. It features an integrated PemkoPrene gasket to seal against sound, air infiltration, wind, and debris. This threshold is ADA compliant, and concealed fasteners are available as an option. The threshold is tested for air infiltration, sound, smoke, and fire ratings.

  • Required undercut – minimum of 9/32″ and maximum of 15/32″
  • ADA Compliant
  • This threshold is supplied with a PemkoPrene® (“PK”) insert

Finishes

  • 2009APK: A – Mill Finish Aluminum Aluminum with Black PemkoPrene insert
  • 2009BSPPK: BSP – Black Suede Powder Coat Aluminum with Black PemkoPrene insert
  • 2009DPK: D – Dark Bronze Aluminum with Black PemkoPrene insert

Ratings

  • Air Infiltration Tested
  • Sound Tested – ASTM E90
  • Barrier-Free
  • BHMA Certified
  • Fire Rated – UL10C – Positive Pressure
  • Underwriters Laboratory 4L10
  • GREENGUARD Gold Certified

2008pk-codes

Brand

Finishes

A – Mill Finish Aluminum, D – Dark Bronze Anodized Aluminum, BSP Black Suede Powder Coat
Length

36", 48", 72", 96"
Width

5"
Height

1/2"
ANSI/BHMA Standard

ANSI/BHMA A156.2
ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code
Fire Rating

Up to 3 Hours with metal doors; 90 minutes with wood doors
