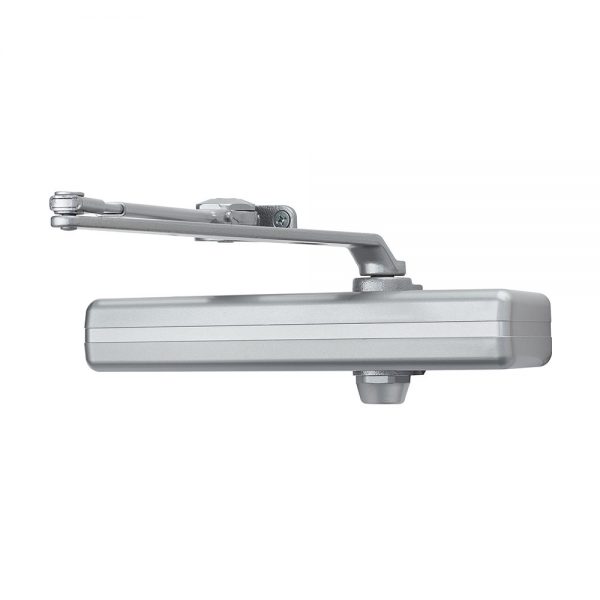

LCN 1461 Hw/PA Door Closer with Hold Open Arm

Usually Ships: 1-2 Business Days
  • ANSI/BHMA A156.4 Grade 1 Certified, Made in USA
  • Cast iron body – fully adjustable (sizes 1-6)
  • Includes hold open arm – regular, top jamb or parallel arm mount

Available Options:

Clear

LCN 1461 HWPA Grade-1 Door Closer, Hold Open Arm with Parallel Bracket

The 1460 Series is a universal medium-duty closer designed for maximum versatility in commercial and institutional applications, meeting ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements.

Body construction

  • Cast iron cylinder with full-complement bearing
  • 1-1/4″ diameter piston
  • Heat-treated steel pinion journal

Arm

  • Non-handed
  • Mounts hinge side, top jamb or parallel arm
  • Friction type hold-open adjustable at shoe

Quality and durability

  • All-weather fluid
  • LCN patented Green Dial spring force indicator
  • 30-year warranty

Installation

  • Universal non-handed
  • Peel-n-stick template and standard slim line plastic cover
  • Adjustable spring sizes 1-6





Finishes:

  • AL, BHMA 689 – Aluminum
  • DKBRZ, BHMA 695 – Dark Bronze
  • BLK, BHMA 693 – Black
  • BRASS, BHMA 696 – Brass
  • LTBRZ, BHMA 691 – Light Bronze

Models: 1461.CYL.HWPA.689.SLIMPC.TBSRT, 1461.CYL.HWPA.689.FPC.TBSR, 1461.CYL.HWPA.695.SLIMPC.TBSRT, 1461.CYL.HWPA.695.FPC.TBSRT, 1461.CYL.HWPA.693.SLIMPC.TBSRT, 1461.CYL.HWPA.693.FPC.TBSRT, 1461.CYL.HWPA.696.SLIMPC.TBSRT, 1461.CYL.HWPA.696.FPC.TBSRT, 1461.CYL.HWPA.691.SLIMPC.TBSRT, 1461.CYL.HWPA.691.FPC.TBSRT

Brand

Finishes

689 Aluminum, 691 Light Bronze, 693 Black, 695 Dark Bronze, 696 Brass

Templating (Hole Pattern)

1" x 7-1/2"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Usage

Medium Duty

Body Construction

Cast Iron Body

Spring Size

Adjustable Spring Size 1-6

Fluid

All Weather Fluid

Handing

Non-Handed

Door Application

Hollow Metal or Wood

Certifications

Grade 1 – ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA – Buy American Act

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Non-Rated with Hold Open Arm

Cover

Slim Cover Standard (Full Cover Optional)

Fasteners

Self Reaming and Tapping Screws (SRT)

Warranty

30 Years

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

LCN_1461_Pull_Side_&_Top_Jamb_Closer_110_&_180__Mount_Installation_Instructions LCN_1461_Series_P.A._Mounting_Installation_Instructions
