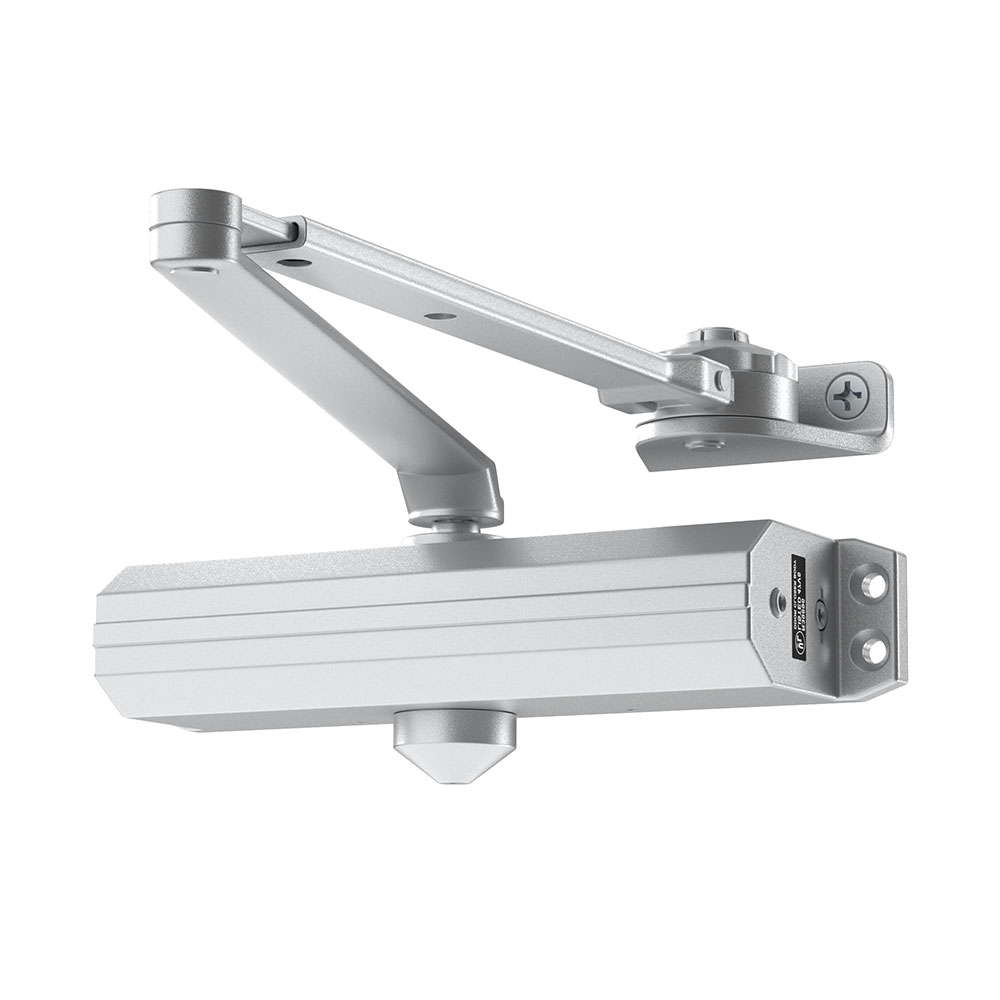

Trudoor TDC-100-H Door Closer with Hold Open Arm

Usually Ships: Same Day
  • Meets ANSI A156.4 Grade 1 standards
  • Includes friction hold open arm
  • Regular, top jamb, or parallel arm mount

Available Options:

Clear

Trudoor TDC-100-H Commercial Door Closer, Cast Aluminum Body, Hold Open Arm with PA Bracket, Less Cover

Trudoor® TDC-100 door closers are an ideal choice for a wide variety of light to medium-duty commercial applications including aluminum storefronts, where durability, reliability, and code compliance are required at an economical price. TDC-100 surface mount hydraulic door closers are for use on exterior or interior doors in office buildings, retail stores, medical & assisted living facilities, government facilities, hospitality, and other commercial buildings.

  • Includes regular arm and friction hold open arm (hold open arm packed in a separate box)
  • Quality construction and reliability at an affordable price
  • Includes screws and brackets for regular, top jamb and parallel arm installations
  • Adjustable spring power from Size 1 to 6 – preset to size 3
  • Heavy-duty cast aluminum closer body, rack & pinion construction
  • 2-7/8″ Projection
  • AL/689 Aluminum Finish

Hold Open Arm

Used to hold door open in non-fire-rated applications. Hold Open Function using friction type fitting under nut which also allows for multiple hold open positions.

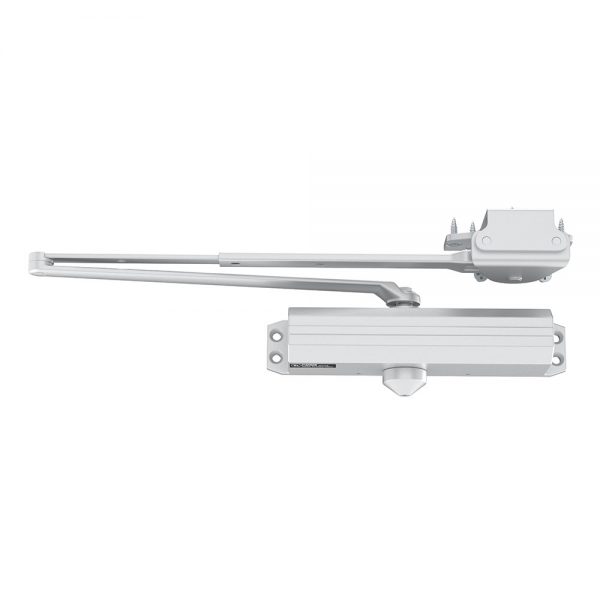

  • Mounting: Regular, Top Jamb & Parallel Arm (includes PA bracket)
  • Adjustability: Two arm length positions allow for different jamb depths
  • Non-handed design

Code Compliance

  • Meets ANSI A156.4 – Grade 1 Standards
  • Meets ADA and ANSI A117.1 Accessibility Codes

Brand

Finishes

689 Aluminum (Powder Coated)

Templating (Hole Pattern)

3/4" x 9-1/16"

Usage

Standard Duty

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

Handing

Non Handed – Completely Reversible

Speed Control

Independent latch & sweep speed controls

Backcheck

Back check intensity control standard

Valves

Staked valves to prevent backing valves out too far

Piston, Spindle, Spring

Heat treated heavy-duty steel piston, spindle and spring

Cover

None

Min. Top Rail

Regular: 3-1/8” – Top Jamb: 1-7/8” – Parallel Arm: 5-3/4”

Fasteners

Thru bolts with machine screws, wood screws & Self tapping machine screws

ANSI Grade

Meets ANSI A156.4 – Grade 1 Standards

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

Non-Rated with Hold Open Arm

Warranty

Limited Lifetime Warranty
