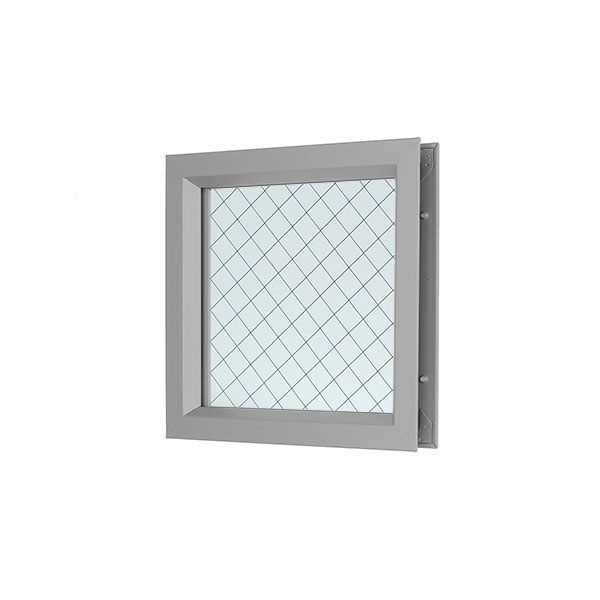

NGP (National Guard) L-FRA100 Lite Kit Pack with 1/4″ Protect3, 45 to 90 Minute Fire-Rated Safety Wire Glass

Usually Ships: 3-5 Days
  • Complete Lite Kit = Frame, Glass & Glazing Tape
  • 1/4″ glass w/ embedded 3/4″ x 3/4″ wire mesh
  • For 1-3/4″ thick steel or wood doors

Available Options:

Clear

Complete Lite Kit for 1-3/4″ Thick Doors with Protect3™Glass and Glazing Tape

Includes Protect3™ Safety Glass – provides FIRE, SAFETY and SECURITY protection all in one.

  • 18-Gauge Steel Frame
  • Mitered and welded corners with countersunk mounting holes
  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Includes Protect3 1/4″ fire and safety rated wire glass – Safety film applied to one side & embedded 3/4 x 3/4″ wire mesh (diamond pattern)
  • Glazing tape included with every kit (V980 or FG3000S90)
  • Frame is embossed with UL Label
  • Glass is permanently etched with UL Classification

*Sizes Etched with 45 Minute UL Label: 24″ x 30″, 24″ x 32″, 24″x 36″

*Sizes Etched with 90 Minute Label: 12″ x 12″, 5″ x 35″, 6″ x 27″, 7″ x 22″, ^8″ x 32″

^ Pemko FG3000 Glazing Tape Included. V980 glazing tape included with all other sizes.

*Please refer to IBC code Chapter 7 (International Building Code) for fire-rated glass requirements and limitations. Door frame, door, and hardware must also be fire-rated. Fire-rating requirements must match the glazing requirements in order for the assembly to fully meet code requirements. Please refer to the manufacturers’ specifications. Please Consult with your door and frame manufacturer’s procedures, for their maximum glass size tested. Interpretation of building and fire codes may vary. Consult with the local authority having jurisdiction to determine appropriate standards in your area. Trudoor assumes no liability or responsibility for any damage to person or property resulting from or incident to the use of the products that we provide. Trudoor assumes no liability or responsibility for misspecified and/or misordered materials. Glass is cut to order and non-returnable or refundable.

Note: Per NFPA 80 (National Fire Protection Association), field cutting of doors for vision panels or enlarging existing cutouts for vision panels is considered to be a field modification that is NOT allowed.

Trudoor is certified by UL to cut, re-certify and label fire-rated glazing materials. Our facility undergoes routine inspections to verify that modifications are done in compliance with the requirements of the UL specification listings. All material is tested in accordance with NFPA codes and standards.

Glass is cut to order and non-returnable or refundable.

Special powder coat colors: (Dark Bronze, Tan, Steelcraft Beige, White, Matte Black, Gloss Black, Aluminum Silver, Walnut Brown (matches Timely Browntone) and Magnolia White (matches Timely Western White) Galvanneal or Aluminum Material

Call 1-844-TRUDOOR (844-878-3667) for custom sizes and info on volume discounts

All lite kits are carefully packaged to ensure safe delivery. Due to the weight and/or fragile nature of this product, a handling/package fee will be added upon checkout. The fee varies depending on the shipping destination. See our shipping info page for more details.

Brand

Order Size

5" x 35", 6" x 27", 7" x 22", 8" x 32", 12" x 12", 24" x 30", 24" x 32"

Finishes

DKB – Dark Bronze, GPZ – Gray Primer

Frame Profile

Low

Frame Construction

18 Gauge Cold Rolled Steel

Frame Fire-Rating

3 Hour – Tested and Listed for UL 10C and Criteria of UBC 7-2 Positive Pressure – WHI Listed

Frame Fasteners

#8 x 1" Flathead Phillips SMS – Included

Glass Type

Wire Fire-Rated Glass

Glass Thickness

1/4"

Glass Appearance

Clear w/ Embedded 3/4″ x 3/4″ Wire Mesh

Glass Light Transmission

Approx. 86%

Glass Weight

3.6 lbs/ft2

Glass Approvals

UL 9, UL 10B; NFPA 80, NFPA 252, NFPA 257; ASTM E2074, E152, E163, E2010-01; ULC CAN4-S104 & CAN4-S106

Glass Fire-Rating

20 to 90 Minutes with Hose Stream – UL Listed

Glass Impact Safety Rating

ANSI Z97.1, Class A; and CPSC 16 CFR 1201 Category II

Door Thickness

1-3/4"

Part Number

L-FRA100-PRO3-GT118
