NGP (National Guard) L-CVFM-SS Stainless Steel Vision Lite Frame for 3/16″, 1/4″ or 5/16″ Glass, 1-3/4″ Thick Door

Usually Ships: 30-45 Business Days
  • 18 ga. Type 304 Stainless Steel
  • For 3/16″, 1/4″ or 5/16″ Glass (Not Included)
  • For use with 1-3/4″ Doors

Available Options:

Clear

Product Overview

Stainless Steel Lite Kit for 1-3/4″ Thick Doors and 3/16″, 1/4″ or 5/16″ Glass

Stainless steel is known for its corrosion resistance. Stainless steel doors available.

  • 18 ga. Type 304 stainless steel – #4 satin finish
  • Mitered and welded corners
  • Countersunk mounting screw-holes
  • #8 x 1-3/4″ Phillips head SMS

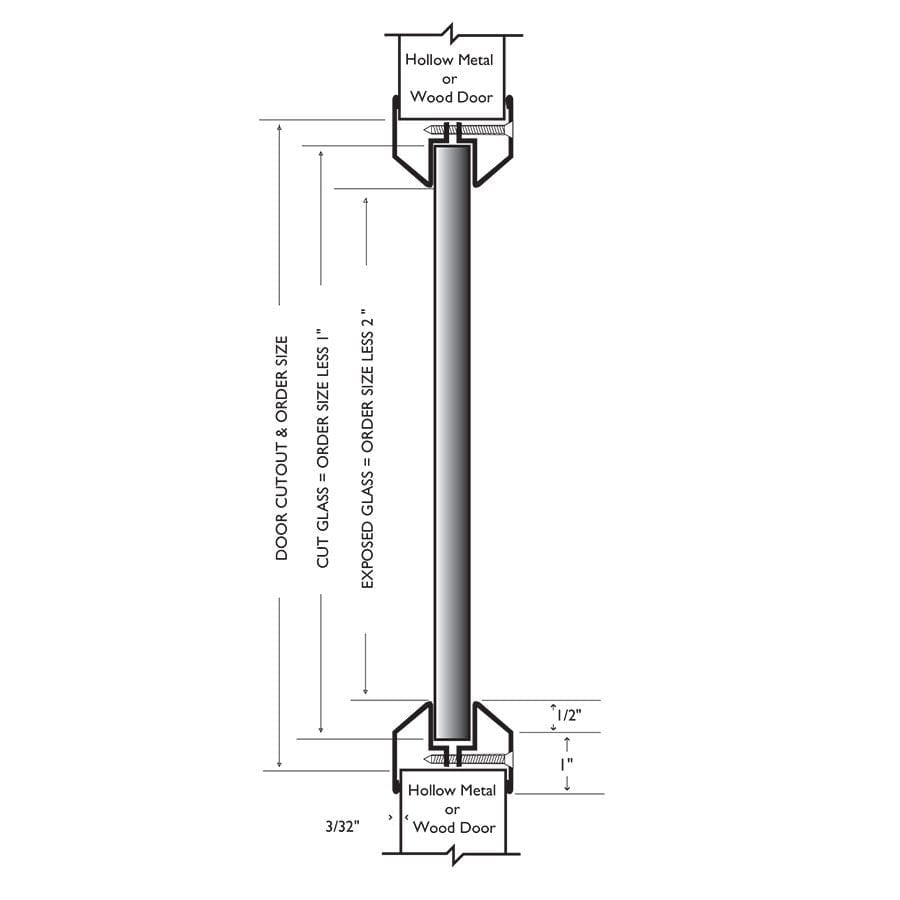

  • Order size equal to cutout size – Glass size is 1″ under, Visible glass is 2″ under
  • Glass / Glazing Tape Not Included – glazing to be ordered separately from our glazing section. Use fire rated glazing with Warnock Hersey (WHI) or UL classification markings for fire-rated applications.
  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes
  • POSITIVE PRESSURE – CERTIFIED by UL to ANSI/UL10C

Brand

Order Size

5" x 35", 6" x 27", 7" x 22", 8" x 32", 12" x 12", 24" x 30", 24" x 32", 24" x 36", 24" x 60"
Finish

Stainless Steel
Frame Profile

Low
Frame Construction

18 ga. Type 304 stainless steel
Frame Fasteners

#8 x 1-3/4" Phillips head SMS
Glass Thickness

3/16", 1/4" or 5/16"
Fire Rating

UL Listed up to 3 Hours
Door Thickness

1-3/4"
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
