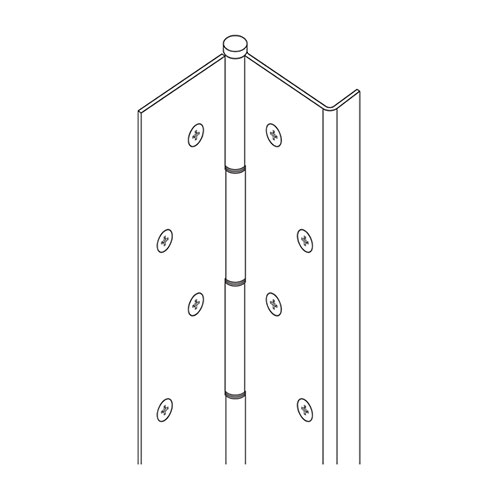

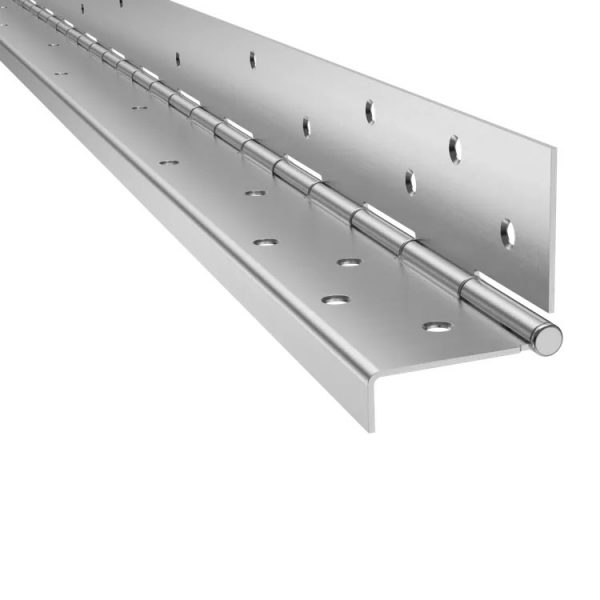

Markar HG315 Edge Mount Hinge Guard, Stainless Steel Pin & Barrel Continuous Hinge, Single Return

Usually Ships: 1-2 Business Days
  • Heavy-duty 14 gauge stainless steel
  • Supports weights up to 600lbs
  • Featuring a unique edge guard

Available Options:

Clear

Product Overview

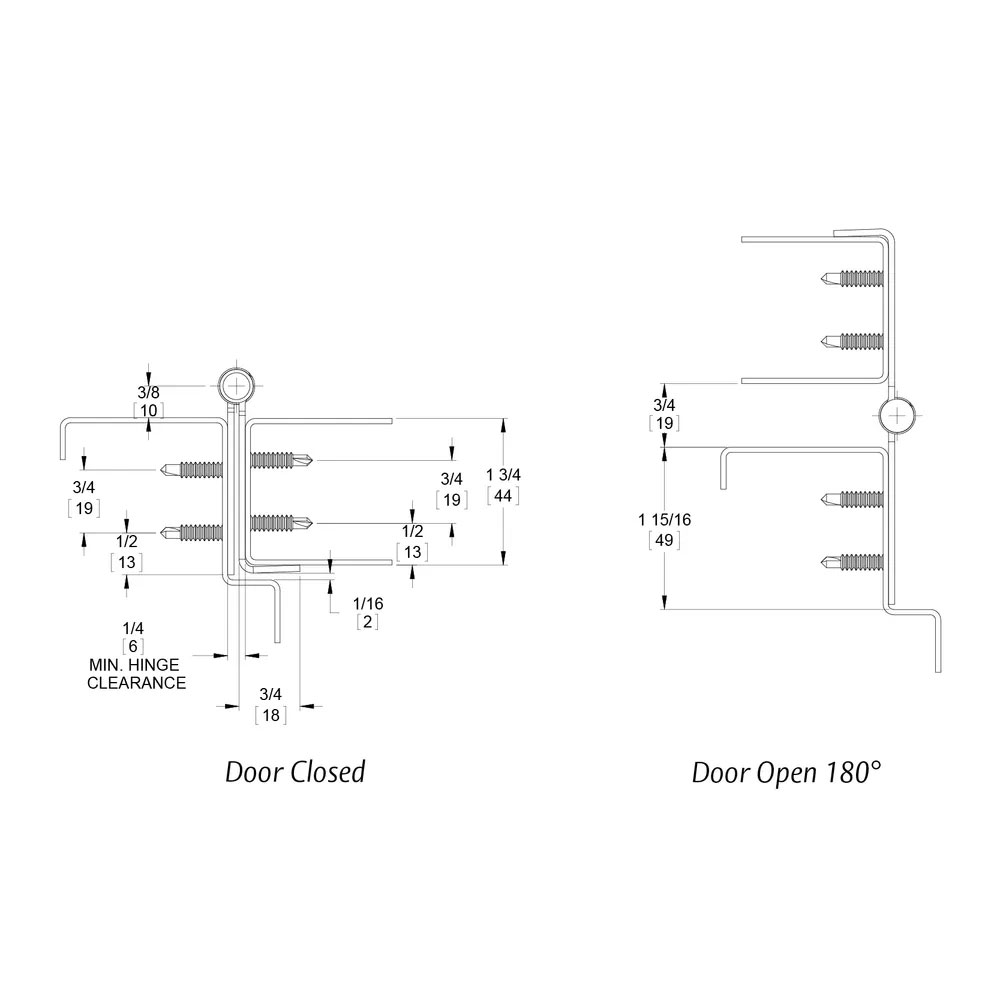

Featuring a unique edge guard, this economical hinge prevents objects being placed between the door and frame as well as protecting the door’s edge while supporting the door’s weight along the entire length of the jamb.

  • 3/16″ diameter stainless steel barrel type hinge pin (rod). Medical bearings. Stainless steel end pins
  • Heavy-duty 14 gauge 304 stainless steel, finished in US32D (630)
  • Fasteners concealed when door is closed. Fastener screw pack includes Custom 12-24 x 11/16 S.S Phillips Flat Head Undercut TEK Screws
  • Supports weights up to 600lbs. 4’0″ maximum door width
  • Symmetrically templated hole pattern
  • For use on center hung lead lined doors
  • Exterior barrel diameter .438 (7/16″)
  • Optional features include US32 Bright Polished Stainless (629), custom lengths (specify handing and length in inches), custom hole patterns, tamper-proof security screws
  • When installed on a 16 gauge (or heavier) metal frame, hinge reinforcements are not required, nor are they recommended. However, if the frames are equipped with mortise hinge reinforcements, removal is not advised
  • ANSI/BHMA Standard A156.26 Grade 1
Brand

Finish

Stainless Steel
Continuous Hinge Type

Full Mortise (Concealed)
Usage

Heavy Duty
