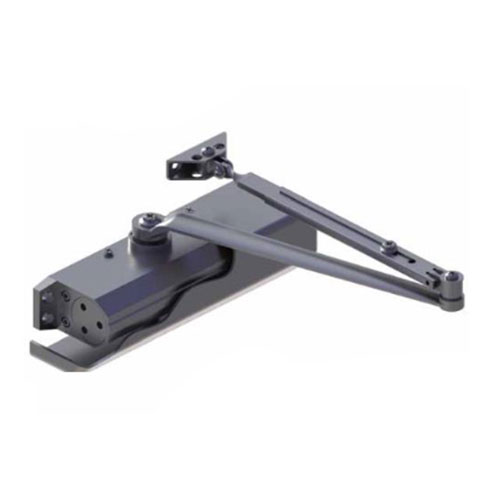

Hager 5300 Door Closer

Usually Ships: 1-2 Business Days
  • BHMA/ANSI Certified Grade-1
  • Adjustable spring size 1-6
  • Regular, top jamb, and parallel arm installations

Available Options:


Hager 5300 Series Door Closer, 5300 MLT ADJ 1-6 BF, MLT – Multi-Mount, Size 1-6 Adjustable, Barrier Free

Grade 1 heavy duty surface door closer adjustable sizes 1-6. Ideal for schools, hospitals, and other high-use environments.

  • Includes standard 5303 tri-pack arm
  • MLT (Multi-Mount) – Regular, parallel-arm, and top jamb mount
  • Standard, separate and independent, latch, sweep and backcheck valves
  • Ideal for schools, hospitals, and other high-use environments
  • Ideal choice for doors with a maximum weight of 250 lbs
  • To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball-bearing hinges with this product




ALM Sprayed Aluminum, DBZ Sprayed Dark Bronze, BLK Black

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

Fire Rating

UL Listed – UL10c compliant for positive pressure

Templating (Hole Pattern)

3/4" x 9-1/16"

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6




Full Cover

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Door Applications

Hollow Metal, Wood or Aluminum

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code


Standard Duty


Limited Lifetime Warranty
