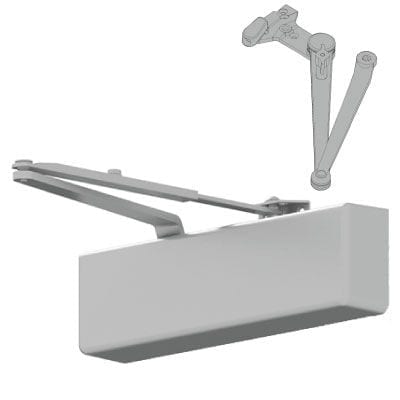

Falcon SC71A SSHO, SC70 Series Heavy Duty Closer, Spring-n-Stop Arm with Hold Open, Full Cover
Falcon SC70 Series heavy-duty closers are built for applications that demand reliable door control and easy maintenance. The SC70 Series closers are ANSI Grade 1, ADA compliant, and deliver tough performance at an unbeatable value. Choose the SC71A for interior or exterior doors in retail shops, restaurants, apartments, small offices, and a variety of other high-traffic applications.
SS/HO – Spring-n-Stop Arm with Hold Open. Extra heavy-duty arm with parallel arm bracket that incorporates an integral spring stop and hold open feature. Includes a forged steel main arm and forearm for maximum durability in high traffic and/or abusive applications. Parallel Arm (PA) bracket is a permanent feature, installation on the ‘push’ side of the door in a parallel arm type configuration is required.
- Separate adjustable general speed, latch speed and backcheck
- Comes standard with universal screw pack, including self reaming and tapping screws
- AL, BHMA 689 – Silver Painted (Resembles Aluminum Finish)
- DKB, BHMA 695 – Dark Bronze Painted (Spray Duranodic)
Models: SC71A-SSHO-AL, SC71A-SSHO-DKB
689 Aluminum, 695 Dark Bronze
|Templating (Hole Pattern)||
2-3/8" x 6-3/4"
Parallel Arm (Push Side)
Tested and certified under ANSI Standard A156.4 – Grade-1
Cast Aluminum Body
Adjustable Spring Size 1-6
