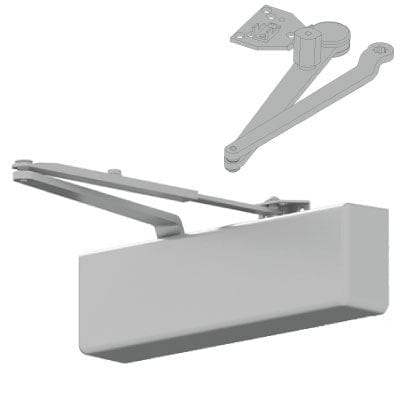

Falcon SC71A DS/HO Door Closer with Heavy Duty Deadstop Hold Open Parallel Arm

Usually Ships: 1-2 Business Days
  • Heavy Duty – ANSI Grade-1 Certified
  • Includes Hold Open Arm w/ Deadstop
  • Non-Handed, Parallel Arm Mount Only

Available Options:


Falcon SC71A DSHO, SC70 Series Heavy Duty Closer, Dead Stop with Hold Open Arm, Full Cover

Falcon SC70 Series heavy-duty closers are built for applications that demand reliable door control and easy maintenance. The SC70 Series closers are ANSI Grade 1, ADA compliant, and deliver tough performance at an unbeatable value. Choose the SC71A for interior or exterior doors in retail shops, restaurants, apartments, small offices, and a variety of other high-traffic applications.

DS/HO – Dead Stop Arm with Hold Open. Heavy-duty arm with parallel arm bracket that incorporates a positive mechanical stop and hold open feature. Includes a stamped steel main arm and forearm for added durability in potentially high traffic and or abusive applications. Parallel Arm (PA) bracket is a permanent feature, installation on the ‘push’ side of the door in a parallel arm type configuration is required. Hold open function is manually selected with a ‘thumb turn’ feature built into the main portion of the arm.

  • Separate adjustable general speed, latch speed and backcheck
  • Comes standard with universal screw pack, including self reaming and tapping screws


  • AL, BHMA 689 – Silver Painted (Resembles Aluminum Finish)
  • DKB, BHMA 695 – Dark Bronze Painted (Spray Duranodic)




689 Aluminum, 695 Dark Bronze

Templating (Hole Pattern)

2-3/8" x 6-3/4"

Mounting Options

Parallel Arm (Push Side)


Heavy Duty

ANSI/BHMA Standard

Tested and certified under ANSI Standard A156.4 – Grade-1

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6


Full Cover
