LCN 4050A Hw/PA Door Closer with Hold Open Arm

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI/BHMA A156.4 Grade 1 Certified
  • Regular, top jamb, or parallel arm mount
  • Includes hold open arm

Available Options:

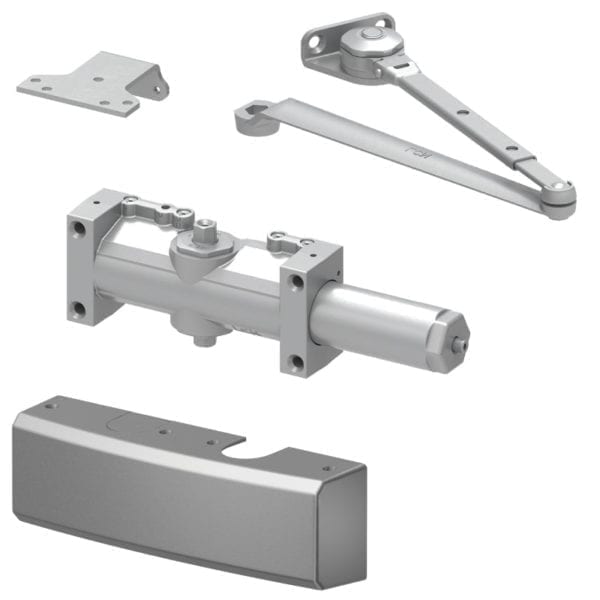

LCN 4050A Hw/PA Grade-1 Surface Door Closer, Hold Open Arm with PA Shoe

The 4050 Series cast aluminum closer is engineered for durability and built tough to excel in the harsh environments of high frequency, highly abusive traffic areas. It is ideal for commercial building applications and competitive specification situations that demand a combination of quality, reliability and value.

This cast aluminum door closer offers premium features like powder coating, a full complement bearing, All Weather Fluid and a 25 year warranty.

  • Cast aluminum bodyƒ
  • Tri-packed: regular, top jamb, or parallel arm mount
  • All-weather fluid
  • Meets BAA – Buy American Act



689 Aluminum, 691 Light Bronze, 693 Black, 695 Dark Bronze, 696 Brass

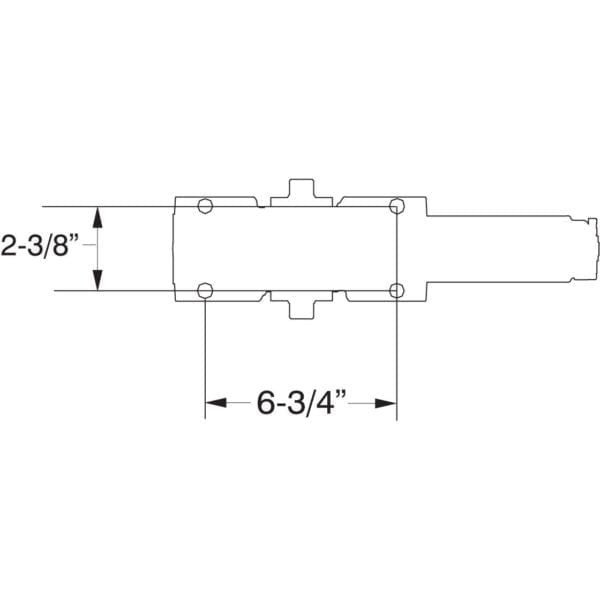

Templating (Hole Pattern)

2-3/8" x 6-3/4"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)


Heavy Duty


Tested and certified under ANSI Standard A156.4 – Grade-1

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6


All Weather Fluid


Full Cover


Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts

Door Applications

Hollow Metal or Wood


25 Years

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
