Falcon F-25-R-EO Fire-Rated Rim Exit Device

Usually Ships: 1-2 Days
  • Heavy Duty – ANSI Grade-1 – Made in USA
  • ANSI Function 01, Exit Only (Trim Sold Separately)
  • UL Listed Fire Exit Hardware, 3 Hour Rated

Available Options:

  • Anodized Aluminum
  • Black
  • Bright Brass
  • Bright Chrome
  • Dark Bronze
  • Satin Brass
  • Satin Bronze
  • Satin Chrome
  • Satin Nickel
  • Stainless Steel
Clear

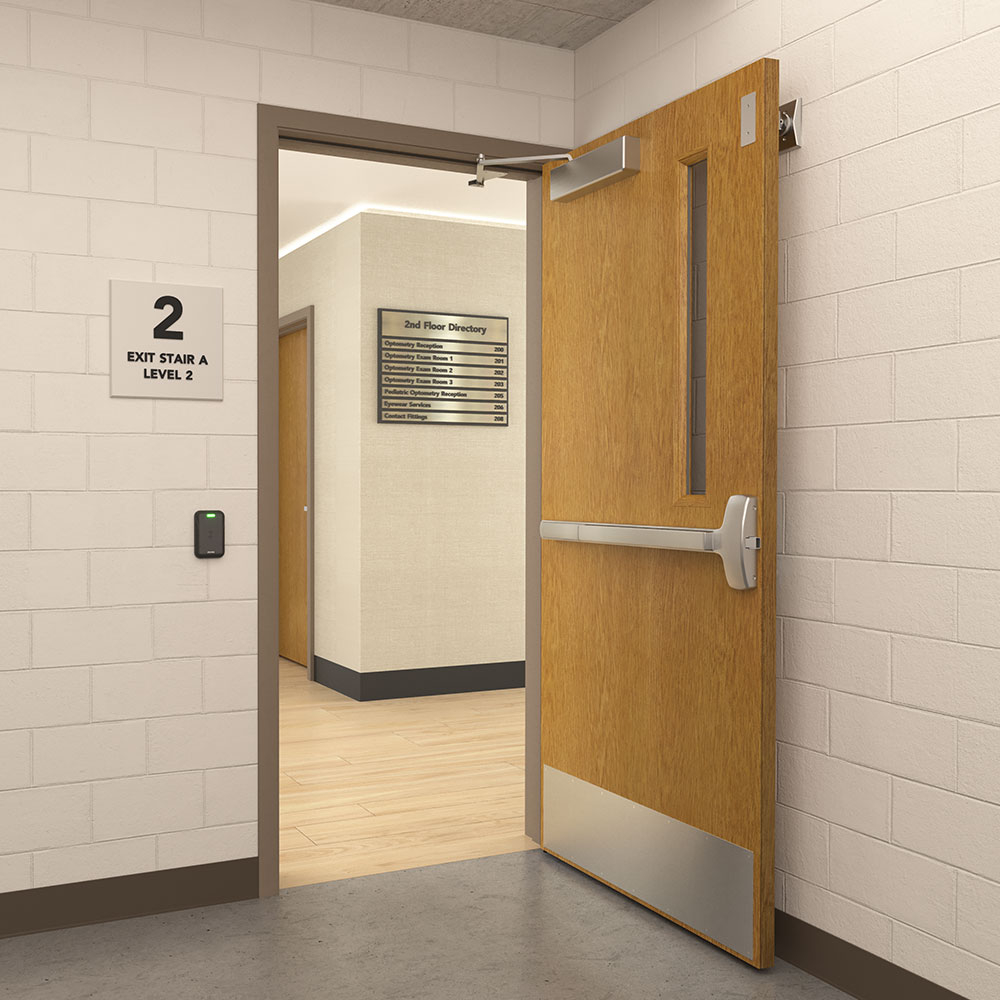

The Falcon F-25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design. The Falcon F-25-R Series rim device combines sleek styling and durability with the protection of a fire-rated device.

  • EO = Exit Only, ANSI Function 01 (25 Series Outside Trim sold separately)
  • For use with single fire doors and double fire doors with a mullion
  • Stock Sizes: 3′ and 4′ – Cut to size in the field
  • Deadlocking latchbolt standard
  • UL listed fire hardware, A or B label fire-rated (3 Hours)

Brand

Finishes

313AN Anodized Dark Bronze, 619 Satin Nickel, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US19 Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US32D (630) Stainless Steel

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

UL listed A or B label Fire-Rated (3 Hours)

Strike

299F fire-rated roller strike

Hand

Non-handed

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Stile Type

Wide (Standard)

Minimum Stile Width

4" w/ Standard Roller Strike

Dogging Feature

None

Projections

2-3/4"

Fasteners

All mounting screws are concealed, sheet metal screws and machine screws standard

Center Case & Working Parts

Center case is heavy wrought and sintered metal parts

Door Applications

1-3/4″ Thick Fire-Rated Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
