Falcon 25-R-EO Panic Rim Exit Device

Usually Ships: 1-2 Days
  • Heavy Duty – ANSI Grade-1 – Made in USA
  • ANSI Function 01, Exit Only (Trim Sold Separately)
  • Streamlined Design and Clean Lines

Available Options:

  • Anodized Aluminum
  • Black
  • Bright Brass
  • Bright Chrome
  • Dark Bronze
  • Satin Brass
  • Satin Bronze
  • Satin Chrome
  • Stainless Steel
Clear

The perfectly simple, tougher than nails, costs less than you think, fits anywhere rim exit device

Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse.

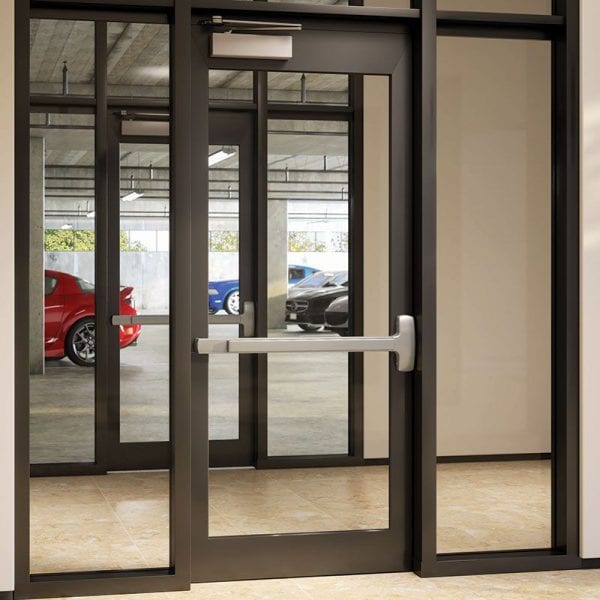

No exposed screws or rivets on the back of the device for a streamlined design and clean lines – when installed on full glass doors. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design.

  • EO = Exit Only, ANSI Function 01 (25 Series Outside Trim sold separately)
  • For use with single doors and double doors with a mullion
  • Stock Sizes: 3′ and 4′ – Cut to size in the field
  • Deadlocking latchbolt standard
  • Formerly known as Monarch 25R

Brand

Finishes

313AN Anodized Dark Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US19 Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US32D (630) Stainless Steel

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

None

Hand

Non-handed

Strike

299 roller strike standard

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Stile Type

Wide (Standard)

Minimum Stile Width

4" w/ Standard Roller Strike

Dogging Feature

Half turn hex dogging standard

Projections

2-3/4" maximum, 2" dogged

Fasteners

All mounting screws are concealed, sheet metal screws and machine screws standard

Center Case & Working Parts

Center case is heavy wrought and sintered metal parts

Door Applications

1-3/4″ Thick Metal or Wood Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Falcon_25-R_F-25-R_Installation_Instructions
