Falcon 25R-TP Panic Bar Rim Exit Device with Thumbpiece Pull

Usually Ships: 1-2 Days
  • Heavy Duty – ANSI Grade-1 – Made in USA
  • ANSI Function 05 (key locks and unlocks)
  • Includes 512TP Thumbpiece Pull

Available Options:

  • Anodized Aluminum
  • Satin Chrome
Clear

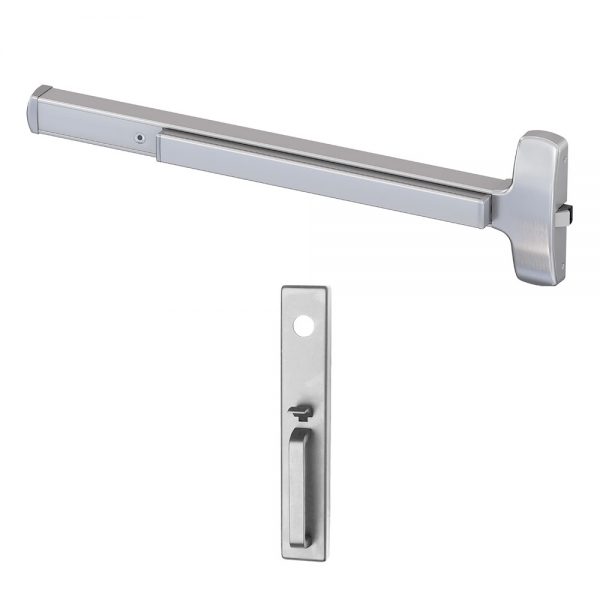

The 25-R-TP panic rim exit device with thumbpiece trim is for use with single doors and double doors with a mullion.

No exposed screws or rivets on the back of the device for a streamlined design and clean lines – when installed on full glass doors. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design.

  • Includes 512TP trim
  • Deadlocking latchbolt standard
  • Stock Sizes: 3′ and 4′ – Cut to size in the field

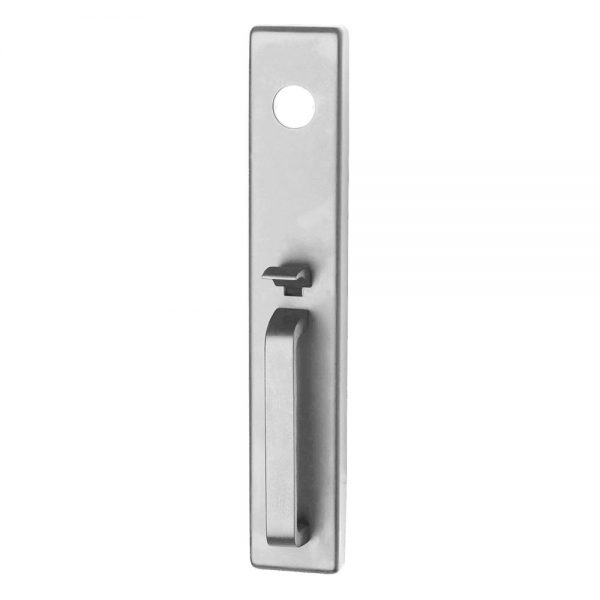

512TP Thumbpiece Entry Pull Trim

  • ANSI Function: 05 (Key locks and unlocks thumbpiece)
  • Escutcheon plate size: 16″ x 2-3/4″ x 3/32″
  • Projection: 2-11/16″
  • Pull center to center: 6-1/2″
  • Mortise cylinder must be ordered separately

Brand

Finishes

US26D (626) Satin Chrome, US28 (628) Anodized Aluminum

Length

3'0" (2'8" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Hand

Non-handed

Trim

512TP

Cylinder

1-1/4" Mortise Cylinder (sold separately)

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

25R: Non-Fire-Rated – F25R: 3 Hour Fire-Rated

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Strike

299 roller strike standard, 299F strike with fire-rated device

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Fasteners

All mounting screws are concealed, sheet metal screws and machine screws standard

Projections

2-3/4" maximum, 2" dogged

Stile Type

Wide (Standard)

Minimum Stile Width

4" w/ Standard Roller Strike

Door Applications

1-3/4″ Thick Metal or Wood Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Falcon_25-R_F-25-R_Installation_Instructions Falcon_25-Series_512TP_512TP-BE_512TP-DT_512NL_Installation_Instructions
