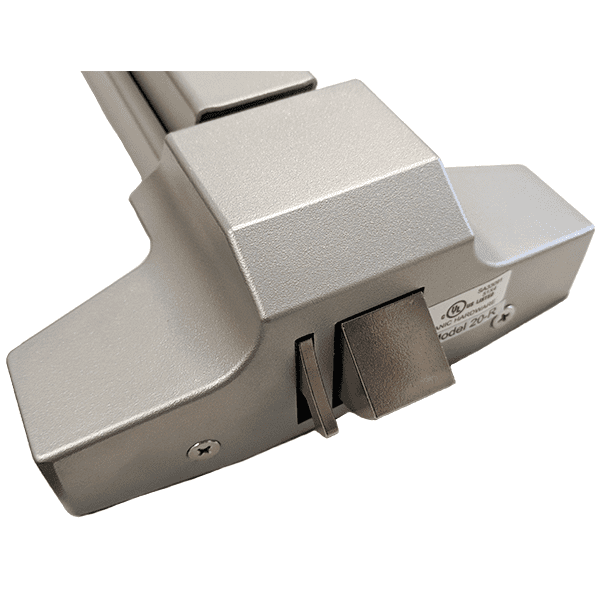

Falcon 20-R-KIL Rim Panic Bar Exit Device with Entry Lever

Usually Ships: 2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • For interior or exterior doors

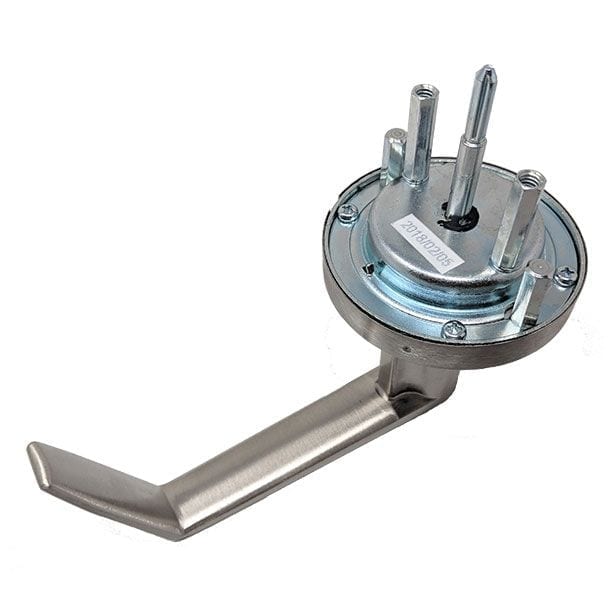

  • Includes 214KIL lever trim (key locks/unlocks lever)

Available Options:

Clear

Falcon 20-R-KIL Panic Rim Exit Device with Key-in-Lever Trim

Falcon® prides itself on dependable, cost-effective products that meet or exceed life safety and building requirements. The Falcon 20 Series, pushbar exit devices are ideal for light-to-medium duty door applications, such as commercial, multi-family, office, and retail. This Grade-1, affordable exit device is offered in multiple functions, lever, and trim options. With the Falcon 20 Series, you’re choosing a quality performing, medium duty pushbar exit device with all metal construction at an unmatched value.

The Falcon 20 Series exit device is an affordable and reliable choice. A certified ANSI/BHMA A156.3-2014 Grade-1 exit device these pushbars are non-handed and will accommodate 161 door prep. The series also offers multiple functions and a full trim complement, including 161 key-in-lever.

  • Includes Entry Lever (Operates as Classroom Function – Unlock/Lock w/ Key)
  • Durable, steel mechanism case construction
  • Standard features include scratch-resistant surfaces and built-in deadlocking
  • Roller Strike Standard
  • 3-1/2″ Minimum stile width
  • Panic listed
  • F Model: UL listed (3-hour fire-rated)
Brand

Finishes

689 Aluminum with 630 Satin Stainless Steel Lever, US32D (630) Satin Stainless Steel

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Usage

Light Duty

ANSI Grade

Certified ANSI/BHMA A156.3-2014 Grade 1

Fire Rating

20R: Non-Fire-Rated – F20R: 3-Hour Fire-Rated

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Trim

214-KIL (Entry Lever)

Keyway

Schlage C Keyway

Strikes

Roller Strike

Fasteners

Universal hardware pack for wood and hollow metal

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Hand

Non-handed

Stile Type

Wide (Standard)

Door Applications

1-3/4″ Thick Hollow Metal Doors / Wood Doors
