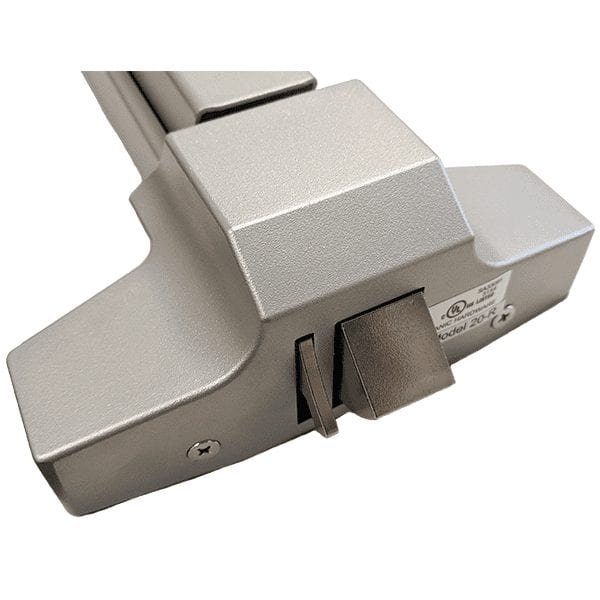

Falcon 20-R-KIL-NL Rim Panic Bar Exit Device with Night Latch Lever

Usually Ships: 2-3 Business Days
  • ANSI/BHMA Grade-1 Certified
  • For interior or exterior doors
  • Includes 214KIL-NL lever trim (always locked – unlock w/ key)

Available Options:

Clear

Falcon 20-R-KIL-NL Panic Rim Exit Device with Night Latch Key-in-Lever Trim

Falcon® prides itself on dependable, cost-effective products that meet or exceed life safety and building requirements. The Falcon 20 Series, pushbar exit devices are ideal for light-to-medium duty door applications, such as commercial, multi-family, office, and retail. This Grade-1, affordable exit device is offered in multiple functions, lever, and trim options. With the Falcon 20 Series, you’re choosing a quality performing, medium duty pushbar exit device with all metal construction at an unmatched value.

The Falcon 20 Series exit device is an affordable and reliable choice. A certified ANSI/BHMA A156.3-2014 Grade-1 exit device these pushbars are non-handed and will accommodate 161 door prep. The series also offers multiple functions and a full trim complement, including 161 key in lever.

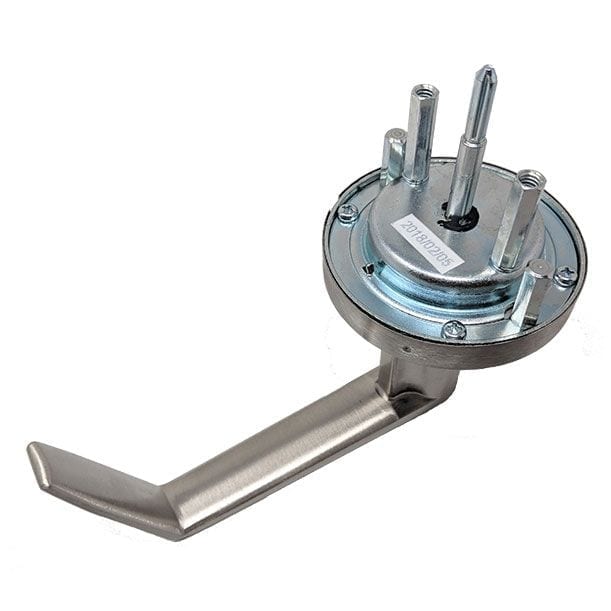

  • Includes Storeroom/Night Latch Lever (Always Locked – Unlock w/ Key)
  • Durable, steel mechanism case construction
  • Standard features include scratch-resistant surfaces and built-in deadlocking
  • Roller Strike Standard
  • 3-1/2″ Minimum stile width
Brand

Finishes

689 Aluminum with 630 Satin Stainless Steel Lever, US32D (630) Satin Stainless Steel

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Strikes

Roller Strike

ANSI Grade

Certified ANSI/BHMA A156.3-2014 Grade 1

Usage

Light Duty

Keyway

Schlage C Keyway

Trim

214-KIL-NL (Night Latch Lever)

Fasteners

Universal hardware pack for wood and hollow metal

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Hand

Non-handed

Fire Rating

20R: Non-Fire-Rated – F20R: 3-Hour Fire-Rated

Stile Type

Wide (Standard)

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Door Applications

1-3/4″ Thick Hollow Metal Doors / Wood Doors
