Falcon 20-R-KIL-BE Rim Panic Bar Exit Device with Passage Lever

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Grade-1 Certified
  • Passage function (lever always active)
  • Includes 214KIL-BE lever trim

Available Options:

Clear

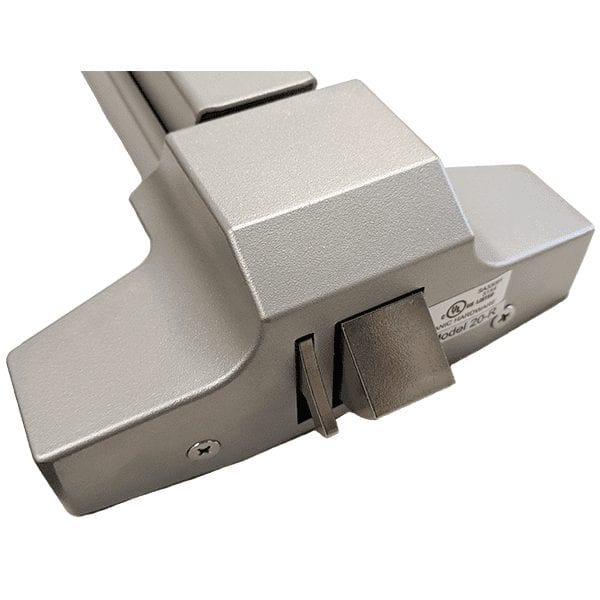

Falcon 20-R-KIL-BE Panic Rim Exit Device with Passage Lever Trim

Falcon® prides itself on dependable, cost-effective products that meet or exceed life safety and building requirements. The Falcon 20 Series, pushbar exit devices are ideal for light-to-medium duty door applications, such as commercial, multi-family, office, and retail. This Grade-1, affordable exit device is offered in multiple functions, lever, and trim options. With the Falcon 20 Series, you’re choosing a quality performing, medium-duty pushbar exit device with all metal construction at an unmatched value.

The Falcon 20 Series exit device is an affordable and reliable choice. A certified ANSI/BHMA A156.3-2014 Grade-1 exit device these pushbars are non-handed and will accommodate 161 door prep. The series also offers multiple functions and a full trim complement, including 161 key in lever.

  • Includes Passage Lever (Lever Always Unlocked and Active)
  • Durable, steel mechanism case construction
  • Standard features include scratch-resistant surfaces and built-in deadlocking
  • Roller Strike Standard
  • 3-1/2″ Minimum stile width
  • Panic listed
  • F Model: UL listed (3-hour fire-rated)
Brand

Finishes

689 Aluminum with 630 Satin Stainless Steel Lever, US32D (630) Satin Stainless Steel

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Stile Type

Wide (Standard)

Usage

Light Duty

ANSI Grade

Certified ANSI/BHMA A156.3-2014 Grade 1

Fire Rating

20R: Non-Fire-Rated – F20R: 3-Hour Fire-Rated

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Trim

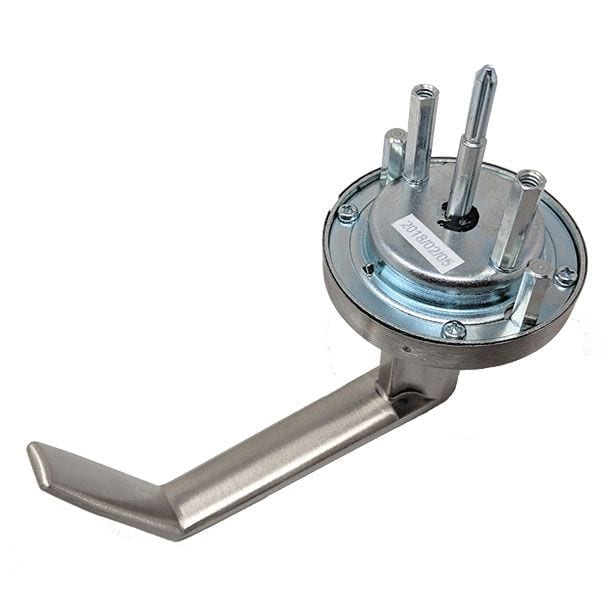

214-KIL-BE (Passage Lever)

Hand

Non-handed

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Strikes

Roller Strike

Fasteners

Universal hardware pack for wood and hollow metal

Door Applications

1-3/4″ Thick Hollow Metal Doors / Wood Doors
