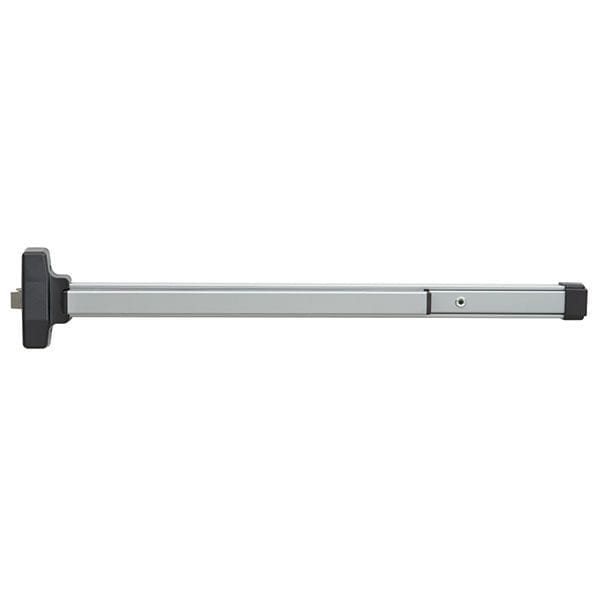

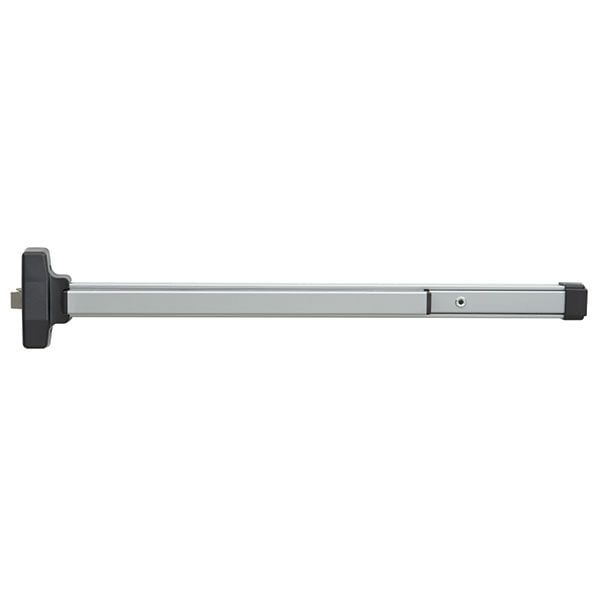

Falcon 19-R-EO Narrow Stile Rim Exit Device

Usually Ships: 1-2 Business Days
  • ANSI/BHMA Certified Grade-1
  • Exit Only (outside trim sold separately)
  • Fits Door Stiles as Narrow as 1-3/4″

Available Options:

Clear

Falcon 19-R-EO Grade 1 Rim Exit Device, Narrow Stile Pushpad, Exit Only, Accepts Various Trim

The Falcon 19 Series narrow stile exit devices provide value and dependability on light to medium-duty door applications. They can be mounted on the interior or exterior single or double doors, where traffic is not consistently heavy. Ideal for commercial, multi-family, office, retail, and other medium-traffic installations, the 19 Series exit devices are an affordable and reliable choice. A certified ANSI/BHMA A156.3-2001 Grade 1 exit device, they are non-handed and covers a 161 door prep.

  • EO = Exit Only (Outside Trim Sold Separately)
  • Centercase and end cap are powder-coated black only
  • Non-handed
Brand

Finishes

689 Aluminum, 695 Dark Bronze, US32D (630) Satin Stainless Steel

Length

3'0" (2'6" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Fire Rating

Non-Fire-Rated

Hand

Non-handed

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Medium Duty

Stile Type

Narrow

Stile

1-3/4" Minimum

Latchbolt

Deadlatching, 3/4" throw

Dogging Feature

Half turn hex dogging standard

Projections

2-1/2" in neutral position, 1-7/8" in dogged position. Pushbar height is 1-3/4"

Strike

Standard – 570

Door Applications

1-3/4" Metal, Wood or Aluminum Doors
