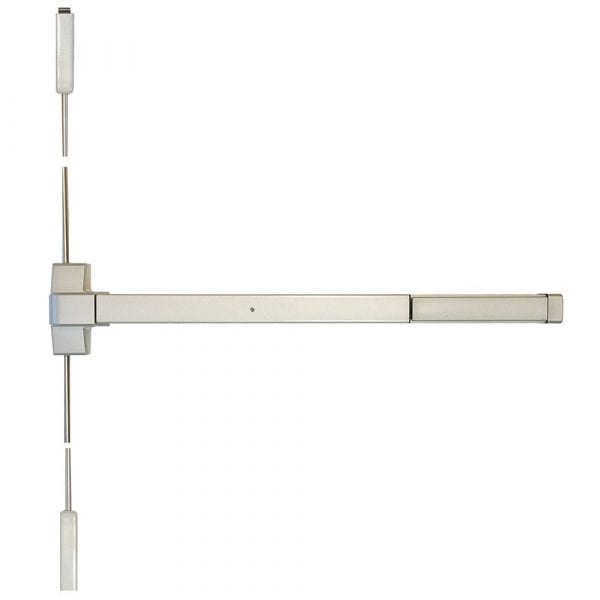

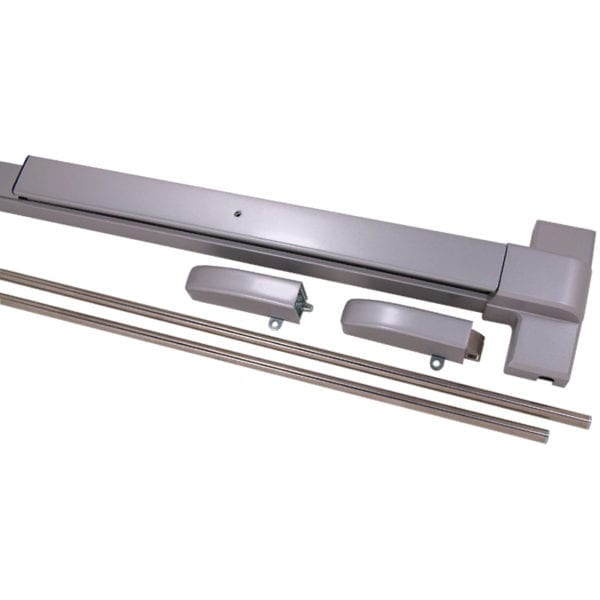

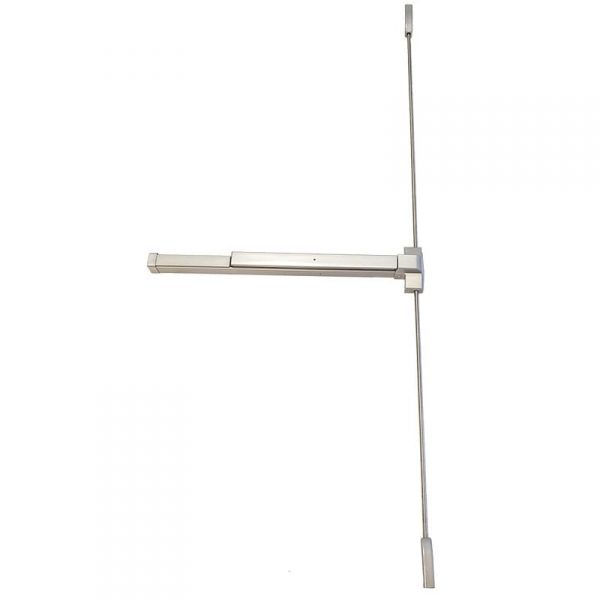

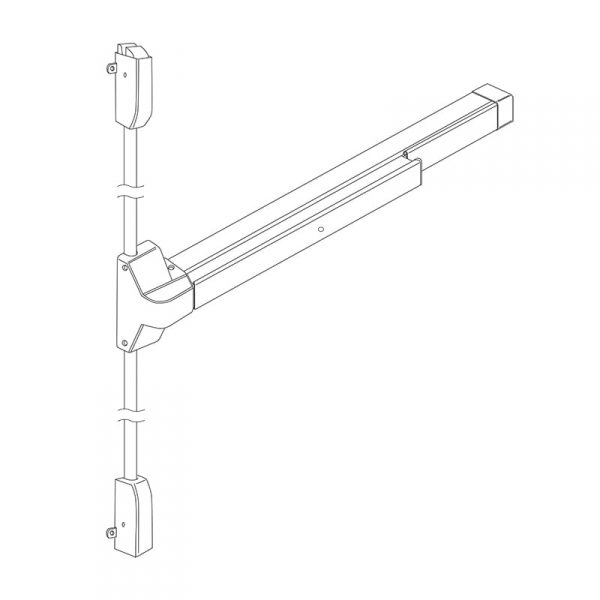

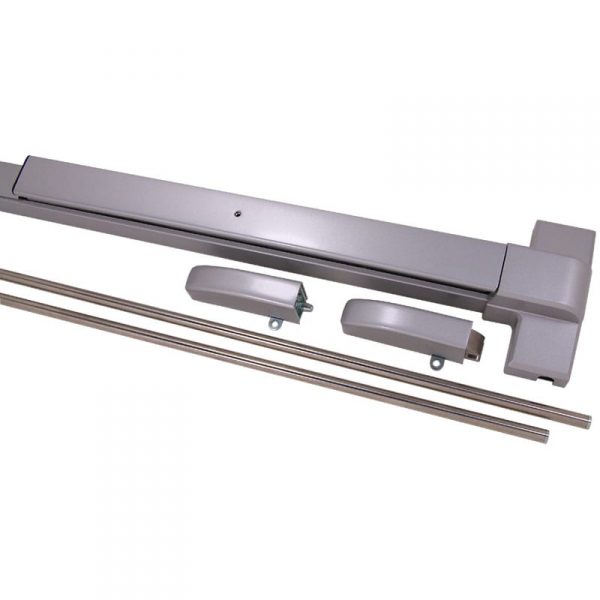

Design Hardware 2000V Surface Vertical Rod Panic Exit Device

Usually Ships: 3-5 Days
  • Meets ANSI A156.3 – Grade-1 Standards
  • For use w/ Metal or Wood Doors
  • Meets ADA Requirements

Available Options:


The 2000V is an economical exit device option that is competitively priced to keep your project on budget. The 2000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

  • Exit Only (Outside Trim Sold Separately)
  • UL Listing: UL Listed for Panic Exit Hardware

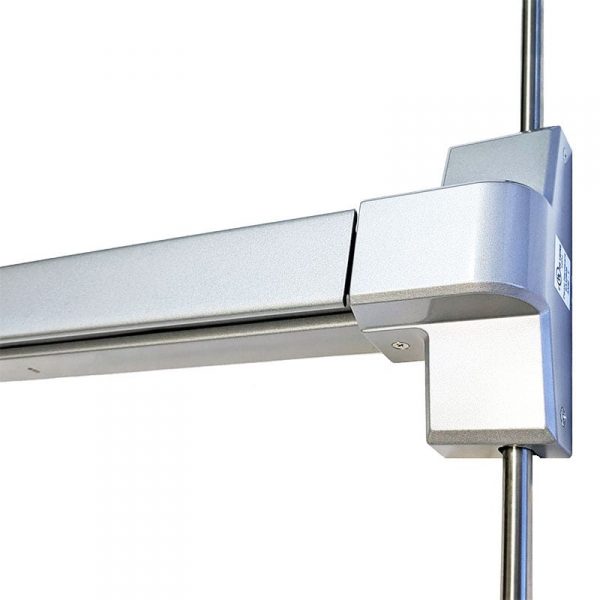

  • Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
  • Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide
  • Top Latch: U Shaped Top Latch for Secure Engagement with strike
  • Bottom Latch: Drop Bolt Style Bottom Latch Secures into flat strike & hole in the floor


Aluminum, Dark Bronze


33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")

Door Height

7'0" Standard – Extended top rods available for up to 10'0" tall doors

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards


Medium Duty


None – Exit Only (Outside Trim Sold Separately)

Fire Rating


ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim


Easily Re-handed in the field – Shipped as RHR

Dogging Feature

Half turn hex dogging standard


Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)


2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)

Device Type

Surface Rod Device

2000V Installation Instructions
