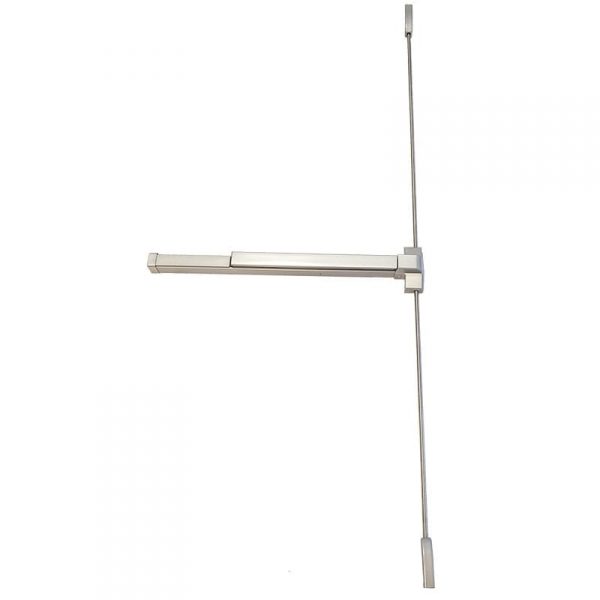

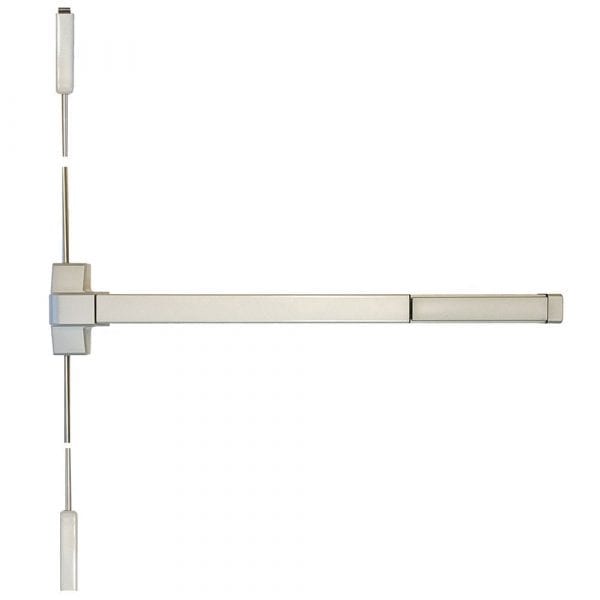

Design Hardware F2000V Fire-Rated Surface Vertical Rod Exit Device

Usually Ships: 2-3 Days
  • Meets ANSI A156.3 – Grade-1 Standards
  • For use w/ Metal or Wood Doors
  • UL Listed, Fire-Rated up to 3 Hours

Available Options:

  • Aluminum
  • Dark Bronze

The F2000V is an economical fire-rated exit device option that is competitively priced to keep your project on budget. The F2000V meets ANSI A156.3-Grade 1 Standards and is UL listed, providing you with durability, toughness, and safety. Design Hardware products meet or exceed industry standards and can be substituted for any other specified brand.

  • Exit Only (Outside Trim Sold Separately)
  • UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Center Case Dim.: 6″ Height x 2-5/16″ Wide x 2-1/2″ Thick – 4″ Minimum stile required
  • Mechanism Case Dim.: 1-5/8″ Height x 1-13/16″ Wide
  • Top Latch: U Shaped Top Latch for Secure Engagement with strike
  • Bottom Latch: Drop Bolt Style Bottom Latch Secures into flat strike & hole in the floor


Aluminum, Dark Bronze


33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")

Door Height

7'0" Standard – Extended top rods available for up to 10'0" tall doors

ANSI Grade

Meets ANSI A156.3 – Grade 1 Standards


Medium Duty


None – Exit Only (Outside Trim Sold Separately)

Fire Rating

UL Listed up to 3 Hours

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim


Easily Re-handed in the field – Shipped as RHR

Dogging Feature



Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)


2-1/2″ Undogged – 1-13/16″ Dogged (Bar Depressed)

Device Type

Surface Rod Device

F2000V Installation Instructions
