Design Hardware 1000R x LE-08A Rim Exit Device with Escutcheon Passage Lever

Usually Ships: 1-2 Business Days
  • Heavy Duty – ANSI A156.3 Grade 1 Standards
  • For use w/ 1-3/4″ Metal and Wood Doors

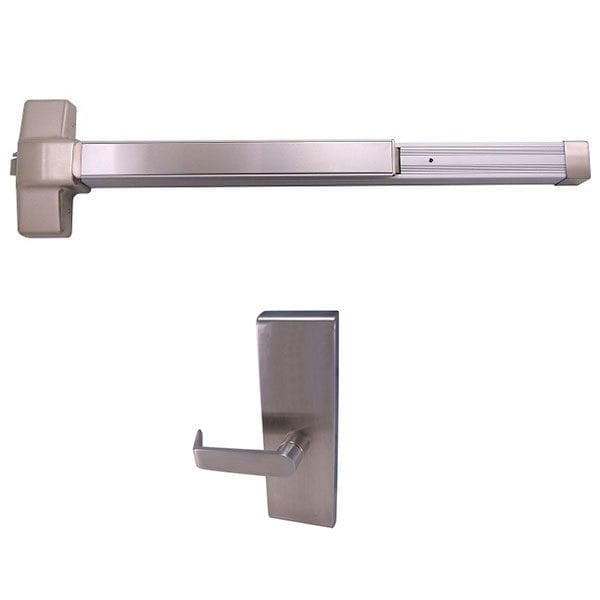

  • 1000R with LE-08A Escutcheon Passage Lever Trim

Available Options:

Clear

The 1000 Series meet ANSI A156.3-Grade 1 Standards and comply to the ADA American Disabilities Act – providing you with durability, toughness, and safety. Design Hardware products all meet or exceed industry standards and can be substituted for any other specified brand. The LE trim is the heaviest duty trim Design Hardware offers. It is equipped with a unique tailpiece (actuator shaft) that is a direct drive design putting all torque straight into the device. This LE trim also features a field-friendly handing solution.

  • UL Listing: UL Listed for Panic Exit Hardware
  • (Optional) Fire Rating: UL Listed for “A” Label 3 Hour Fire Doors (no dogging on fire-rated devices)
  • Center Case Dim: 8″ Height x 2-7/8″ Wide x 2-13/16″ Thick – 4-1/2″ Minimum stile required
  • Mechanism Case Dim: 2-3/16″ Height x 2-3/16″ Wide

LE-08A Escutcheon Passage Lever Trim

  • Passage Function – Levers Always Free and Open
  • Steel, Zinc Dichromated Chassis – Stainless Steel Exterior Housing
  • Thru bolts to head of exit device
  • 5″ Solid Stainless Steel lever – 2-7/8″ total projection
  • Escutcheon: 3″ Wide x 9″ Height x 3/4″ Projection – Will cover 161 door prep
  • Door Thickness: 1-3/4″ standard
Brand

Finish

Dark Bronze, Stainless Steel

Model

1000R – w/ Dogging Feature, F1000R – 3 Hour Fire-Rated Device (No Dogging)

Length

33" (for doors 2'8" to 3'0"), 42" (for doors 3'4" to 4'0")

Trim

LE-08A (Escutcheon Passage Lever)

Construction

Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis

ANSI Grade

Meets & Exceeds ANSI A156.3 – Grade 1 Standards

Usage

Heavy Duty

Fire Rating

1000R Non-Rated – F1000R 3 Hour UL Listed

ADA Compliance

Meets ADA requirements ANSI A117.1 with Lever Trim

Handing

Completely Reversible

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Latchbolt

Deadlocking latchbolt with 5/8″ projection

Strike

Roller Strike with 5/8″ projection & 1/8″ shim

Fasteners

Wood, Machine & Self Tapping Machine Screws

Stile Type

Wide (Standard)

Projections

3-3/8″ Undogged – 2-13/16″ Dogged (Depressed)

1000R Installation Instructions 1000R Template F1000R Installation Instructions F1000R Template LE Trim Installation Instructions
