Air Louvers 700A Two Piece Louver with Inverted Split Y Blades for 1-3/8″ Thick Door

Usually Ships: 20-30 Business Days
  • 18-Gauge steel frame and blades
  • Minimum 1-3/8” thick door
  • Standard mineral bronze finish

Available Options:

Clear

Product Overview

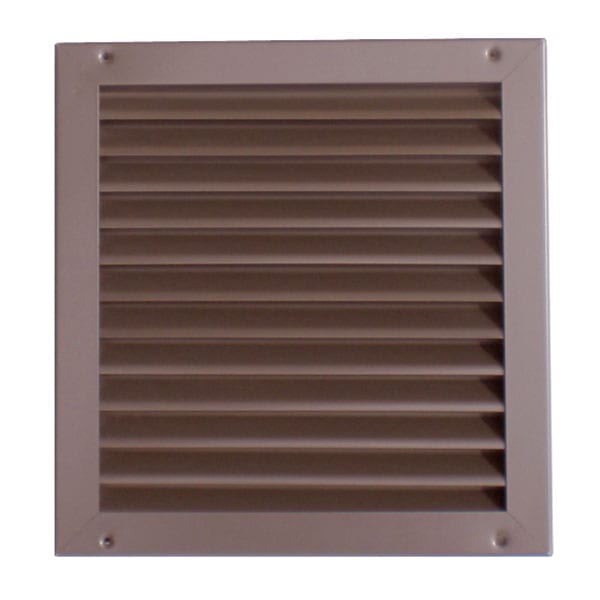

Two rows of inverted split “Y” blades louver with two-piece design for 1-3/8″ thick wood or metal doors

  • Minimum 1-3/8″ thick door

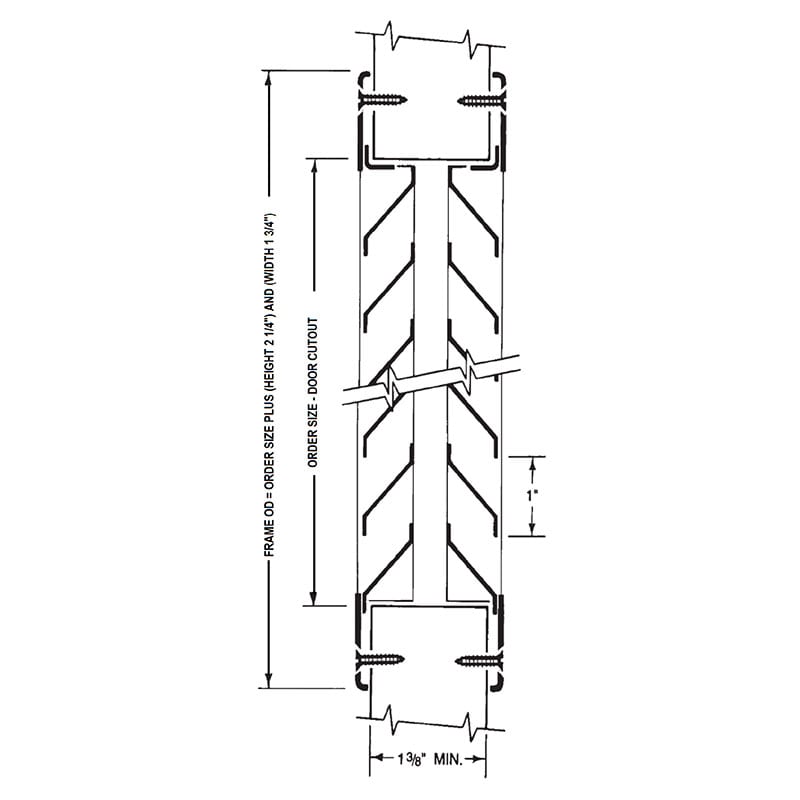

  • 2 rows of inverted split “Y” blades at 1″ intervals are attached by interlocking construction to the 3/4″ deep welded frame
  • 1-1/4″ trim, with mitered and welded corners and countersunk mounting holes
  • Non-Vision Design
  • Order size is equal to door cutout size





Brand

Size

12" x 12", 18" x 12", 18" x 18", 24" x 12", 24" x 24"
Finishes

Mineral Bronze (B)
Construction

18 gauge CRS frame and louver blades
Material

Cold Rolled Steel
Free Flow Area

50% Free Area
Fasteners

#8 x 3/4" Flathead Phillips SMS – Included
Door Thickness

1-3/8"
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
