Air Louvers VSIG Vision Lite Frame for 1/4″ Glass, 1-3/8″ Thick Door

Usually Ships: 20-30 Days
  • 20-Gauge cold rolled steel frame
  • For 1/4″ glass (sold separately)
  • For 1-3/8″ thick doors

Available Options:

Clear

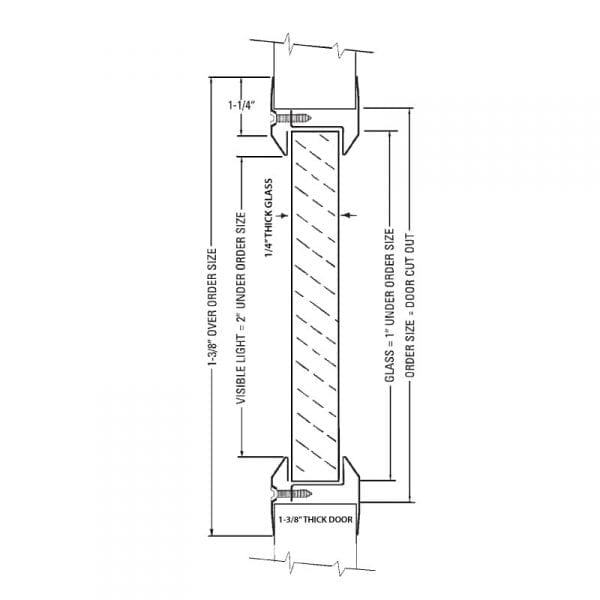

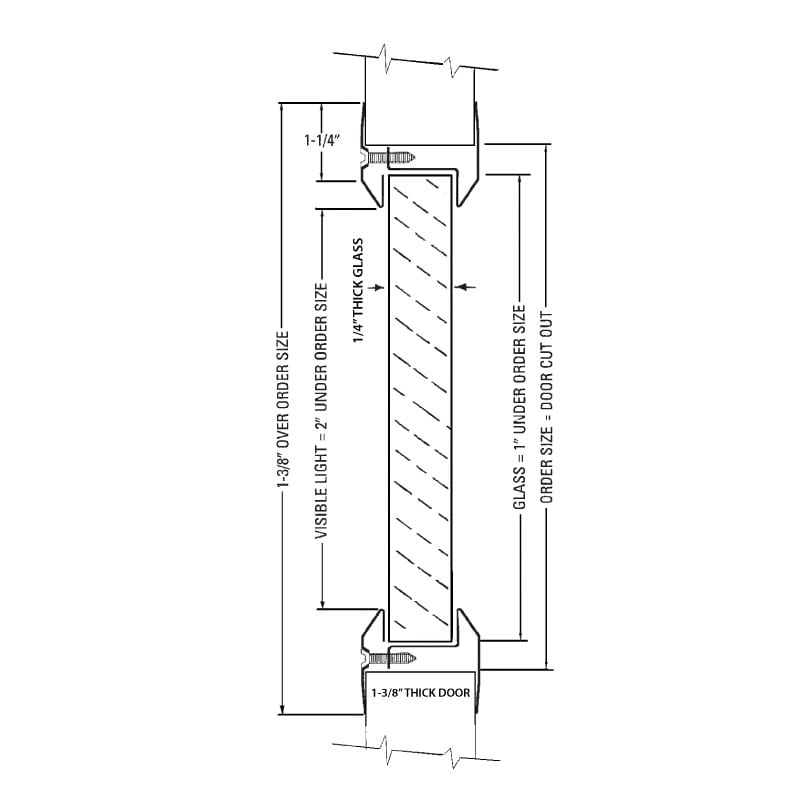

Slimline steel vision lite frame for 1/4″ thick glass, for 1-3/8″ thick doors

  • Mitered and welded corners with countersunk mounting holes
  • Order size = door cutout size
  • Visible light is 2″ under rough opening size. Glass size is 1″ under order size.
  • Glass/glazing tape not included – glazing to be ordered separately from our glazing section.





This product is made to order and non-returnable or refundable.

Brand

Finish

Gray (G), Mineral Bronze (B)

Order Size

5" x 35", 6" x 27", 7" x 22", 8" x 32", 12" x 12", 18" x 18", 18" x 30", 18" x 32", 24" x 24", 24" x 30", 24" x 32"

Frame Profile

Low

Frame Construction

20 Gauge Cold Rolled Steel

Frame Fasteners

#8 x 1" Flathead Phillips SMS – Included

Glass Thickness

1/4"

Frame Fire-Rating

Non-Fire-Rated

Door Thickness

1-3/8"

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
