Accentra (Formerly Yale) AUR 8802FL Privacy, Bedroom, or Bath Mortise Lock with Double Indicator Inside/Outside, Augusta Lever, Standard Rose

Usually Ships: 20-30 Business Days
  • Heavy-Duty, ANSI/BHMA Certified Grade-1
  • ANSI function: F19 – privacy
  • Includes inside and outside occupancy indicators

Available Options:


Accentra (formerly Yale) AUR8802FL ANSI/BHMA Grade 1 Certified Mortise Lock, Privacy, Bedroom, or Bath Function, Double Indicator Inside and Outside, Sectional Augusta AUR Lever/Rose Trim

Accentra 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications.

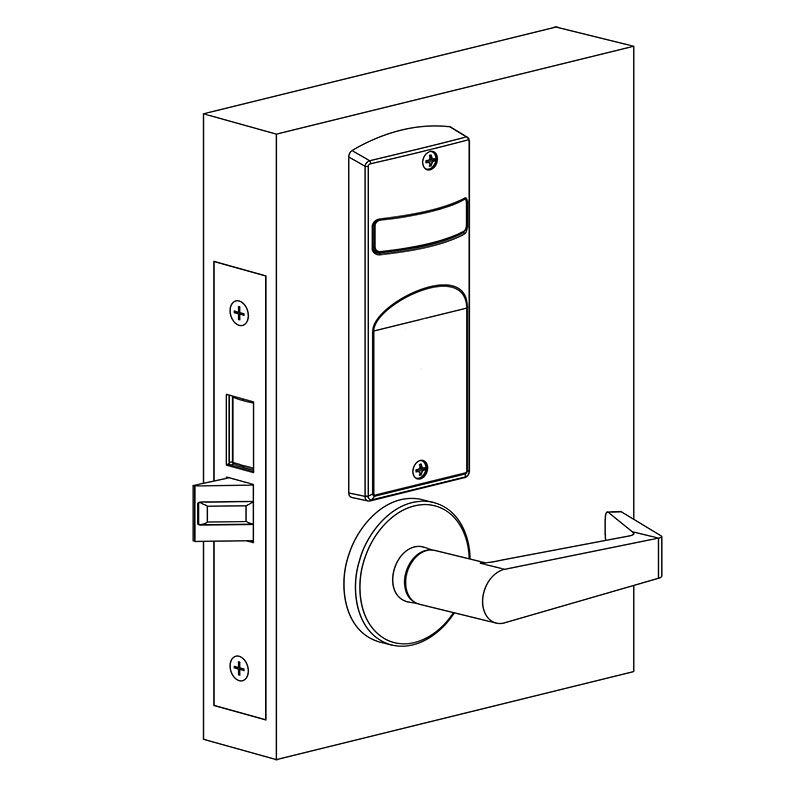

8800 Series indicators can be used in a variety of applications and are most commonly used to identify occupancy or display the locked/ unlocked status of a room.

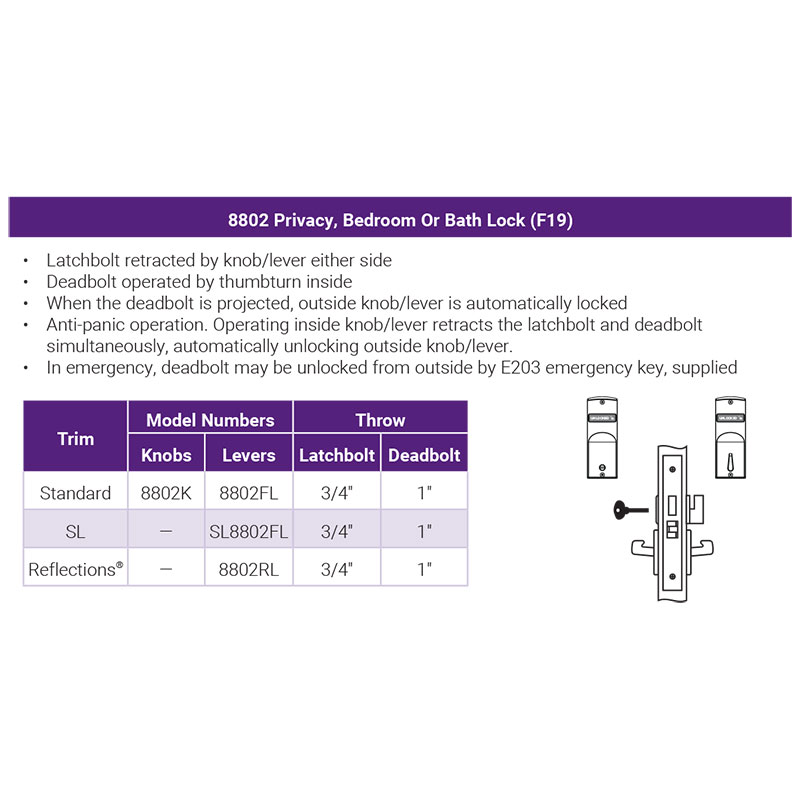

ANSI F19 – Privacy, Bedroom or Bath – Latchbolt retracted by lever either side. Deadbolt operated by thumbturn inside. When the deadbolt is projected, outside lever is automatically locked. Anti-panic operation. Operating inside lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside lever. In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied.


  • Large viewing indicator window
  • Patented curved design for viewing at multiple angles
  • Highly reflective viewing window for increased safety
  • Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
  • UL/cUL fire rated up to 3 hours
  • Windstorm Certified (refer to local codes)
  • 3/4″ stainless steel throw
  • Door Thickness: 1-3/4″ standard
  • Field reversible handing

Indicator Option Codes

  • V21 Double Indicator (Vacant/Occupied, Green/Red Outside – Unlocked/Locked, Green/Red Inside)
  • V54 Double Indicator (Vacant/Occupied, White/Red Outside – Unlocked/Locked, White/Red Inside)


  • Restrooms
  • Quiet rooms
  • Nursing mother’s rooms
  • Classroom doors




605 Bright Brass, 606 Satin Brass, 613e Dark Oxidized Satin Bronze equivalent, 626 Satin Chrome, BSP Black Suede Powder Coat

Lock Function

Privacy with Indicator

ANSI Function



Heavy Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.13, Series 1000

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating

UL and cUL Listed – up to 3 Hours


Right hand is standard; Reversible in the field




3/4" throw, stainless steel one-piece anti-friction


4-7/8" Curved Lip Strike with a 1-1/4" lip length


wrought steel, zinc dichromated


3/8" solid steel, fine-blanked and heat treated for additional strength

Armored Front

8" x 1-1/4"

Door Thickness


Lever Design

AUR (Augusta)


10 Years

Accentra/Yale 8800 Installation Instructions
