Accentra (Formerly Yale) 4410 Door Closer with Hold Open Arm

Usually Ships: 1-2 Business Days
  • Heavy-Duty, ANSI A156.4, Grade 1 certified
  • Includes friction hold open arm
  • Regular, top jamb or parallel arm mount

Available Options:


Accentra (formerly Yale) 4410 Institutional Door Closer with Hold Open Arm, Size 1 to 6, Heavy-Duty Grade-1

The 4400 Series Institutional Door Closers offer customers the ideal combination of superior performance, quality, and strength. With new pinion and piston materials, improved valve design, and staked valves, the closers are the most efficient, dependable closers in the industry. The addition of a size 1-6 spring for the 4400 also simplifies the process of specifying and ordering product.

Includes hold open arm

Achieved by means of friction or ball and detent/roller. Friction hold open has a range of 90° to 180° using template location and mechanical adjustment. Ball and detent or roller hold open is effective in a range of 85° to 110°. Hold open arm door closers are not permitted to be used on fire door assemblies.

  • ANSI/BHMA Grade 1 Certified
  • Manufactured in an ISO 9001 facility
  • Exceeds 25 million cycles
  • Cast aluminum body
  • Adjustable spring sizes 1 through 6 (ADA compliant)
  • Tri-packed: regular, parallel, and top jamb mounting
  • Rack and pinion design
  • Staked valves
  • Separate and independent latch, sweep, and backcheck intensity valves
  • Non-handed
  • Self-drilling screws
  • 30-year limited warranty


  • ANSI/BHMA A156.4, Grade 1 certified
  • Designed to comply with requirements for the Americans with Disabilities Act (ADA) and ANSI standard A117.1
  • Manufactured in an ISO 9001, ISO 14001 facility


689 Aluminum (Powder Coated), 690 Statuary Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), BSP Black Suede Powder Coat

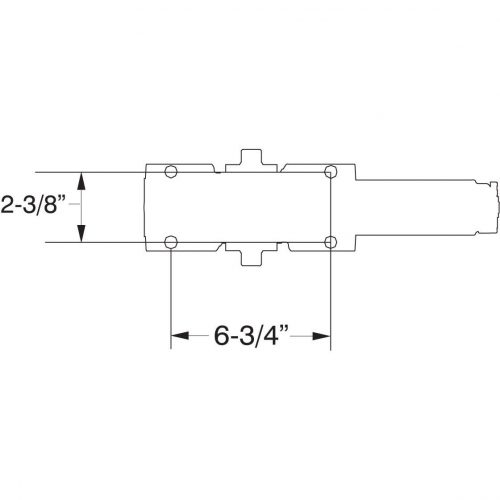

Templating (Hole Pattern)

2-3/8" x 6-3/4"


Heavy Duty

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6

ANSI/BHMA Standard

ANSI/BHMA A156.4, Grade 1 certified

ADA Compliance

Meets ADA requirements – A117.1 Accessibility Code

Fire Rating



Full Cover



Door Application

Hollow Metal or Wood


30 Years
