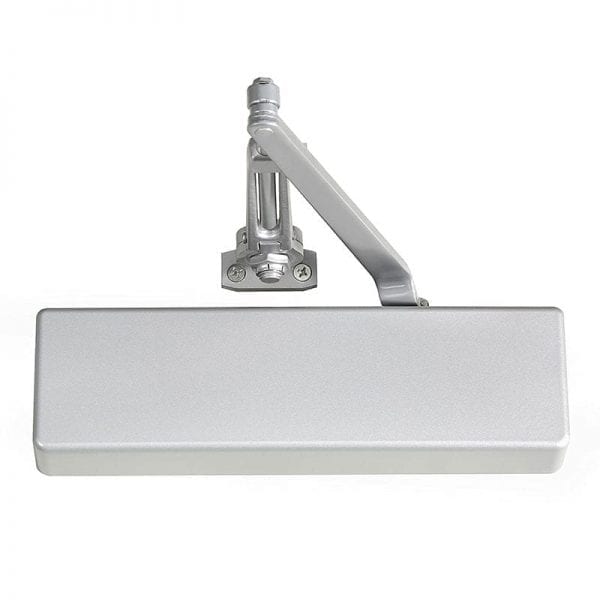

Norton 7500H Door Closer with Hold Open Arm

Usually Ships: 1-2 Business Days
  • Heavy Duty, ANSI Grade-1 certified
  • Includes hold open arm
  • Regular, top jamb or parallel arm mount

Available Options:


Norton 7500H Grade 1 Tri Mount Friction Hold Open Door Closer, Push or Pull Side, Regular Arm, Size 1 to 6

The 7500 Series is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in facilities that demand reliability, such as government, healthcare, and educational institutions.

  • Includes 7701-8 friction hold-open arm and 1628H Soffit Adapter Plate
  • Tri-Style® packaging; tri-packed for regular, top jamb or parallel arm mounting
  • Standard, separate and independent, latch, sweep and backcheck intensity valves
  • Non-handed

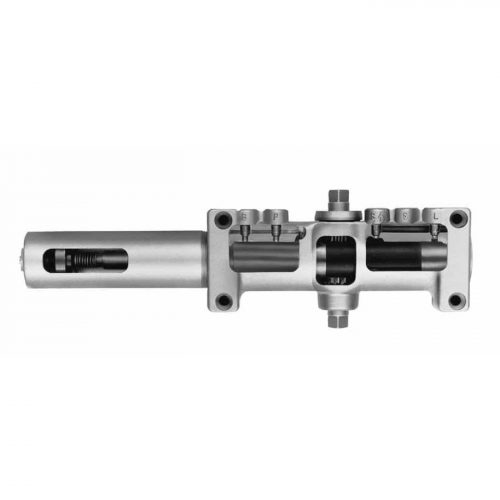

  • Rack-and-pinion design
  • Cast aluminum body
  • Adjustable spring sizes 1-6


689 Aluminum (Powder Coated), 690 Statuary Bronze (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), BSP Black Suede Powder Coat, WSP White Suede Powder Coat

Templating (Hole Pattern)

2-3/8" x 6-3/4"

Mounting Options

Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)


Heavy Duty

Body Construction

Cast Aluminum Body

Spring Size

Adjustable Spring Size 1-6




Full Cover

Door Applications

Hollow Metal, Wood or Aluminum


30 Years
