Yale 6100 x AU-NTT610-NR Panic Rim Exit Device with nexTouch PushButton Lever

Usually Ships: 2-3 Days
  • Heavy Duty – ANSI/BHMA Grade-1 Certified
  • Includes electronic NTT610 pushbutton lever
  • Up to 500 unique PIN codes, mechanical key override

Available Options:

Clear

Yale 6100/6100F Rim Exit Device, AU-NTT610-NR-626 nexTouch PushButton Rim Exit Device Trim

With its robust, modern design and smooth, quiet operation, the Yale 6000 Series exit device provides an attractive solution that can withstand the rigors of multi-family, retail, office, and other commercial exits. The stylish, clean lines are visually appealing and blend with any décor. The 6000 can be used in many types of commercial facilities, including office buildings, retail environments, and mixed-use facilities. Ideal for facilities that require modern form and full functionality to meet their life safety needs.

The 6100ED(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood, or composite materials. Designed for application in high-use areas.

  • Smooth, Quiet Operation: Unique design provides noise reduction and smooth operation of the touch bar
  • Stylish: Attractive, modern design blends aluminum rail with architectural finishes
  • Strong and Reliable: ANSI/BHMA Grade 1 certified for long life
  • Secure: Multiple security features provide added resistance against vandalism and authorized entry

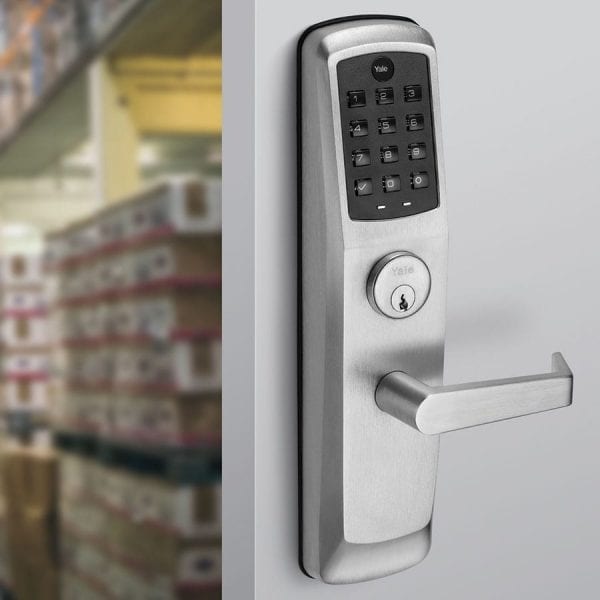

AU-NTT610-NR Keypad Lever Trim

  • Standalone Electronic Rim Exit Device Trim
  • Up to 500 Unique PIN Codes
  • Includes 2153 cylinder
  • 626 satin chrome lever (device is 630 satin stainless steel finish)
  • Easily Re-handed in the field – Shipped as RHR
  • Bolt retracted by pushbar on interior and lever on outside except when outside lever is locked.
  • Mechanical Key Override (key override unlocks the outside lever only)
  • 9V battery power backup prevents lockout even if the batteries fail
  • Easy Traffic Control: Engineered to provide an easy-to-use access control solution to protect your facility and personnel
  • Key-free Convenience: Reduces investment and maintenance costs associated with managing keys
Brand

Finishes

630 Stainless Steel Device w/ 626 Satin Chrome Lever

Length

36" (for 30" to 36" Doors), 48" (for 42" to 48" Doors)

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Lever Design

AU (Augusta)

Cylinder

2153 Yale E1R Para Keyway

Power

Battery-operated, with low power indicator, or hard-wired (9 Volt external power supply) option. Blinking designation signals internal 4 AA alkaline batteries are low.

Stile Type

Wide (Standard)

Minimum Stile Width

4-1/2"

Fire Rating

6100: Non-Rated – 6100F: UL/cUL Listed for use on fire doors up to 3 hours

Usage

Heavy Duty

ANSI/BHMA Standard

Certified ANSI/BHMA A156.3, Grade 1

Handing

Completely Reversible

Latchbolt

3/4" deadlocking stainless steel pullman-type

Strike

757F, 793 optional (double door application, panic only)

Projections

3-1/4" active, 2-1/2" dogged

Fasteners

Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware

Door Applications

1-3/4" Metal, wood or composite doors

Yale 6000 Series Rim and Squarebolt Exit Device Installation Instructions Yale nexTouch Keypad Exit Trim Installation and Programming Instructions
