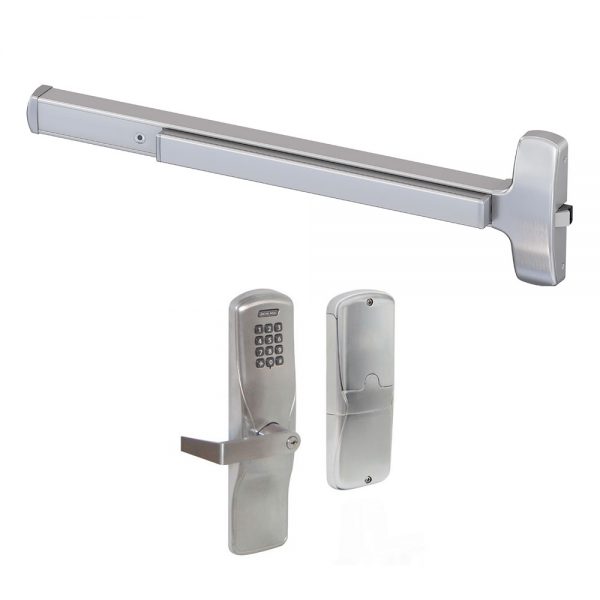

Falcon 25R-CO-100 Rim Exit Device with CO-100-993R-70 Electronic Keypad Lever

Usually Ships: 2-3 Days
  • Heavy Duty – Grade-1 ANSI Certified
  • Includes Schlage CO-100-993R-70 Electronic Keypad Lever
  • Up to 500 Unique PIN Codes – Mechanical Key Override

Available Options:

  • Anodized Aluminum
  • Satin Chrome
Clear

Falcon 25-R Series panic rim exit device with keypad lever trim is for use with single doors and double doors with a mullion.

No exposed screws or rivets on the back of the device for a streamlined design and clean lines – when installed on full glass doors. The Falcon 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch, and a streamlined touch bar design.

  • Deadlocking latchbolt standard
  • Stock Sizes: 3′ and 4′ – Cut to size in the field

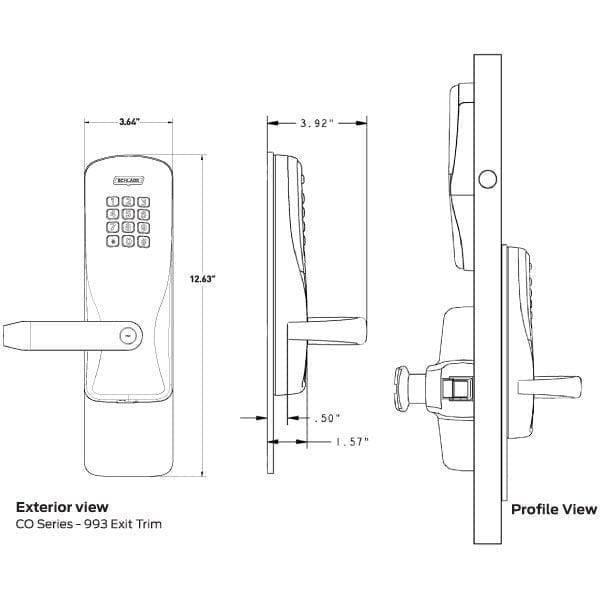

Schlage CO-100-993R-70-KP-RHO Keypad Electronic Rim Exit Device Trim – US26D Satin Chrome

The CO Series 993 Exit Trim utilizes universal hardware to simplify installation of offline trim to 25 Series exit devices.

  • 4 AA batteries included – up to 2 year battery life
  • Helps to minimize key distribution to ensure the integrity of the key system over time
  • Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
  • UL 294 Listed, ANSI/BHMA A156.25, ANSI/BHMA Grade-1 Certified
  • Key Override (Schlage C Keyway)
Brand

Finishes

US26D (626) Satin Chrome, US28 (628) Anodized Aluminum

Length

3'0" (2'8" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Trim

Schlage CO-100-993R-70-KP-RHO – US26D

Trim Brand

Schlage

Keyway

Schlage C Keyway

Hand

Device Non-Handed – Lever Field Reversible

Usage

Heavy Duty

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Fire Rating

25CO-100: Non-Fire-Rated – 25CO-100-F: 3 Hour Fire-Rated

Latchbolt

Stainless steel, 3/4" throw – Deadlocking

Strike

299 roller strike standard, 299F strike with fire-rated device

Fasteners

All mounting screws are concealed, sheet metal screws and machine screws standard

Projections

2-3/4" maximum, 2" dogged

Stile Type

Wide (Standard)

Minimum Stile Width

4" w/ Standard Roller Strike

Door Applications

1-3/4″ Thick Metal or Wood Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Falcon_25-R_F-25-R_Installation_Instructions Schlage_CO-Series_for_Exit_Device_Installation_Instructions
