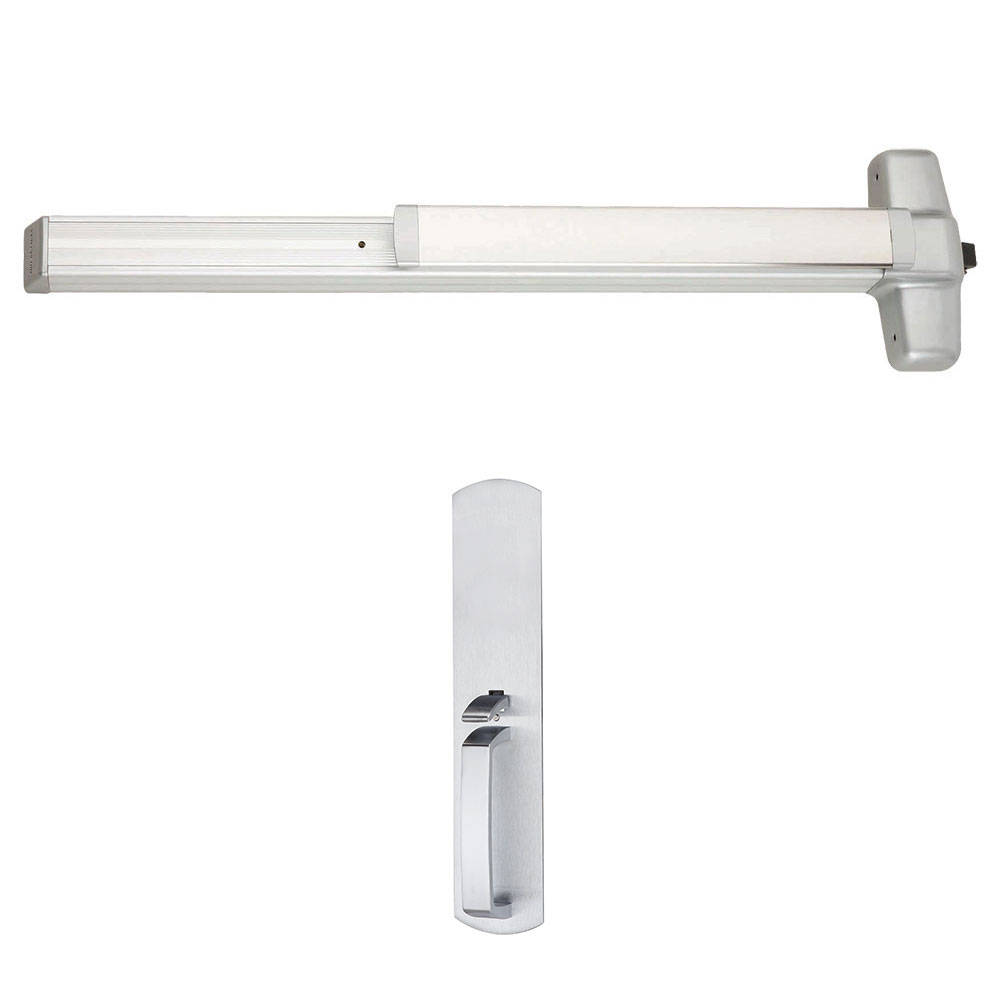

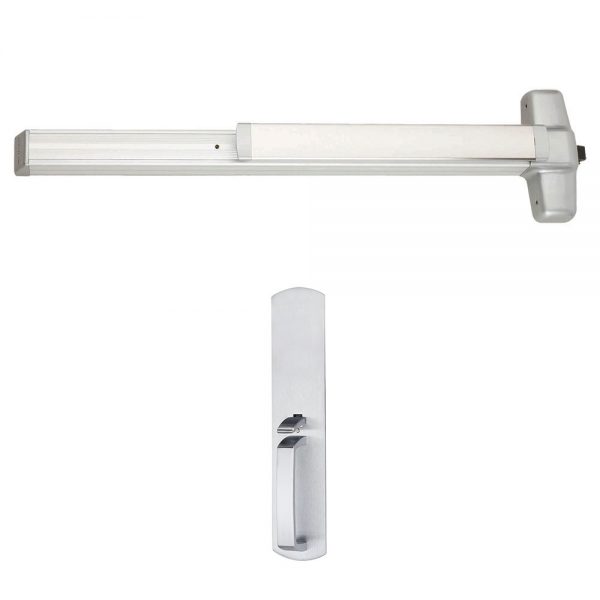

Von Duprin 99TP-BE Rim Exit Device with Blank Escutcheon Thumbpiece Pull

Usually Ships: 1-2 Business Days

Heavy Duty, ANSI/BHMA Grade-1, Made in USA
ANSI function 15 (always operable, no cylinder)
Includes 990TP-BE-R/V blank escutcheon thumbpiece pull

Available Options:

Finish

Length

Fire-Rated

Clear

Quantity:

Von Duprin 99TP-BE Grade 1 Rim Exit Device with Blank Escutcheon Thumbpiece Pull, Wide Stile Pushpad, Field Reversible

High-performance, wide stile rim exit device with heavy-duty pull trim for high use and abuse applications

Often regarded as one of the world’s finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device.

Deadlocking Latchbolt Standard
299 Roller Strike Standard
Stock Sizes: 3′ and 4′ – Cut to size in field

990TP-BE Thumbpiece Pull Trim

ANSI Function: 15 (Always operable, no cylinder)
Escutcheon plate size: 3″ x 14-13/16″ x 3/32″
Projection: 2″
Pull center to center: 5-1/2″

Brand	Von Duprin
Finishes	US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
Length	3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)
Includes Trim	Yes
Trim	990TP-BE (blank escutcheon, passage)
Hand	Non-handed
ANSI Grade	Certified ANSI A156.3-2001 Grade 1 standards
Usage	Heavy Duty
Fire Rating	99TP-BE: Non-Fire-Rated – 99TP-BE-F: UL Listed A or B label Fire-Rated (3 Hours)
Latchbolt	Deadlatching, 3/4" throw
Strike	299 roller strike standard, 299F strike with fire-rated device
Fasteners	Includes screws for metal and wood doors
Center Case	8" x 2-3/4" x 2-3/8"
Dogging Feature	Hex key dogging standard on non-fired-rated devices
Projections	Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Stile Type	Wide (Standard)
Door Applications	1-3/4″ Thick Doors
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
