Product Overview

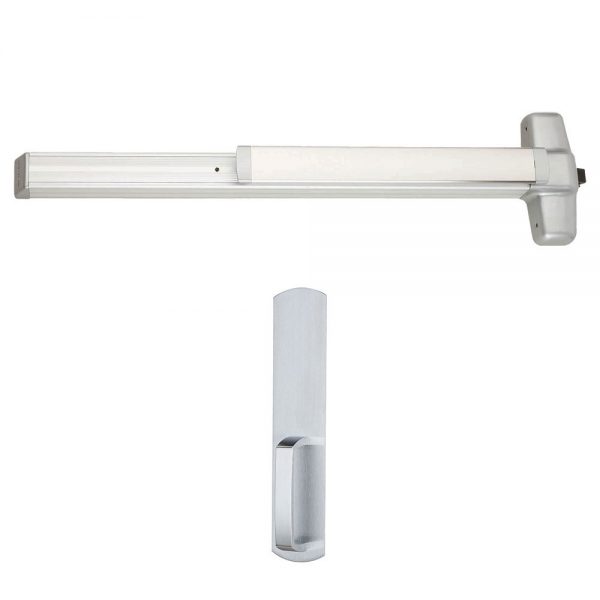

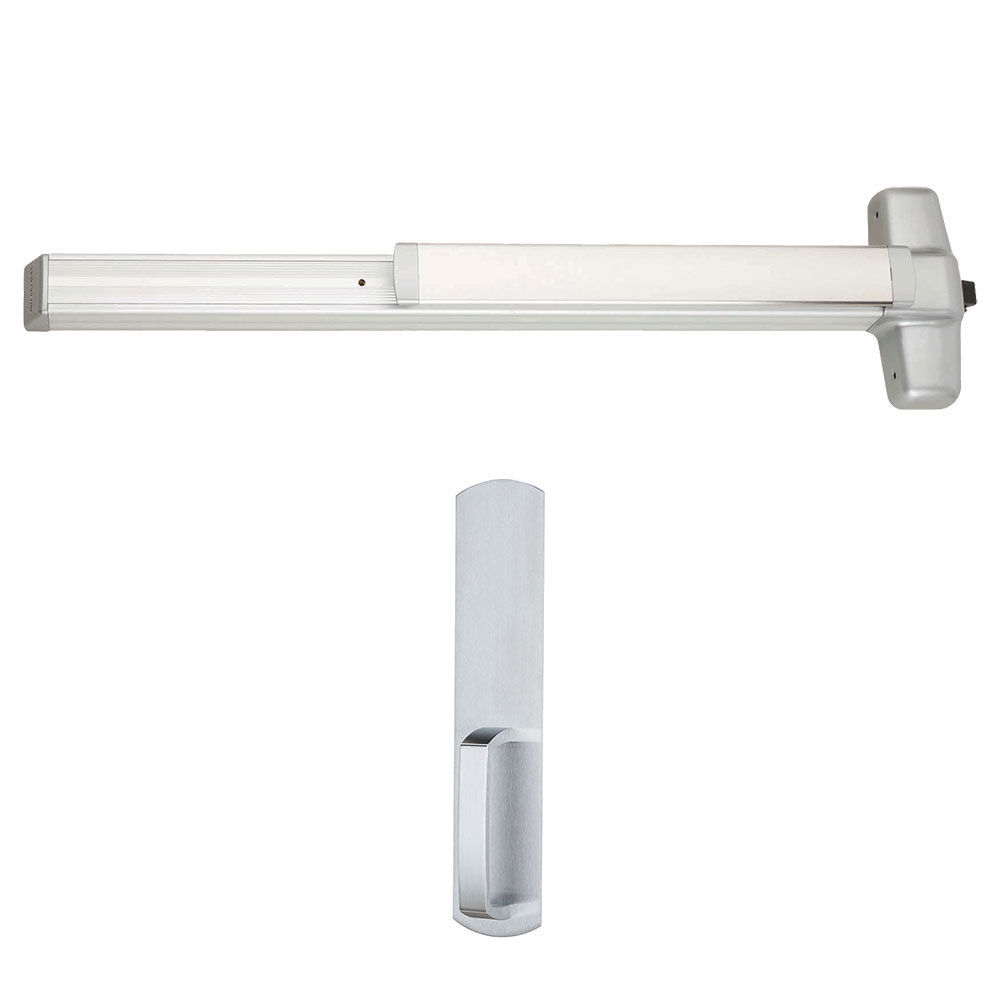

Von Duprin 99DT Grade 1 Rim Exit Device with Dummy Pull, Wide Stile Pushpad, Field Reversible
High-performance, wide stile rim exit device with heavy-duty pull trim for high use and abuse applications
Often regarded as one of the world’s finest panic bar exit device, the 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device.

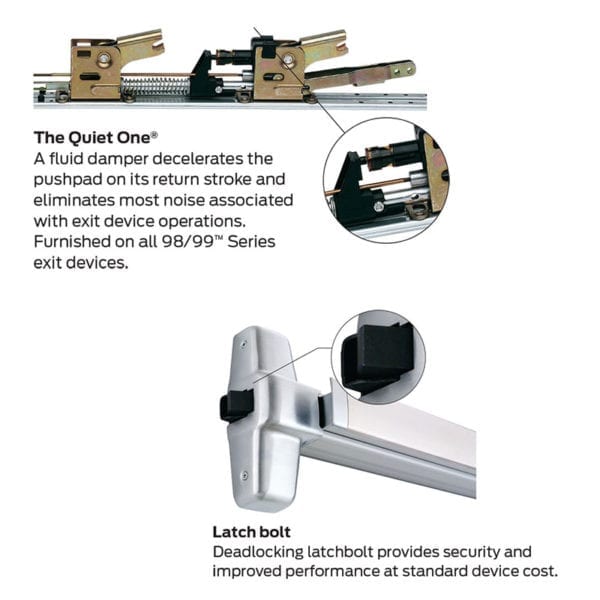

- Deadlocking Latchbolt Standard
- 299 Roller Strike Standard
- Stock Sizes: 3′ and 4′ – Cut to size in field
990DT Dummy Pull Trim
- ANSI Function: 02
- Escutcheon plate size: 3″ x 14-13/16″ x 3/32″
- Projection: 2″
- Pull center to center: 5-1/2″
Brand | |
---|---|
Finishes | 313 Duranodic Dark Bronze, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum |
Length | 3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors) |
Trim | 990DT (Dummy Pull – Pull When Dogged) |
Hand | Non-handed |
ANSI Grade | Certified ANSI A156.3-2001 Grade 1 standards |
Usage | Heavy Duty |
Fire Rating | Non-Fire-Rated |
Latchbolt | Deadlatching, 3/4" throw |
Strike | 299 roller strike standard |
Fasteners | Includes screws for metal and wood doors |
Dogging Feature | Half turn hex dogging standard |
Center Case | 8" x 2-3/4" x 2-3/8" |
Projections | Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16" |
Stile Type | Wide (Standard) |
Door Applications | 1-3/4″ Thick Doors |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
