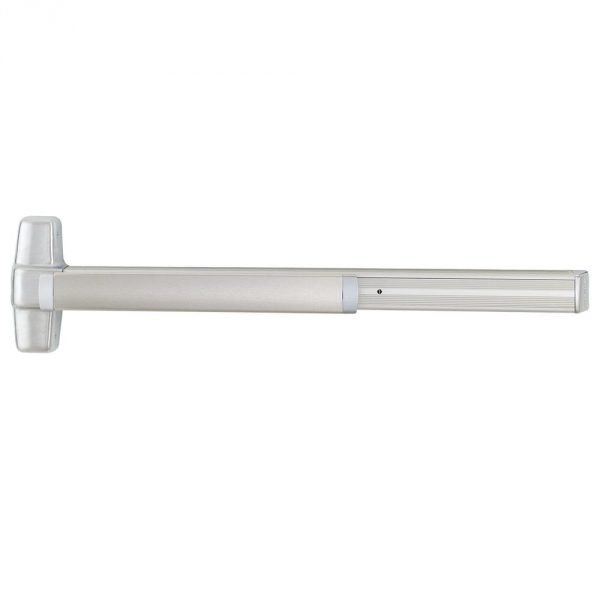

Von Duprin 9949EO/9949EO-F Concealed Vertical Cable Exit Device for Metal Doors

Usually Ships: 10-15 Days
  • Heavy Duty – ANSI/BHMA Grade-1 – Made in USA
  • For use with Hollow Metal Doors
  • Concealed Cables Provide Clean Look

Available Options:

  • Anodized Aluminum
  • Dark Bronze
  • Satin Chrome
Clear

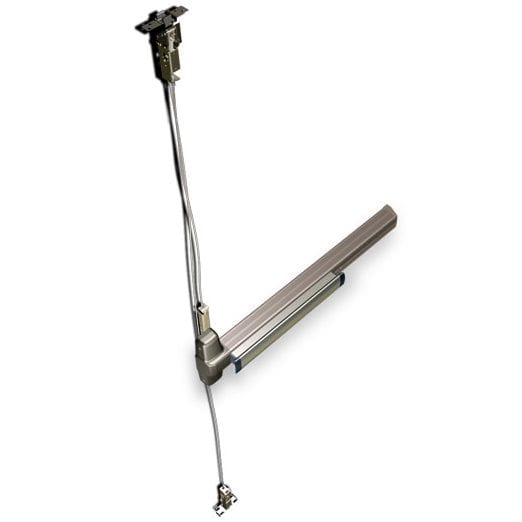

This revolutionary patent-pending concealed vertical cable (CVC) system uses proven cable technology in a whole new way. Giving doors that require a vertical exit device the same strength and security in a system that’s easy to install and maintain. Concealed in the door, the cables and components are protected from use and abuse and provide improved aesthetics.

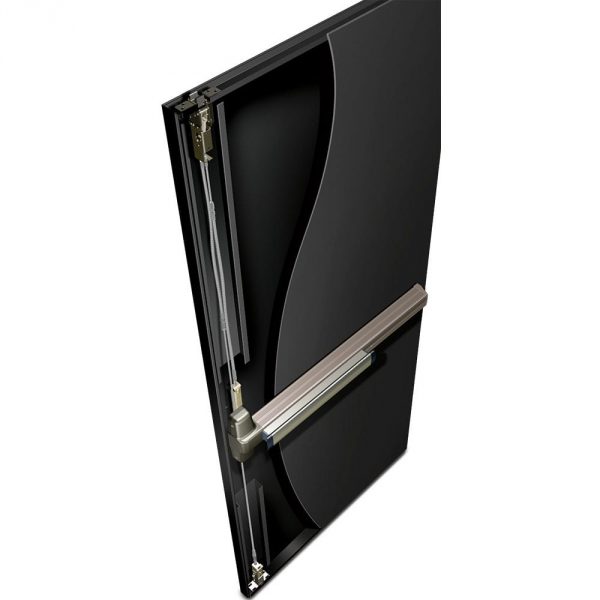

A concealed vertical exit device is the ideal solution for openings requiring enhanced security and streamlined aesthetics – no surface-mounted rods, mullions, or metal wraps are visible.

What makes the Von Duprin concealed vertical cable solutions truly unique is their ability to perform in less than ideal conditions. The flexibility and slack in the cable system allow the device to function properly even if the top latch, device centerline, and bottom latch are not vertically aligned. The concealed vertical system is not as sensitive to changing door conditions and requires significantly less maintenance than a traditional rod over its lifetime. If a simple repair or modification is required, the cable system and latches can be removed and reinstalled by one person without removing the door from the frame.

  • EO = Exit Only, ANSI Function 01 (98/99 Series Outside Trim Sold Separately)
  • For nominal door heights of 6’10” to 8’0″
  • Designed for high use and abuse in commercial and institutional applications

Brand

Length

3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)

Model

9949EO Non-Fire Rated (w/ Dogging Feature), 9949EO-F Fire-Rated (No Dogging)

Device Type

Concealed Cable Device

Nominal Door Opening Height

82" to 96"

ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards

Usage

Heavy Duty

Fire Rating

9949EO: Non-Fire-Rated – 9949EO-F: 90-Minute with doors swinging same direction, 3-Hour for double egress doors

Hand

Non-handed

Trim

None – Exit Only (Outside Trim Sold Separately)

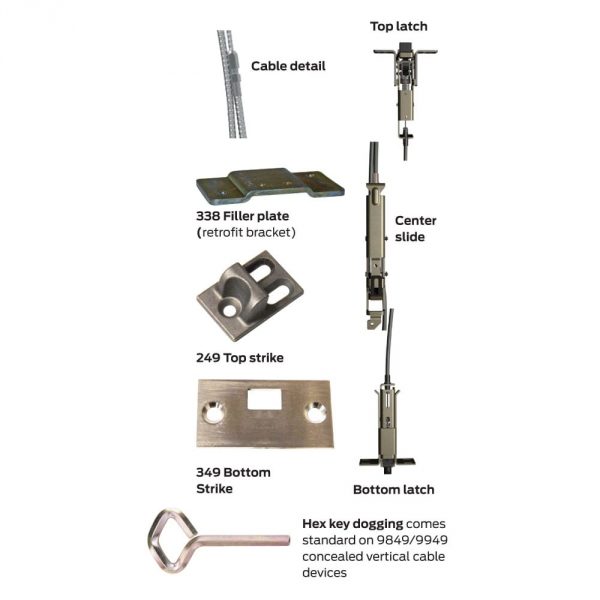

Vertical Cable

7/32" Diameter stainless steel cables

Latchbolt

Deadlocking top and bottom bolt, 1/2" throw

Strike

Top – 249, Bottom – 349

Fasteners

Includes screw pack for 1-3/4" to 2-1/4" thick metal doors

Dogging Feature

Hex key dogging standard on non-fired-rated devices

Stile Type

Wide (Standard)

Center Case

8" x 2-3/4" x 2-3/8"

Mechanism Case

2-1/4" x 2-1/4"

Projections

Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"

Door Applications

1-3/4" to 2-1/4" Thick Metal Doors

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA

Finishes

313 Duranodic Dark Bronze, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
