Von Duprin 9927DT Surface Vertical Rod Exit Device with Dummy Pull

Usually Ships: 1-2 Business Days

Heavy Duty – ANSI/BHMA Grade-1 – Made in USA
ANSI Function 02 (Pull when Dogged)
Includes 990DT Dummy Pull

Available Options:

Finish
Length	Clear

Quantity:

The 99 Series has been certified to the highest industry standards and are used in schools, hospitals, and government buildings. The 99 Series is a high-performance heavy-duty push pad exit device. Von Duprin customers are supported by industry-leading expertise. Allegion’s representatives average more than 15 years of experience, so you’re assured to receive knowledgeable advice on fire and life safety codes, installation resources, and more.

Standard Sizes: 3′ x 7′, 4′ x 7′ (extension rod available for door up to 10’0″)
Designed for high use and abuse in institutional applications

990DT Dummy Pull Trim

ANSI Function: 02 (Push/Pull when dogged down)
Escutcheon plate size: 3″ x 14-13/16″ x 3/32″
Projection: 2″
Pull center to center: 5-1/2″

Brand	Von Duprin
Finishes	313 Duranodic Dark Bronze, US19 (315) Flat Black, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
Length	3'0" (2'4" to 3'0" Doors), 4'0" (3'1" to 4'0" Doors)
Vertical Rods	Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available)
Trim	990DT (Dummy Pull – Pull When Dogged)
Hand	Non-handed
ANSI Grade	Certified ANSI A156.3-2001 Grade 1 standards
Usage	Heavy Duty
Fire Rating	Non Rated
Latchbolt	Deadlocking anti-friction top & bottom bolt, 5/8" throw

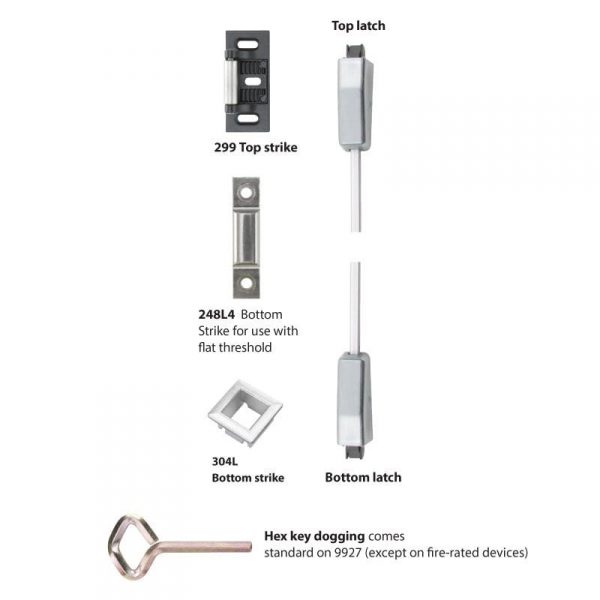

Strikes	299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold
Fasteners	Includes screws for metal and wood doors
Dogging Feature	Half turn hex dogging standard
Projections	Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16"
Center Case	8" x 2-3/4" x 2-3/8"
Stile Type	Wide (Standard)
Device Type	Surface Rod Device
Door Applications	1-3/4″ Thick Doors
Buy American Act Compliance	Meets Buy Amercian Act – Made in USA
