Falcon 25-V-DT Surface Vertical Rod Panic Bar Exit Device with Dummy Pull

Usually Ships: 1-2 Business Days
  • Heavy Duty – ANSI Grade-1 – Made in USA
  • ANSI Function 02 (pull when dogged)
  • Includes 512DT Dummy Pull

Available Options:
Clear

Product Overview

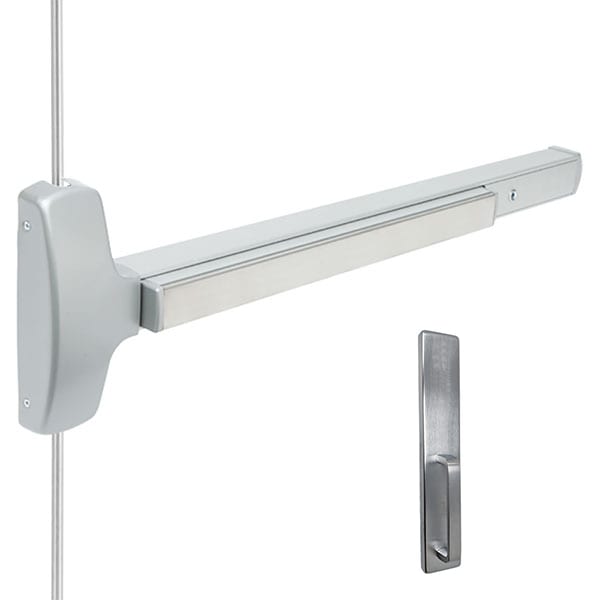

Falcon 25-V-DT Surface Vertical Rod Exit Device with Dummy Pull

High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 25-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The sleek touch bar design ensures an attractive installation. Offices, banks, assisted living facilities, retail stores, and other commercial buildings have constant traffic, so door hardware must be able to take continual use and abuse.

No exposed screws or rivets on the back of the device for a streamlined design and clean lines – when installed on full glass doors.

  • Deadlocking Top Latch Standard
  • All mounting screws are concealed, sheet metal screws and machine screws standard
  • 2-3/4″ maximum projection, 2″ dogged
  • Stock Sizes: 3′ x 7′ and 4′ x 7′

512DT Dummy Pull Trim

  • ANSI Function: 02
  • Escutcheon plate size: 16″ x 2-3/4″ x 3/32″
  • Projection: 2-11/16″
  • Pull center to center: 6-1/2″

Brand

Length

3'0" (2'8" to 3'0" Doors), 4'0" (3'4" to 4'0" Doors)
Trim

512DT
Handing

Completely Reversible
ANSI Function

F02
ANSI Grade

Certified ANSI A156.3-2001 Grade 1 standards
Usage

Heavy Duty
Projections

2-3/4" maximum, 2" dogged
Vertical Rods

Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (extension rod available for doors up to 10'0")
Dogging Feature

Half turn hex dogging standard
Strikes

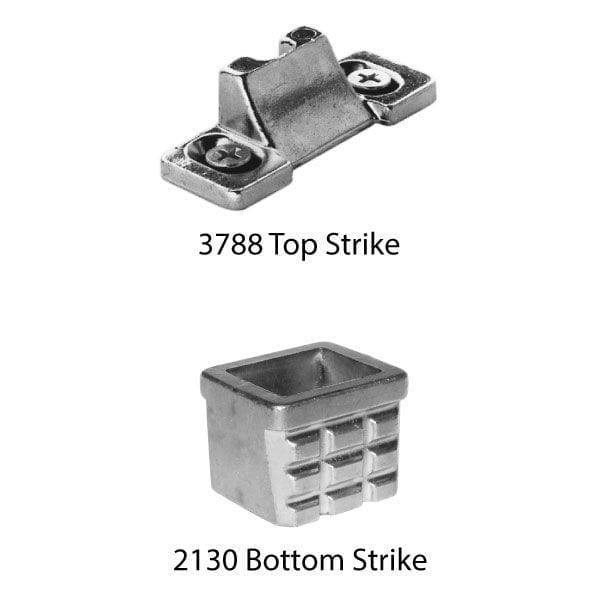

3788 Top Strike is Surface Applied – 2130 Bottom Strike is Mortised into Floor
Latchbolt

Top Stainless Steel 3/4" throw. Bottom Bolt, 1/2" Throw
Stile Type

Wide (Standard)
Minimum Stile Width

3-1/2"
Device Type

Surface Rod Device
Door Applications

1-3/4″ Thick Metal or Wood Doors
Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
Finishes

313AN Anodized Dark Bronze, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum
