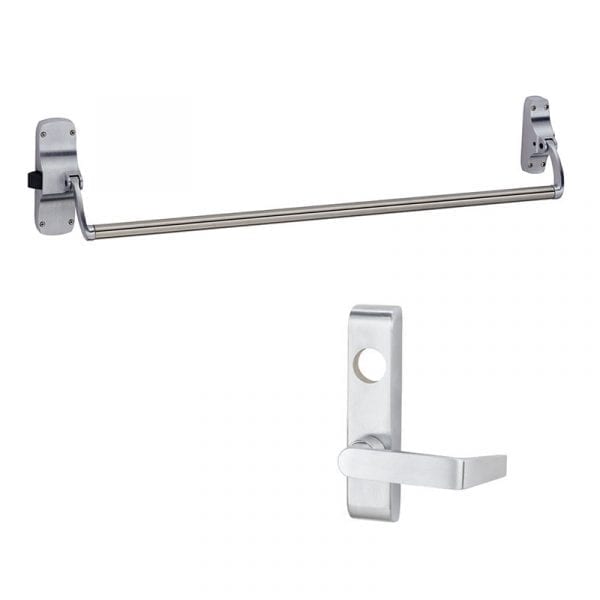

Von Duprin 88L Rim Panic Exit Device with Lever

Usually Ships: 10-20 Days
  • Heavy Duty-Grade-1 – ANSI/BHMA Certified
  • Classic Crossbar Design – 42″ – field sizeable
  • Includes 373L Lever (Key Locks & Unlocks Lever)

Available Options:

Clear

The 88 Series are exit device crossbars with a classic design. The 88 Series is a standard device for applications where a crossbar is preferred and is ANSI/BHMA A156.3, 2008 Grade 1 certified.

  • US26D Satin Chrome Finish
  • Crossbar length: 42″ field sizeable
  • Device centerline: 39-13/16″
  • Crossbar centerline to finished floor: 36-13/16″ at center
  • Lock stile case: 8-1/4″ X 2-3/4″ x 15/16″
  • Hinge stile case: 6″ X 1-3/4″ x 15/16″
  • Crossbar tubing: 1″ (25 mm) outside diameter
  • Projection: Neutral – 4-3/4″ – Depressed – 4″

373L Lever Trim

  • ANSI Function: 08
  • Base Size: 7-1/2″ x 1-11/16″ x 7/8″
  • Projection: 2-5/8″
  • Standard 06 Lever Design
  • Handed – LHR or RHR
  • Cylinder Type: 1-1/4″ Mortise Cylinder (Sold Separately)
  • US26D Satin Chrome Finish

Brand

Finishes

US26D (626) Satin Chrome

Usage

Heavy Duty

Length

42"

Trim

373L (Entry Lever)

Cylinder

1-1/4" Mortise Cylinder (sold separately)

Handing

Handed (LHR – Left Hand Reverse or RHR – Right Hand Reverse)

Strike

299 roller strike standard

Dogging Feature

Half turn hex dogging standard

Latchbolt

3/4" throw

Stile Type

Wide (Standard)

Buy American Act Compliance

Meets Buy Amercian Act – Made in USA
