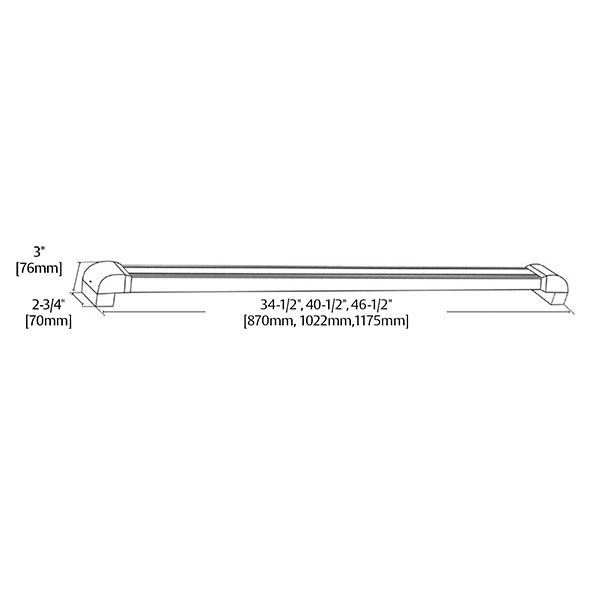

Securitron TSB Touch Sense Electrified Exit Bar

Securitron TSB Touch Sense Egress Bar

The TSB Touch Sense Bar provides touch-triggered release of magnetically locked, non-fire-rated doors.

The TSB Touch Sense Bar provides touch-triggered release of magnetically locked, non-fire-rated doors. Touching the bar, even through light gloves or clothing, triggers an electronic sensor that releases the lock. For indoor use only, the TSB installs easily on all types of metal, aluminum or wood frame doors. Meets “no special tools or knowledge” criteria in code requirements.

Standard Features

• Can be field cut to accommodate non-standard openings up to 48″
• Activates a 2A DPST rated relay when touched (no mechanical movement) which will allow free egress, or initiates the delay on an exit delay timer
• Backup push button included
• 16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included
• Available ElectroLynx® ready
• MagnaCare® lifetime replacement, no fault, no questions asked warranty

Optional Features

• EL ElectroLynx® connectors
• Trailing edge timer

Certifications

• ANSI/UL 294 Listed
• CSA-C22.2 No. 205 Listed
• CSFM—California State Fire Marshal Approved
• CE: EN 50091-1, EN 61000-6-2 Approved

Electrical

• 40 mA at rest; 25 mA releasing at 12 VDC or 24 VDC

Operating Temperature

• +32 to +110F [0 to +43C]
• Indoor use
