Product Overview
Von Duprin 7827EO Grade 1 Surface Vertical Rod Exit Bar, Wide Stile Pushpad, Panic Device, 84″ Door Height, Exit Only, Less Trim, Hex Key Dogging
Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 70 Series exit devices provide reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces.
7827 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/ BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Vertical rod and latch guards are available to protect the bottom rod of the exit device from damage by impacts of carts or gurneys passing through doors.
- EO = Exit Only, ANSI Function 01 (78 Series Outside Trim Sold Separately)
- Standard Sizes: 3′ x 7′ (2′ 4″ to 3′ door width), 4′ x 7′ (2′ 10″ to 4′ door width)
- Extension rod available for door up to 10’0″ (see part #051810)
- ANSI/BHMA Certified, Grade-1
- UL listed for panic exit hardware
Brand | |
---|---|
Finishes | 313 Duranodic Dark Bronze, 643e Aged Bronze, US3 (605) Bright Brass, US4 (606) Satin Brass, US10 (612) Satin Bronze, US15 (619) Satin Nickel, US19 (315) Flat Black, US26 (625) Bright Chrome, US26D (626) Satin Chrome, US28 (628) Anodized Aluminum, US32D (630) Satin Stainless Steel |
Device Type | Surface Rod Device |
ANSI/BHMA Standard | ANSI/BHMA A156.3 2014, Grade 1 Certified |
Usage | Heavy Duty |
Fire Rating | Non-Fire-Rated |
Vertical Rods | Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available) |
Hand | Field Reversible |
Latchbolt | Deadlocking anti-friction top & bottom bolt, 5/8" throw |

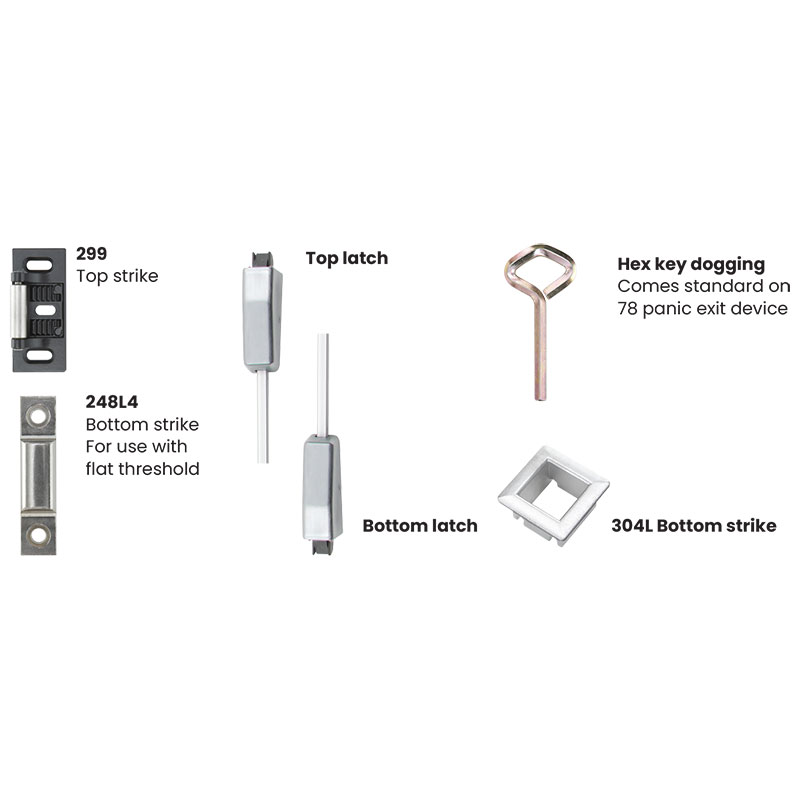

Strikes | 299 Top Strike, 304L Bottom Strike – 248L4 Bottom strike for use with flat threshold |
Dogging Feature | Half turn hex dogging standard |
Stile Type | Wide (Standard) |
Center Case | 7-7/8" x 2-3/4" x 2-3/8" |
Projections | Pushbar Neutral – 3-13/16" – Pushbar Depressed – 3-1/16" |
Fasteners | Includes screws for metal and wood doors |
Door Applications | 1-3/4″ Thick Doors |
Warranty | 3 Year |
Buy American Act Compliance | Meets Buy Amercian Act – Made in USA |
